Ubiquiti Networks UISP Fiber XG-PON CPE

(0)No Reviews yet
  • SKU: UISP-FIBER-XG
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Installation Guide:Download
445 in stock
College Station
445 In stock

Product Information

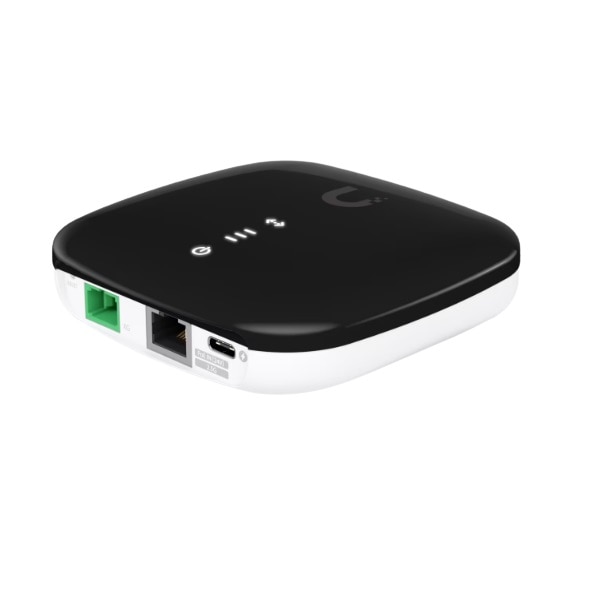

Ubiquiti Networks UISP-FIBER-XG

UISP Fiber XG-PON CPE

An optical network unit that can deliver 2.5Gbps uplink/10Gbps downlink speeds over distances up to 20 km.

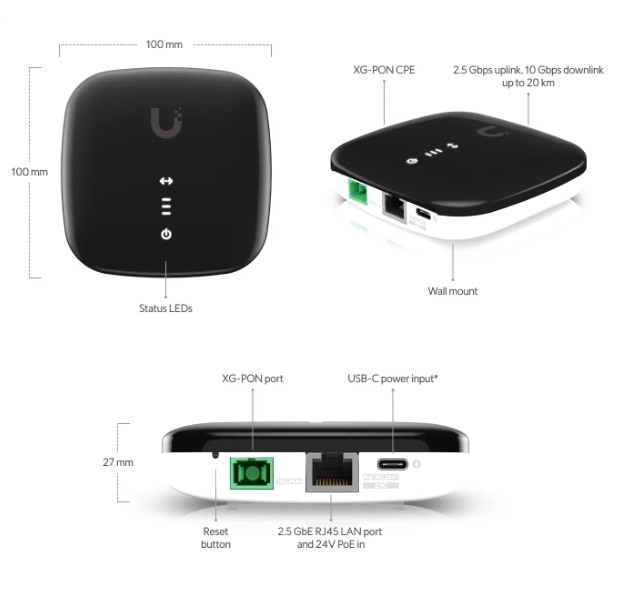

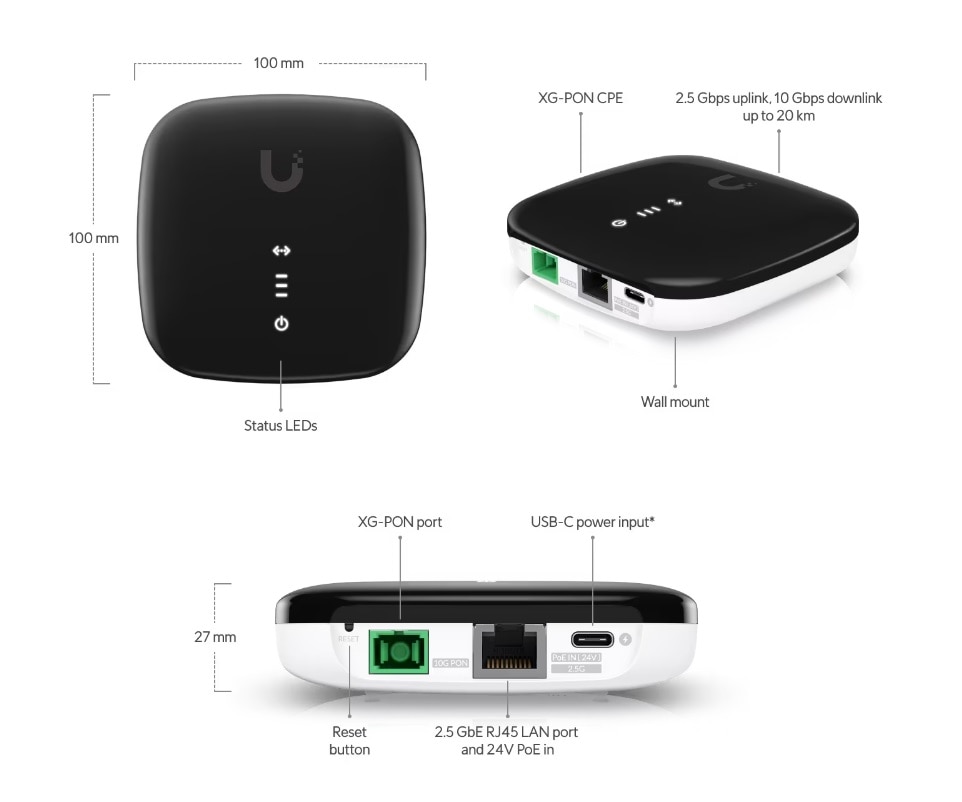

Features:

  • (1) XG-PON port
  • (1) 2.5GbE RJ45 LAN port and 24V PoE in

Specifications

Specifications UISP-FIBER-XG

Dimensions100 x 100 x 27 mm (3.9 x 3.9 x 1.1")
Weight220 g (0.49 lb)
Enclosure materialUV-stabilized polycarbonate
Hardware
Networking interface(1) SC/APC, ITU-G.987 XGPON WAN port (1) 100/1,000/2,500 MbE RJ45 LAN ports
Management interfaceEthernet in-band PON
PoE interface(1) PoE in, 24V DC passive PoE
Memory256 MB DDR
Onboard flash storage32 MB NOR
Max. power consumption6W
Power methodUSB-C 5V DC, 3A 24V DC passive PoE
Power supply5V DC, 3A power adapter Passive PoE 2-pair (4, 5+; 7, 8-)
Supported voltage range5V DC adapter 10–30V DC passive PoE
Total non-blocking line rateDownstream: 9.95 Gbit/s Upstream: 2.44 Gbit/s
Normal TX range of optical module2 to 7dBm
Normal RX range of optical module-9 to -27dBm
Button(1) Factory reset
Operating temperature-15 to 45° C (5 to 113° F)
Operating humidity10 to 95% non-condensing
CertificationsCE, FCC, IC
Fiber
Operating wavelengthTX: 1,270nm RX: 1,577nm
Line codeScrambled NRZ
Physical reach20 km
LEDs
PowerWhite: ON
EthernetSteady white: link up Blinking white: activity OFF: link down
PON status(3) signal LEDs
All-OFF: bootup
1x orange: signal too low (< -27 dbm)
1x white: signal low (>= -27 dbm)
2x white: signal good (>= -24 dbm)
3x white: signal strong (>= -12 dbm)
1x orange + 2x white: signal too strong (>= -9 dbm)
3x orange: no signal
LEDs alternate between orange + white + orange and a signal strength indicator: no authority
