Ubiquiti 2.5 GbE PoE UISP Switch Plus
US$399.00
- SKU: UISP-S-PLUS
- Manufacturer: Ubiquiti Networks
- Spec Sheet:Download
Product Information
Ubiquiti Networks UISP-S-PLUS
2.5 GbE PoE UISP Switch Plus
The UISP Switch Plus is a high-performance networking switch featuring a dual-core ARMv8 Cortex-A55 processor at 1.4 GHz and 1 GB DDR4 memory. It includes four 1/2.5 GbE RJ45 LAN ports and four 1/10G SFP+ ports. It offers a total non-blocking throughput of 50 Gbps and a switching capacity of 100 Gbps.
This UISP-S-Plus also supports PoE with a total available power of 160W and a maximum passive PoE wattage per port of 40W in 4-pair mode. Additionally, it features system status LEDs, RJ45 data ports for PoE, speed/link/activity, and SFP+ data ports for link/activity.
Features:

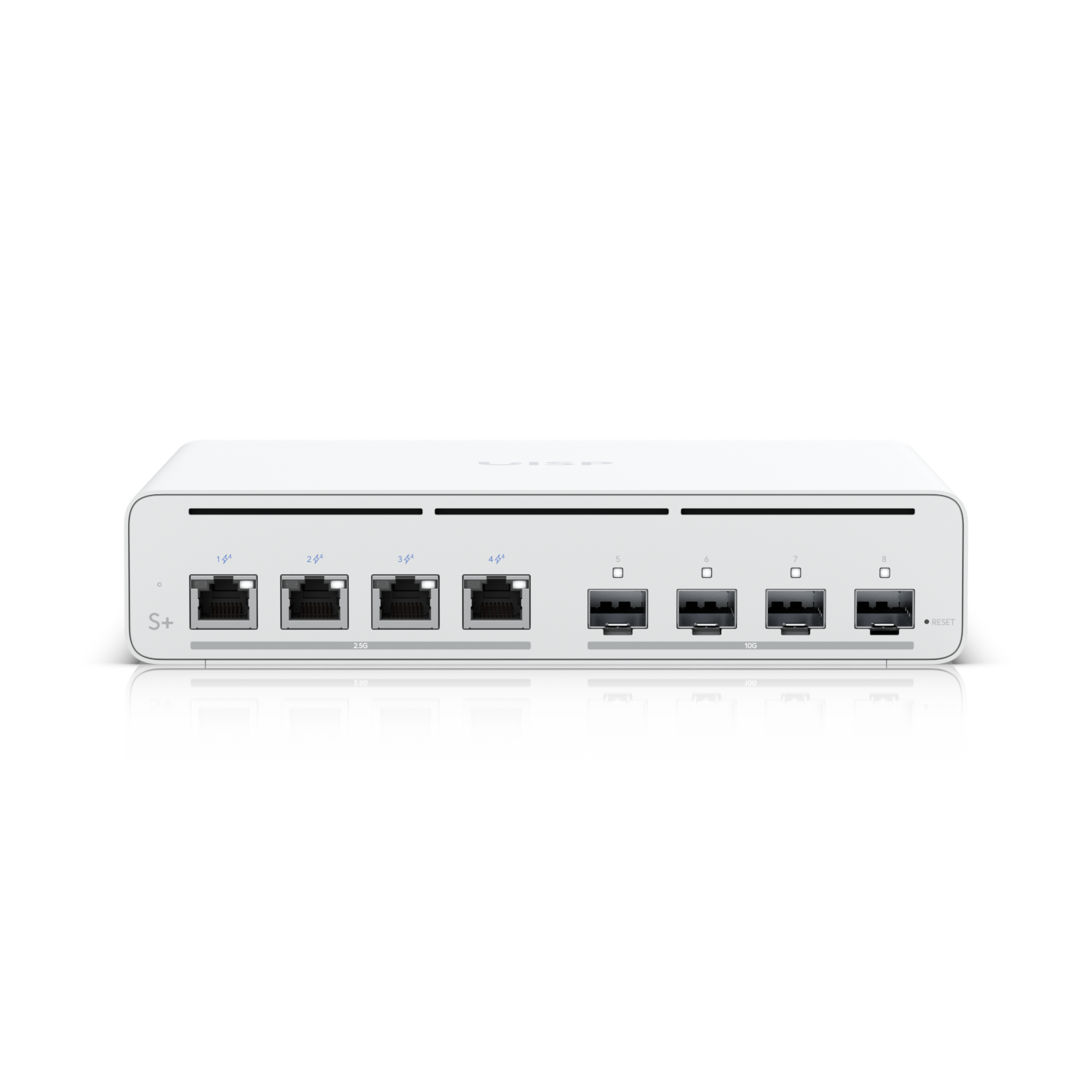

- (4) 2.5 GbE RJ45 ports with 27V passive PoE output
- (4) 10G SFP+ ports
- 160W (27V) total PoE availability*, 20W/port (2-pair) / 40W/port (4-pair)
- Port isolation, speed limiting, and DHCP snooping functionality

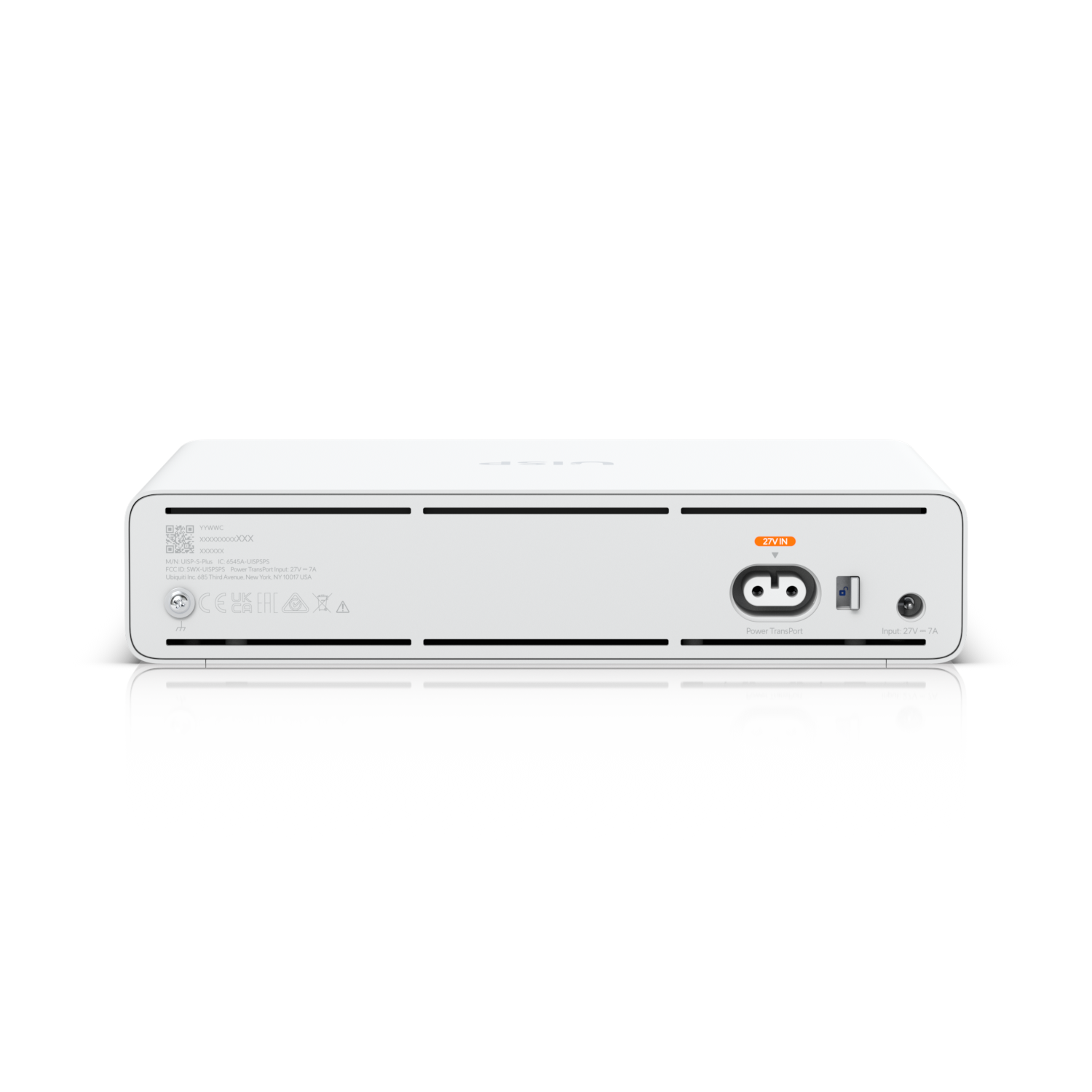

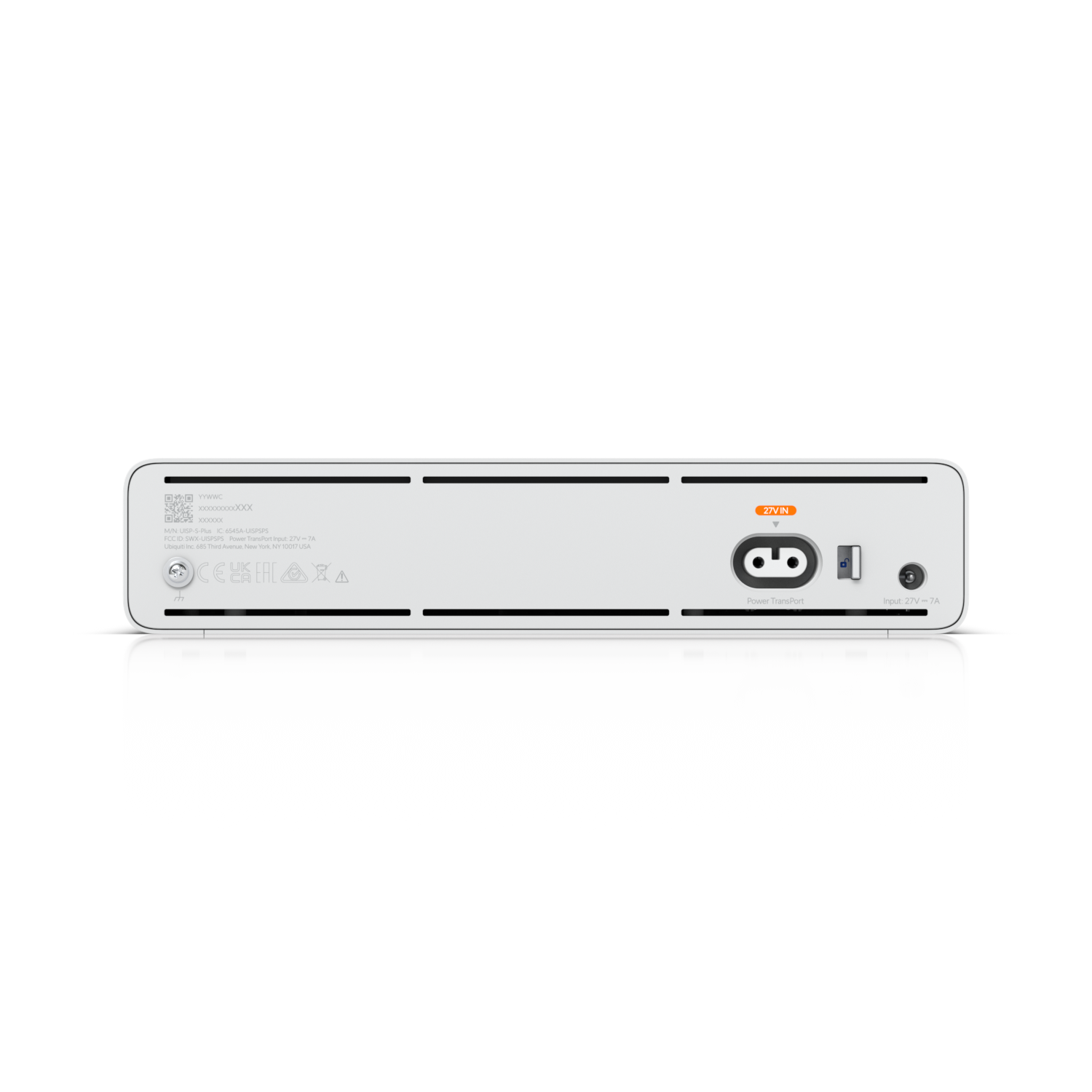

- (1) Power TransPort™ input for DC redundancy
- Desk, wall, 1U rack, and outdoor** mounting
- Standalone management through local web interface and UISP Application integration
Specifications
Specifications

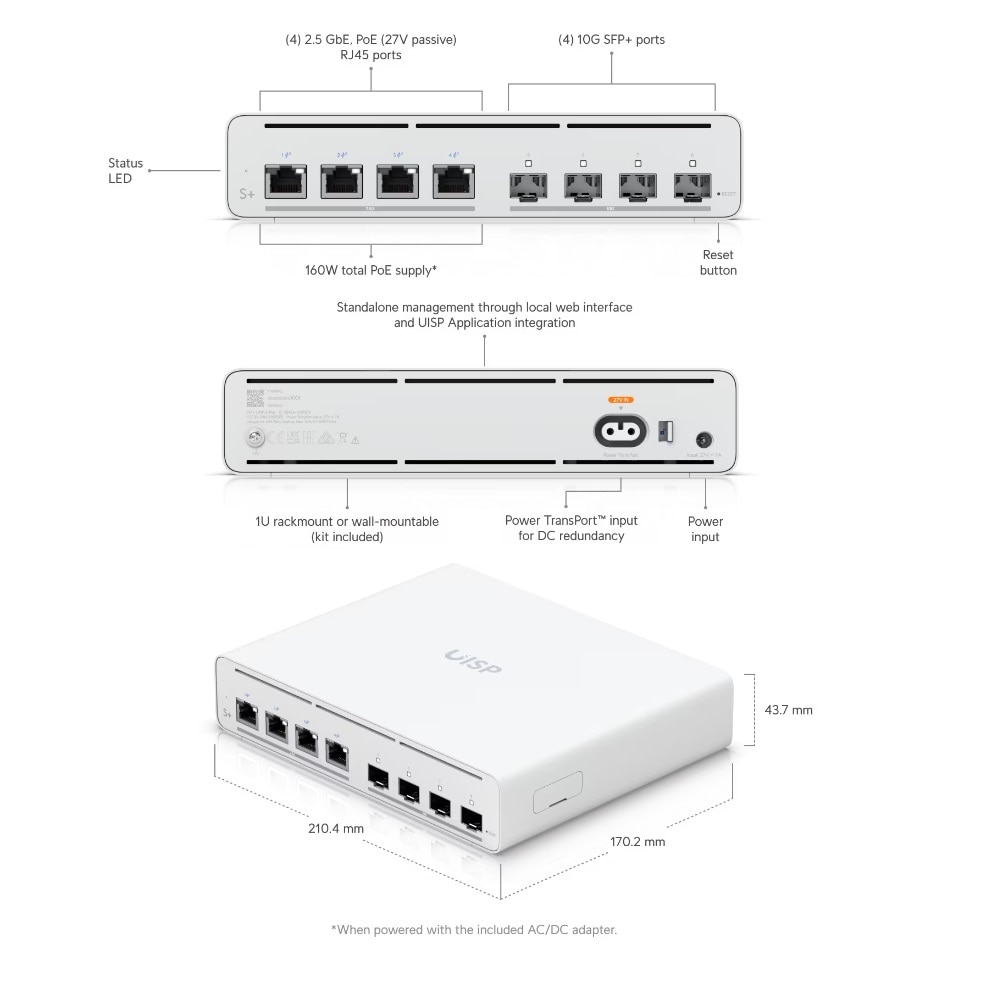

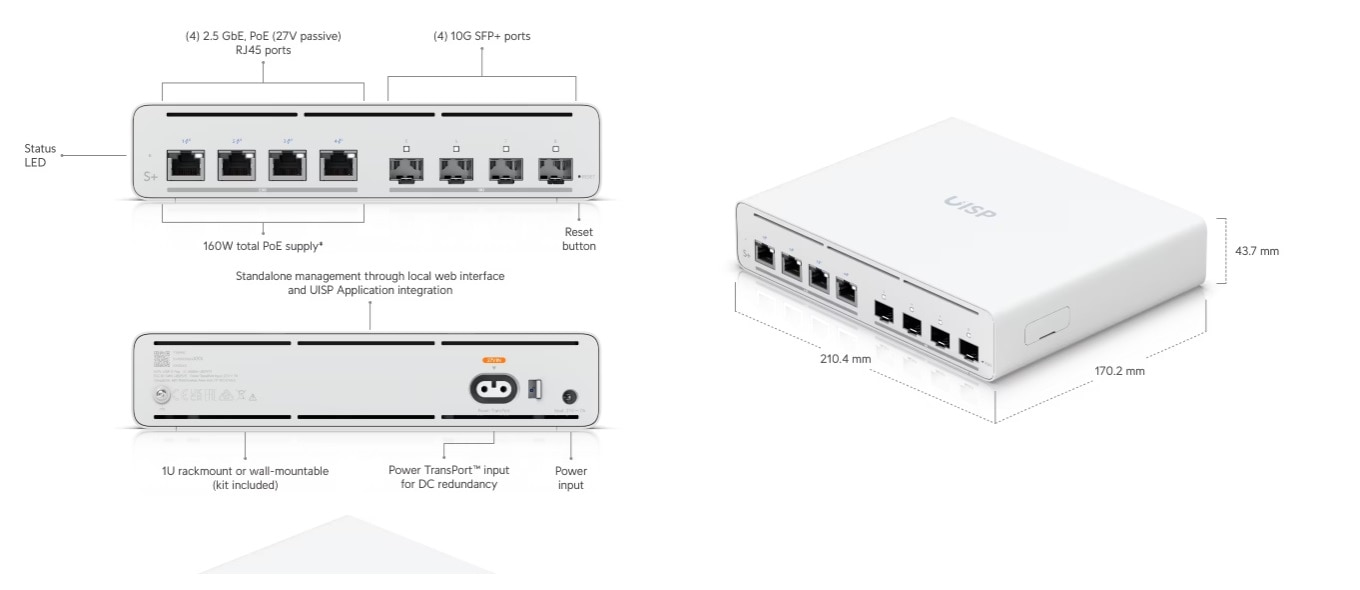

| Dimensions | 210.4 x 170.2 x 43.7 mm (8.3 x 6.7 x 1.7") |
| Weight | 1.75 kg (3.9 lb) |
| Enclosure materials | SGCC steel, polycarbonate/acrylonitrile butadiene styrene |
| Hardware | |
| Processor | Dual-core ARM®v8 Cortex®-A55 at 1.4 GHz |
| Memory | 1 GB DDR4 |
| Onboard flash storage | 256 MB NAND |
| Networking interface | (4) 1/2.5 GbE RJ45 LAN ports (4) 1/10G SFP+ ports |
| Management interface | Ethernet In-band Bluetooth |
| Total non-blocking throughput | 50 Gbps |
| Switching capacity | 100 Gbps |
| Forwarding rate | 74.4 Mpps |
| Power method | (1) External AC/DC adapter (1) Power TransPort DC input 27V DC, 7.04A |
| Power supply | 27V DC, 7.04A power adapter (included) |
| Supported voltage range | 24–28V DC |
| Max. power consumption | 25W (Excluding PoE output.) |
| ESD/EMP protection | Air: ± 15 kV, contact: ± 8 kV |
| Operating temperature | -10 to 50° C (14 to 122° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| PoE interface | (4) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 4 |
| Total available PoE | 160W (With included power adapter.) |
| Max. passive PoE wattage per port | 2-pair mode: 20W/27V DC 4-pair mode: 40W/27V DC |
| Passive PoE voltage range | 27V DC |
| LEDs | |
| System | Status |
| RJ45 data ports | PoE Speed/link/activity |
| SFP+ data ports | Link/activity |
| Software | |
| Management application | UISP |
