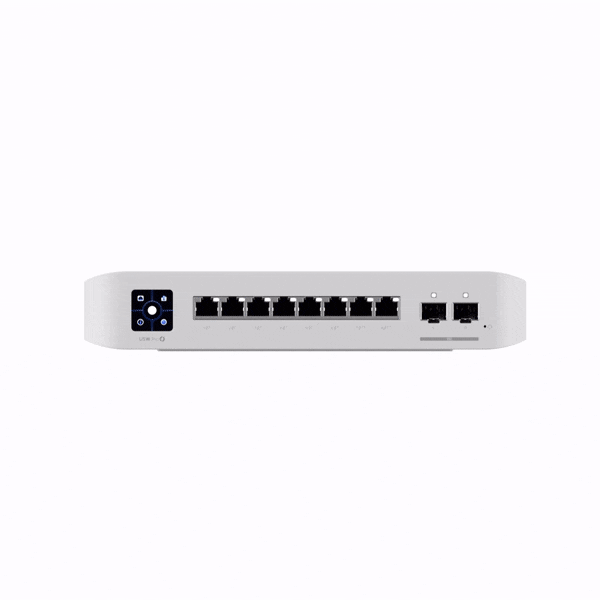

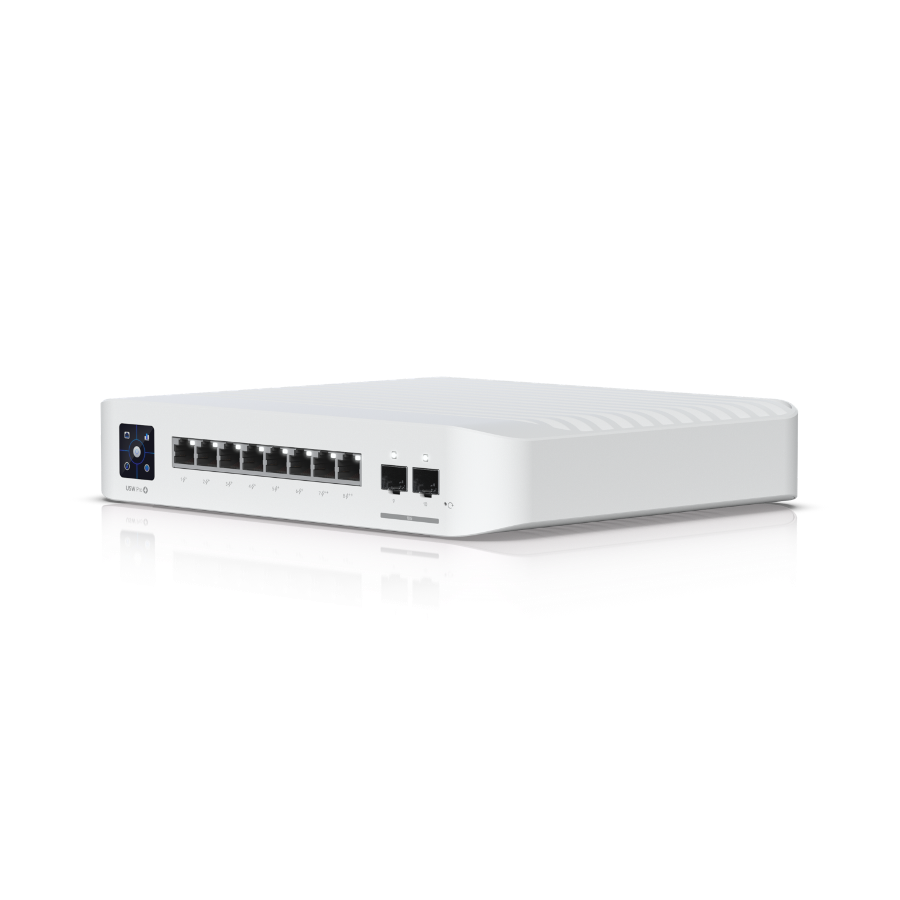

Ubiquiti UniFi Switch Pro 8-port L3 Managed PoE++ Switch (120W)
- SKU: USW-Pro-8-PoE
- Manufacturer: Ubiquiti Networks
- Spec Sheet:Download
Product Information
Ubiquiti Networks USW-Pro-8-PoE
UniFi Switch Pro 8-port L3 Managed PoE++ Switch (120W)
The Ubiquiti UniFi USW-Pro-8-POE is a configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. In addition to 6 LAN ports with PoE+ and 2 LAN ports with PoE++, the switch offers 2 SFP+ ports for 10Gbps uplinking over fiber optic. Can be managed via UniFi Controller software.
This switch provides connected network equipment in addition to a data connection, also 802.3at PoE+ via 6 LAN ports and 802.3bt PoE++ via 2 LAN ports. For example, connect access points, IP cameras and VoIP telephones to the managed 8-port switch and provide these devices with power and data at the same time. In addition to the 8 Ethernet ports, the switch has 2 SFP+ ports with 10Gbps uplinking.
Ubiquiti UniFi Network Controller software
With Ubiquiti UniFi Network Controller software you can easily manage and configure the USW-Pro-8-POE switch. For example, read the status per port or set any VLANs. The software also makes it possible to access multiple switches, so you can manage switches from different locations from one central point. The devices are clearly displayed and you can perform software updates or adjust configurations. You don't have to pay anything for the UniFi Controller software and no licenses are required.
Features:

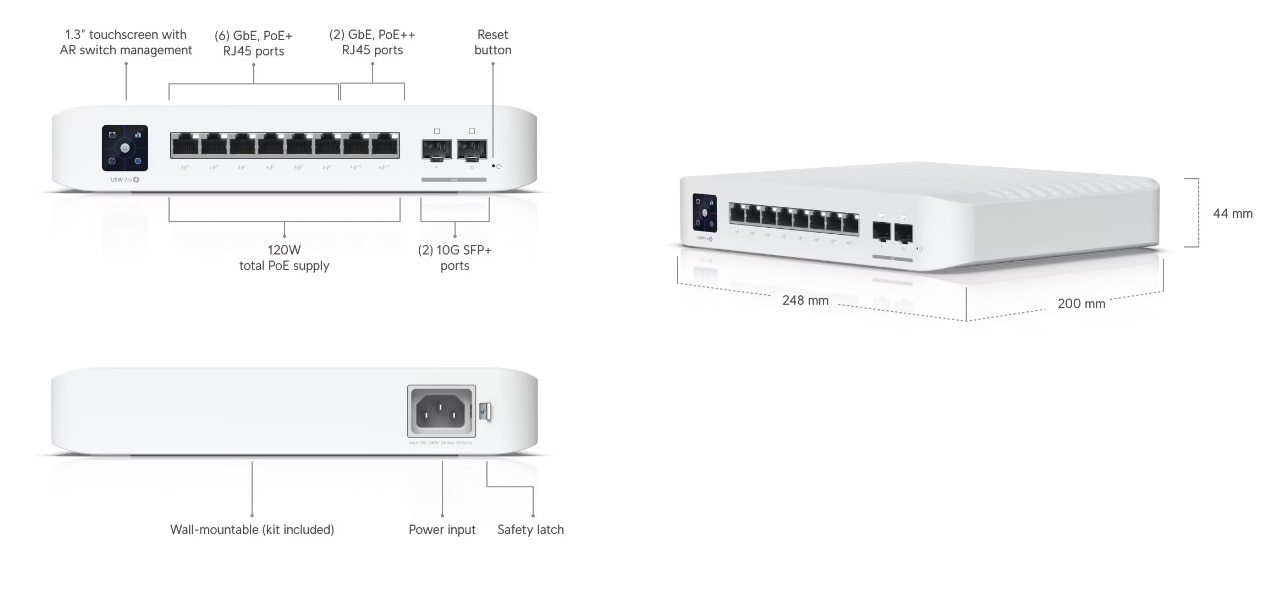

- An 8-port, Layer 3 switch with PoE+ and PoE++ output.
- (6) GbE PoE+ ports
- (2) GbE PoE++ ports
- (2) 10G SFP+ ports
- 120W total PoE availability
- Managed switch, management via UniFi Network Controller
- Total PoE budget: 120W
- Switching capacity: 56 Gbps
- 1.3 " LCM touchscreen
- Layer 3 functions
Note: Managed with UniFi Network Application version 7.5.176 and later.
Specifications
Specifications
| Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure materials | Plastic, metal |
| Mount material | Plastic |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (8) GbE RJ45 ports (2) 10 Gbps SFP+ ports |
| PoE interface | (6) PoE/PoE+ (Pins 1, 2+; 3, 6-) (2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 28 Gbps |
| Switching capacity | 56 Gbps |
| Power method | Universal input, 100—240V AC, max. 2A |
| Power supply | AC/DC, internal |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 30W (Excluding PoE output) |
| Total available PoE | 120W |
| Max. PoE wattage per port by PSE | PoE: 15W PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V PoE++: 50—57V |
| LCM display | (1) 1.3" touchscreen |
| LEDs | RJ45 ports: link/activity |
| Button | Factory reset |
| Operating temperature | -5 to 45° C (23 to 113° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Application Requirements | |
| UniFi Network | Version 7.5.176 and later |
