Ubiquiti Networks 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ Output
US$1,299.00
- SKU: USW-Pro-Max-48-POE
- Manufacturer: Ubiquiti Networks
Product Information

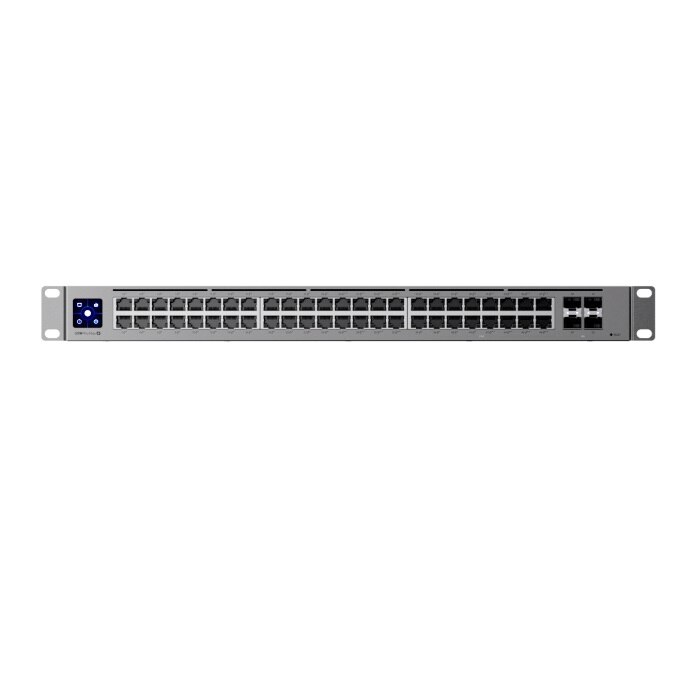

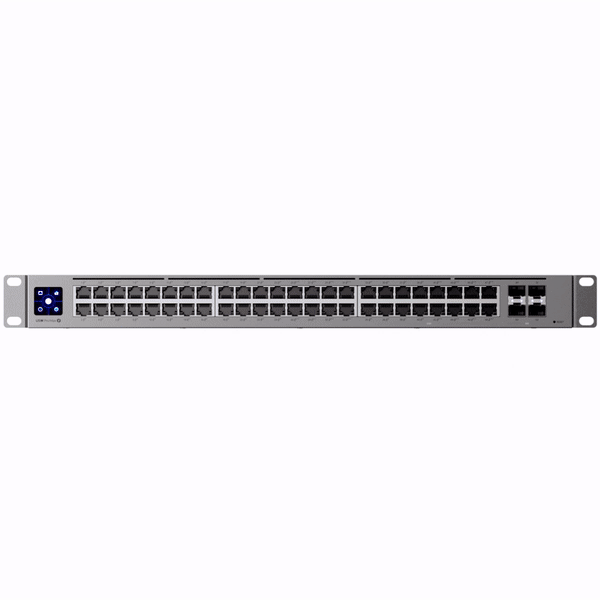

Ubiquiti Networks USW-Pro-Max-48-POE
A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
Features:

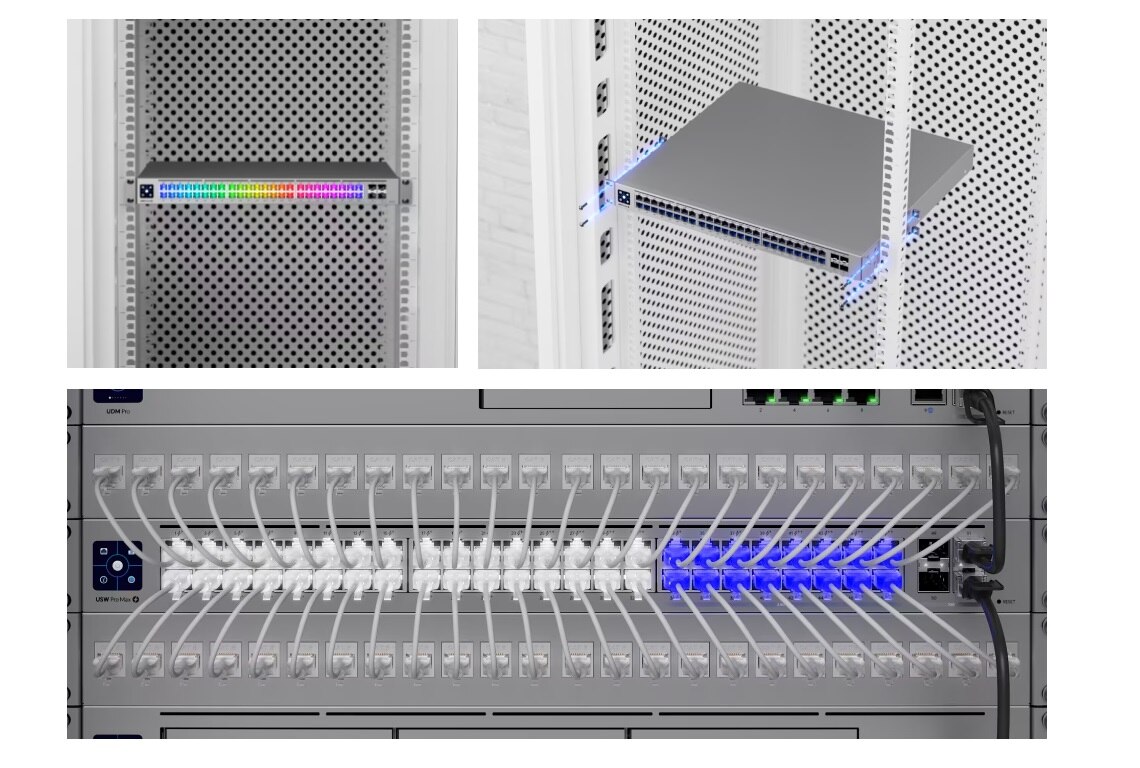

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
- (32) GbE ports including (24) PoE+ and (8) PoE++
- (4) 10G SFP+ ports
- DC power backup ready
- 720W total PoE availability
- Managed with UniFi Network 8.0.24 and later
- *Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Specifications
Specifications

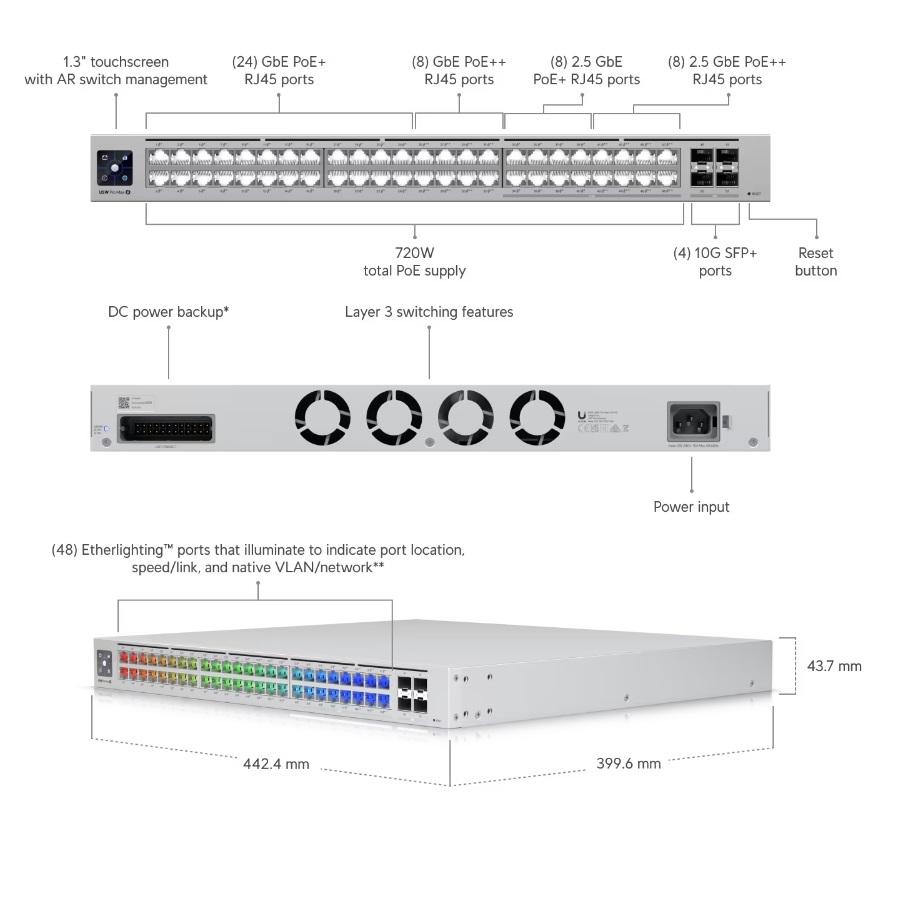

| Dimensions | 442.4 x 399.6 x 43.7 mm (17.4 x 15.7 x 1.7") |
| Weight | Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (32) GbE RJ45 ports (16) 1/2.5 GbE RJ45 ports (4) 10G SFP+ ports |
| PoE interface | (32) PoE/PoE+ (Pins 1, 2+; 3, 6-) (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 112 Gbps |
| Switching capacity | 224 Gbps |
| Power method | Universal input, 100—240V AC, 50/60 Hz USP RPS DC input |
| Power supply | AC/DC, internal, 820W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 100W (Excluding PoE output) |
| Total available PoE | 720W |
| Max. PoE wattage per port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Etherlighting™ | |
| Ethernet | Locating Speed/link Native VLAN/network |
| SFP+ | Locating Speed/link Native VLAN/network |
| System | Status |
| RPS | Status |
| Application Requirements | |
| UniFi Network | Version 8.0.24 and later |
