Ubiquiti Indoor/Outdoor 4K PoE Camera with 17 or 45 mm Lens
US$2,499.00
- SKU: UVC-AI-DSLR
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information

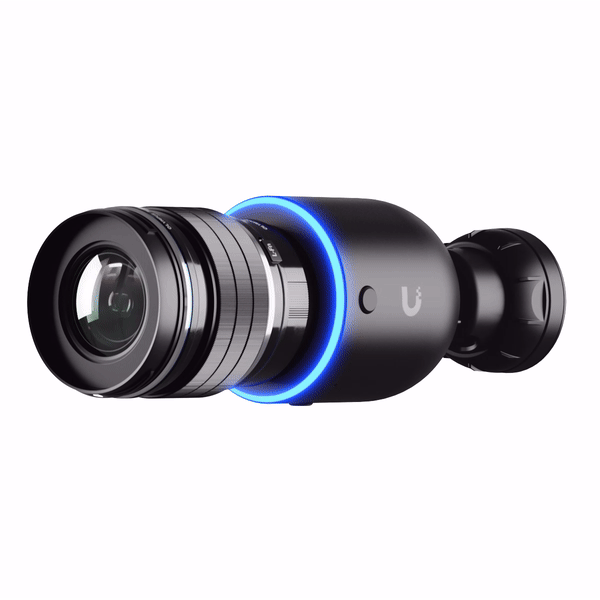

Ubiquiti Networks UVC-AI-DSLR
Indoor/Outdoor 4K PoE Camera with 17 or 45 mm Lens
Features:
- 4K (8MP) video resolution
- High-sensitivity imaging sensor
- Wide aperture M4/3 f/1.2 prime lens included
- Advanced AI: Detect people, read license plates, and more
- Integrated 2-way audio*
- Connect and power using PoE+
- Weatherproof (outdoor exposed)
Specifications
Specifications

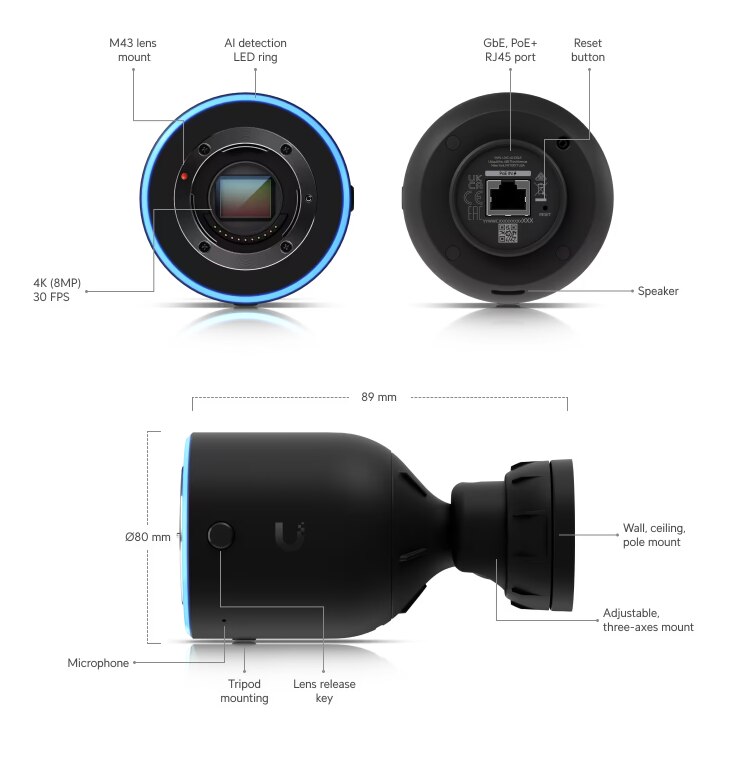

| Dimensions | Without mount: Ø80 x 89 mm (Ø3.1 x 3.5") With mount: Ø80 x 153 mm (Ø3.1 x 6") M. Zuiko Digital ED 17 mm f/1.2 PRO (UVC-AI-DSLR): Ø68.2 x 87 mm (Ø2.7 x 3.4") M. Zuiko Digital ED 45 mm f/1.2 PRO (UVC-AI-DSLR-LD): Ø70 x 84.9 mm (Ø2.8 x 3.3") Outdoor case: Ø91.6 x 196.3 mm (Ø3.6 x 7.7") |
| Weight | Without mount: 660 g (1.5 lb) With mount: 820 g (1.8 lb) M. Zuiko Digital ED 17 mm f/1.2 PRO (UVC-AI-DSLR): 390 g (0.86 lb) M. Zuiko Digital ED 45 mm f/1.2 PRO (UVC-AI-DSLR-LD): 410 g (0.9 lb) Outdoor case: 510 g (1.1 lb) |
| Enclosure material | Aluminum alloy |
| Mount materials | Wall mount: aluminum alloy Pole mount: aluminum alloy |
| Weatherproofing | IPX5 (With the outdoor case) |
| Optics | |

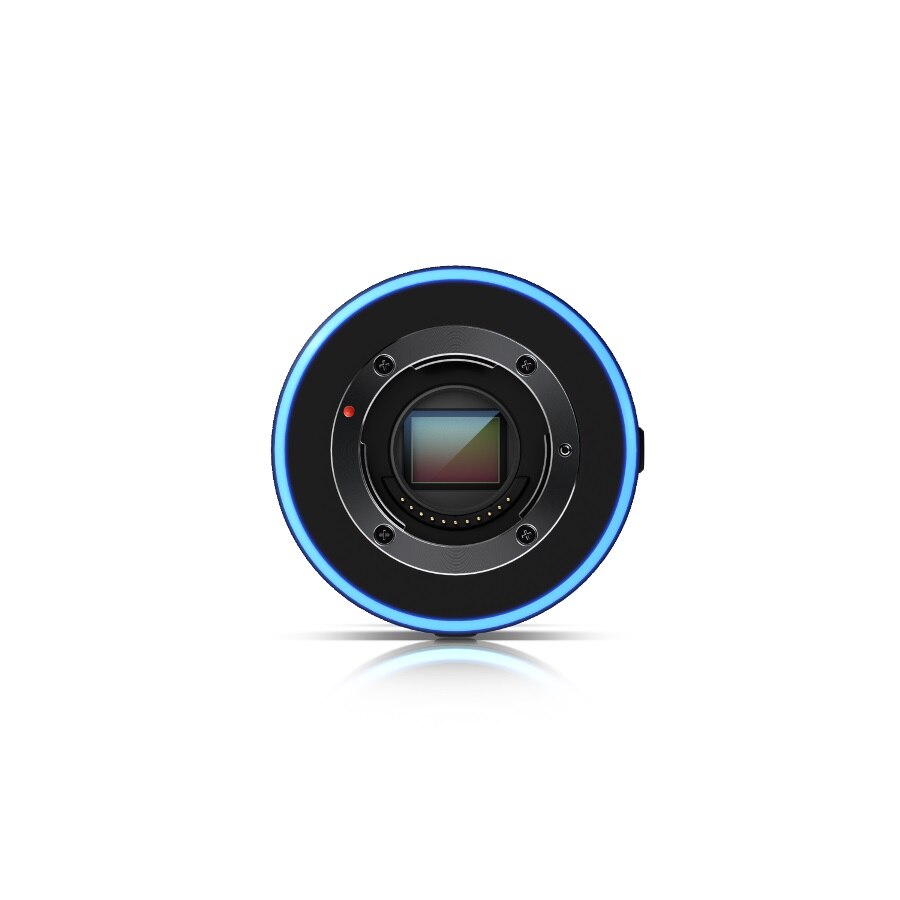

| Sensor | 4/3" 10MP CMOS sensor |
| Lens | M. Zuiko Digital ED 17 mm f/1.2 PRO (UVC-AI-DSLR) M. Zuiko Digital ED 45 mm f/1.2 PRO (UVC-AI-DSLR-LD) |
| View angle | Wide (UVC-AI-DSLR): 52° (H), 39° (V), 65° (D) Telephoto (UVC-AI-DSLR-LD): 21.6° (H), 16.2° (V), 27° (D) |
| Video | |
| Video compression | H.264 |
| Resolution | M. Zuiko Digital ED 17 mm f/1.2 PRO (UVC-AI-DSLR): 8MP 3840 x 2160 (16:9) M. Zuiko Digital ED 45 mm f/1.2 PRO (UVC-AI-DSLR-LD): 8MP 3840 x 2160 (16:9) |
| Max. frame rate | 30 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR/3DNR/NR by motion, masking, text overlay |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |

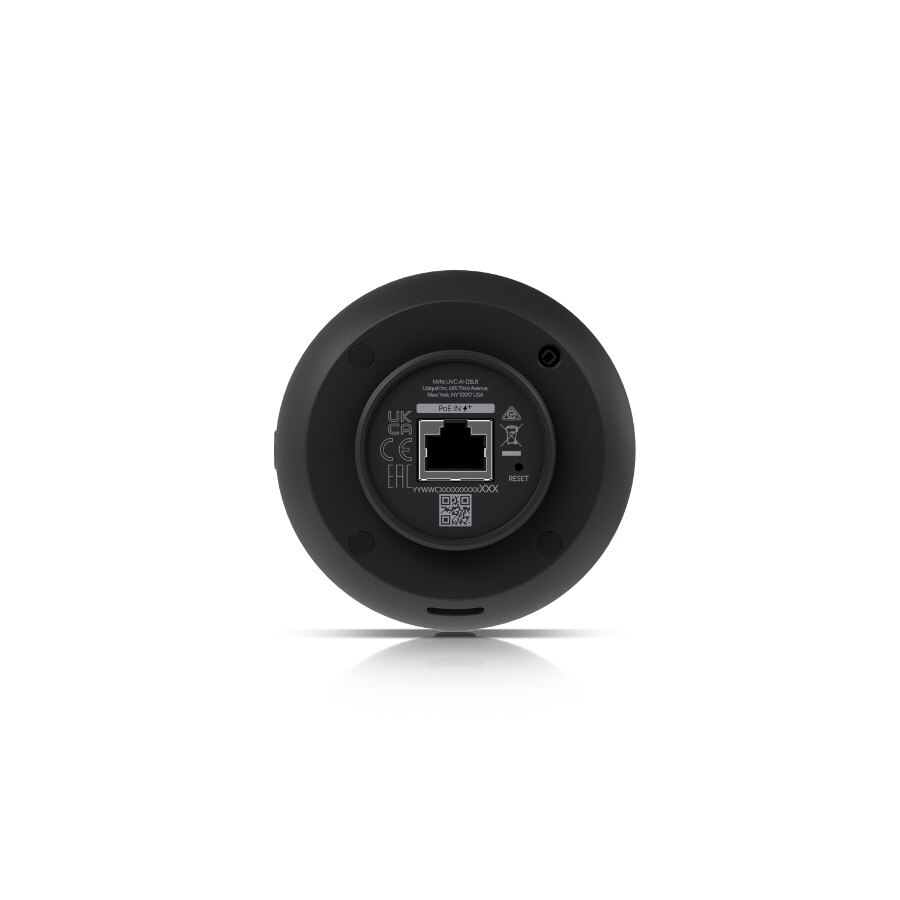

| Networking interface | (1) GbE RJ45 port |
| Max. power consumption | 17.77W (with lens working) |
| Power method | PoE+ |
| Supported voltage range | 37—57V DC |
| Buttons | Factory reset, Lens release key |
| Mounting | Wall, pole mount (included) Tripot mount |
| Operating temperature | -20 to 40° C (-4 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes* (Can be disabled.) |
| Speaker | Yes *Audio function will be disabled when using its outdoor case. |
| Software | |
| Web application | UniFi Protect: Version 2.2.2 and later |
| Mobile app | UniFi Protect iOS™ and Android™: Version 1.7.0 and later |
