RF Elements 60° Asymmetrical Beam TP Antenna
- SKU: AH60-TP
- Manufacturer: RF Elements
- Data Sheet: Download
Product Information

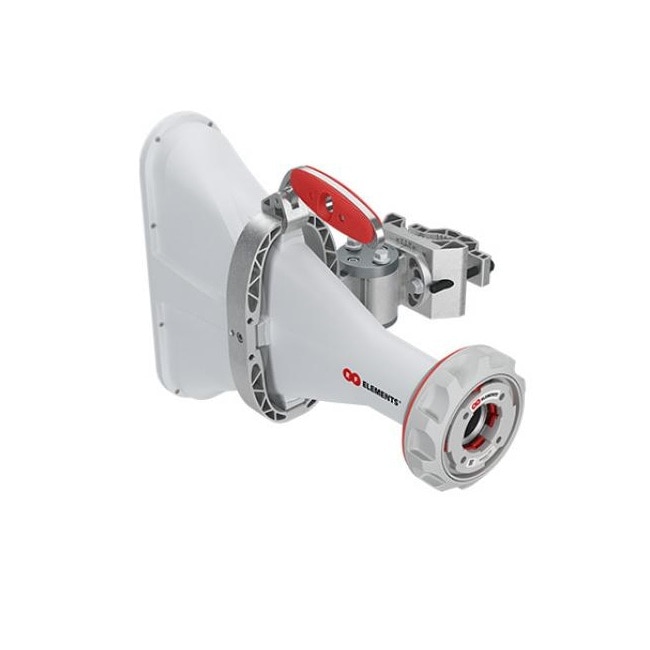

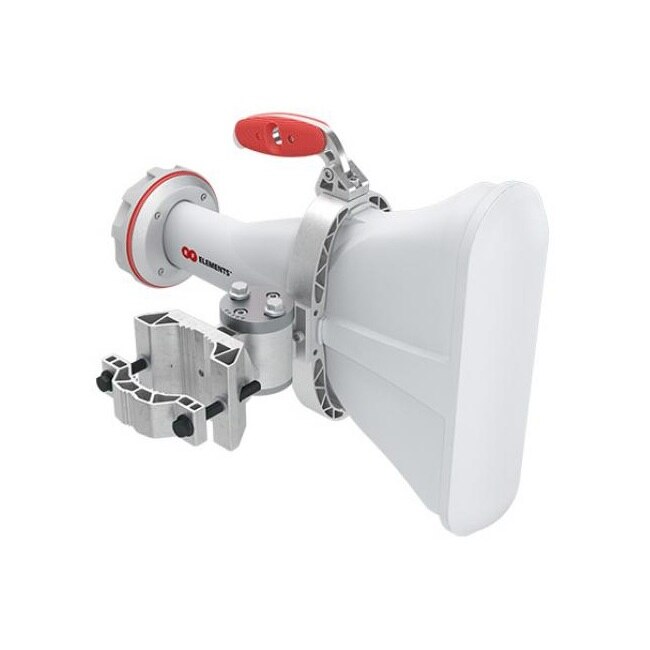

RF Elements AH60-TP
60° Asymmetrical Beam TP Antenna
60° Asymmetrical Horn TP Antenna combines the best of both worlds - a high gain of a traditional sector antenna and zero side lobes of a horn. Its radiation pattern is wide in azimuthal and narrow in the elevation plane, greatly improving coverage planning options. 60° Asymmetrical Horn TP Antenna delivers unmatched beam performance thanks to the high stability of gain and radiation pattern in the whole band of operation. Outstanding performance favors 60° Asymmetrical Horn TP antenna for high-density AP clusters, in highly populated areas and dense co-location sites.
AH60-TP features our revolutionary TwistPort™ connector, a patentpending twist-and-lock waveguide port. 60° Asymmetrical Horn TP Antenna supports a wide range of third party mainstream radios with our TPA TwistPort™ Adaptor. AH60-TP features an all new mechanical structure with a massive aluminum ring and mounting bracket. Stainless steel hardware comes with black coating that prevents hardware seizing.
Specifications
Specifications AH60-TP
| Antenna Connection | TwistPort™ - Quick Locking Waveguide Port |
| Antenna Type | Horn |
| Materials | UV Resistant ABS Plastic, Polycarbonate,HDPE, Aluminium, Stainless Steel |
| Enviromental | IP55 |
| Pole Mounting Diameter | 40-80 mm (1.5-3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible |
| Temperature | -35°C to +60°C (-31°F to +140°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 38/90 N - Front/Side at 160 km/h (100 mi/h) |
| Effective Projected Area | 311/741 cm2 - Front/Side (48.2/114.9 in2 ) |
| Mechanical Adjustment | ± 20° Elevation, ± 20° Azimuth |
| Weight | 4.7 kg (10.3 lbs) – single unit* 6.1 kg (13.7 lbs) – single unit incl. package* |
| Single Unit Retail Box | Retail Box: 540 × 365 × 160 mm (21.2 x 14.3 x 6.3 inch)* |
| Frequency Range | 5180 - 6000 MHz |
| Gain | 17 dBi |
| Azimuth Beam Width -3 dB | H 45° / V 42° |
| Elevation Beam Width -3 dB | H 17° / V 16° |
| Azimuth Beam Width -6 dB | H 60° / V 60° |
| Elevation Beam Width -6 dB | H 25° / V 25° |
| Beam Efficiency | 95% |
| Front-to-Back Ratio | 27 dB |
