Ubiquiti Networks UniFi® Building-to-Building Bridge
- SKU: UBB-US
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Ubiquiti Networks UBB-US (US Version)
Unifi® Building-To-Building Bridge

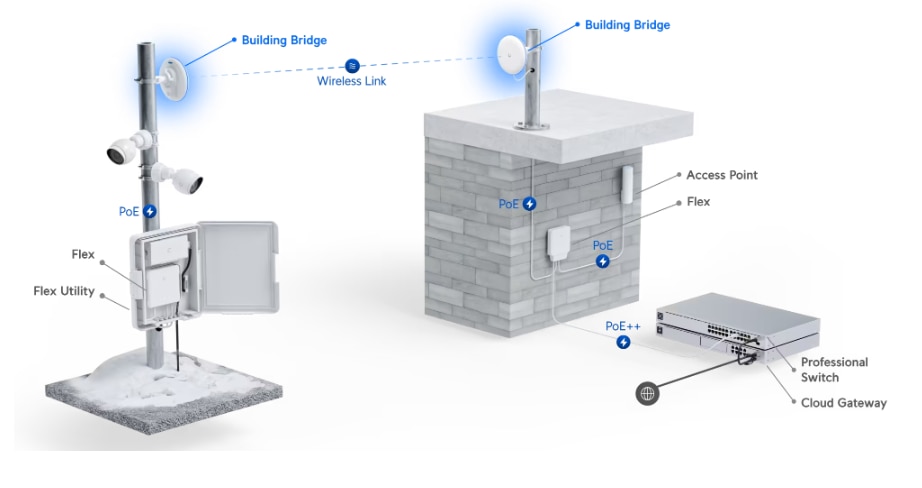

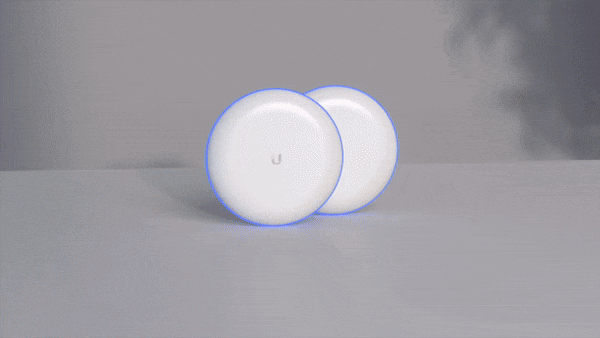

The Ubiquiti UniFi® Building-to-Building Bridge is the ideal solution for high-throughput connectivity with a range of up to 500 m. Integration with the UniFi Controller makes bridging two networks seamless. Comprised of two pre-paired endpoint devices, the UBB delivers a Point-to-Point (PtP) link – up to 1+ Gbps – using 802.11ad technology on the low-interference 60 GHz radio band.
The 60 GHz band attenuates quickly due to atmospheric absorption. When a 60 GHz radio – such as the UBB – uses a highly directional antenna, interference from other directions is also attenuated. The 60 GHz band thus offers extremely high transmission capacity as a wireless wire.

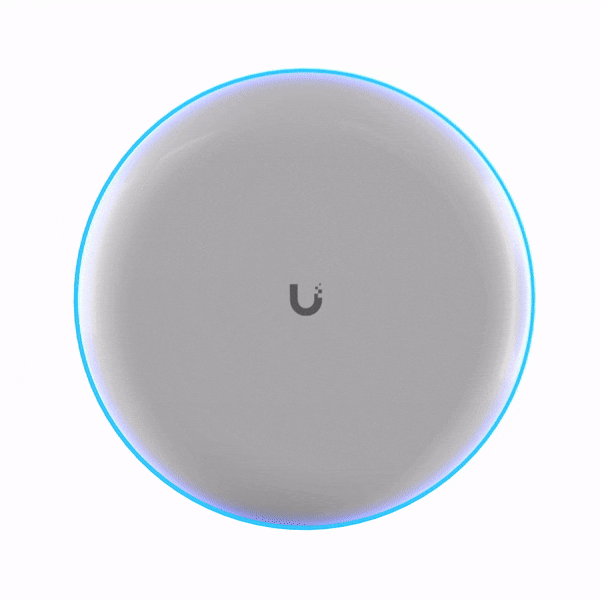

Easily Adjust for Best Signal Using LED
Use the LED indicator to adjust the UBB position for optimal signal to the other bridge device.
Easy to Set Up
The UniFi Building-to-Building Bridge integration with the UniFi Controller makes bridging two networks seamless.
Scalable UniFi Network Controller
The UniFi® Network Controller is an end-to-end system of network devices across different locations — all controlled from a single interface.
Features:
- 60 GHz Gigabit+ Wireless Bridge Kit
- Low-Interference 60 GHz Radio Band
- 5 GHz Radio for Backup
- Pre-Paired Radios for Quick Setup Using UniFi App
Specifications
Specifications UBB-US

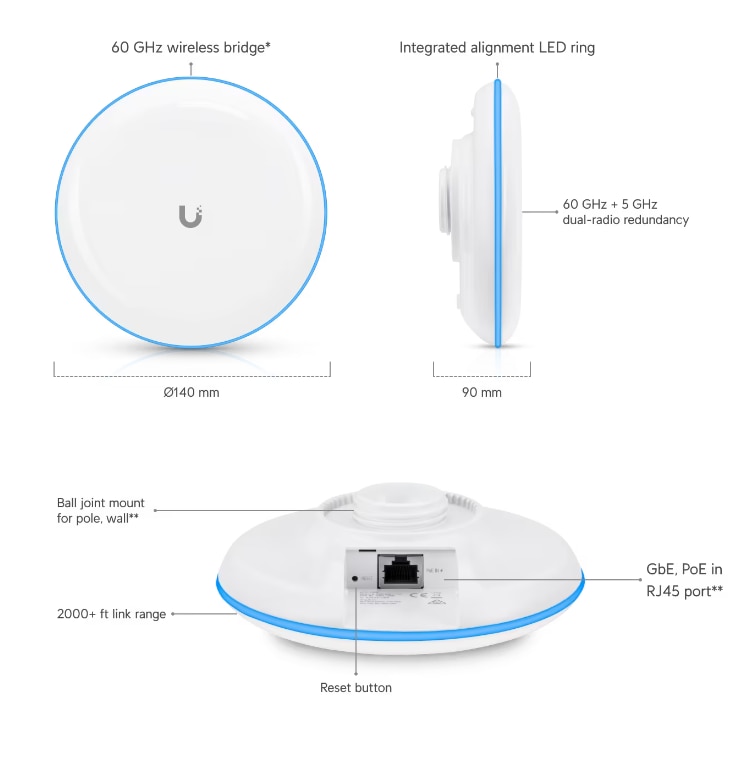

| Dimensions | 140 x 140 x 90 mm (5.51 x 5.51 x 3.54") |
| Weight | 376 g (13.3 oz) |
| Antenna Gain 2.4 GHz (BLE) 5 GHz 60 GHz | 2 dBi 10 dBi 17.2 dBi |
| GPS | Yes |
| Max. TX Power (EIRP) 5 GHz 60 GHz | 25 dBm 32 - 36.5dBm |
| 60 GHz Elevation Beamwidth | 30° |
| 60 GHz Azimuthal Coverage | ±60° |

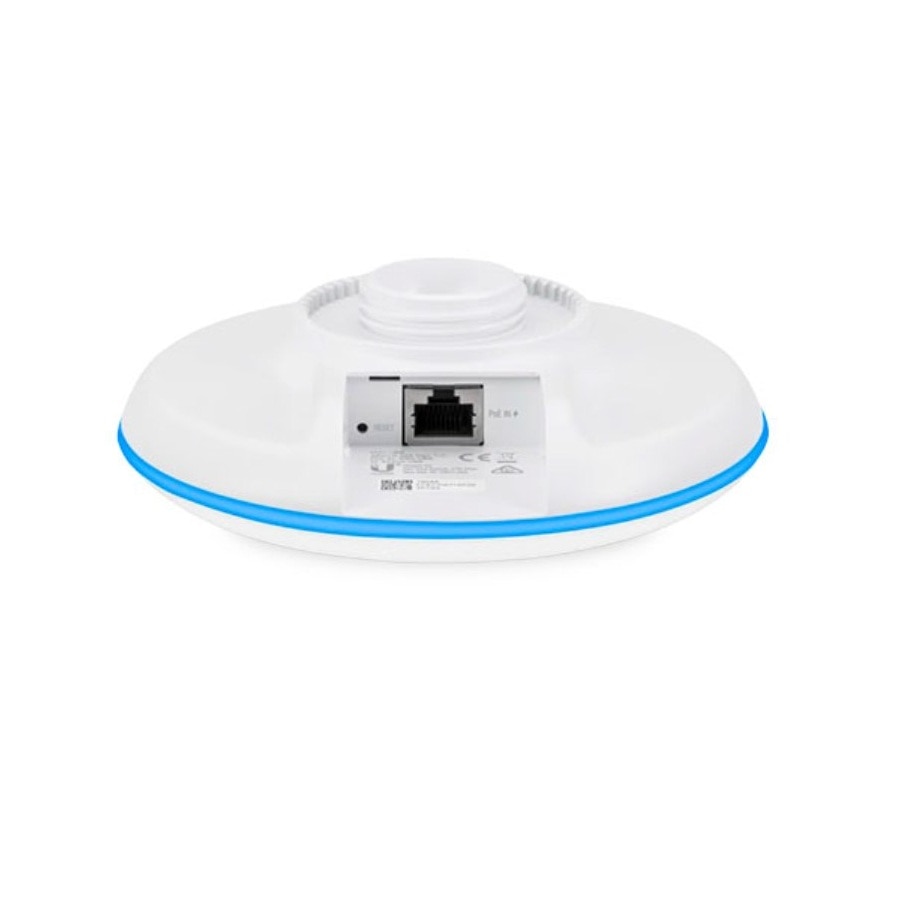

| Interfaces Networking Management | (1) 10/100/1000 Ethernet Port Bluetooth |
| Enclosure | UV-Resistant Polycarbonate |
| Power Method | 802.3af Supported Passive Power over Ethernet (48V) |
| Power Supply | UniFi PoE Switch 48V, 0.32A Gigabit PoE Adapter (Included) |
| Max Power Consumption | 11W |
| Wind Loading | 56 N @ 200 km/h (12.6 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |

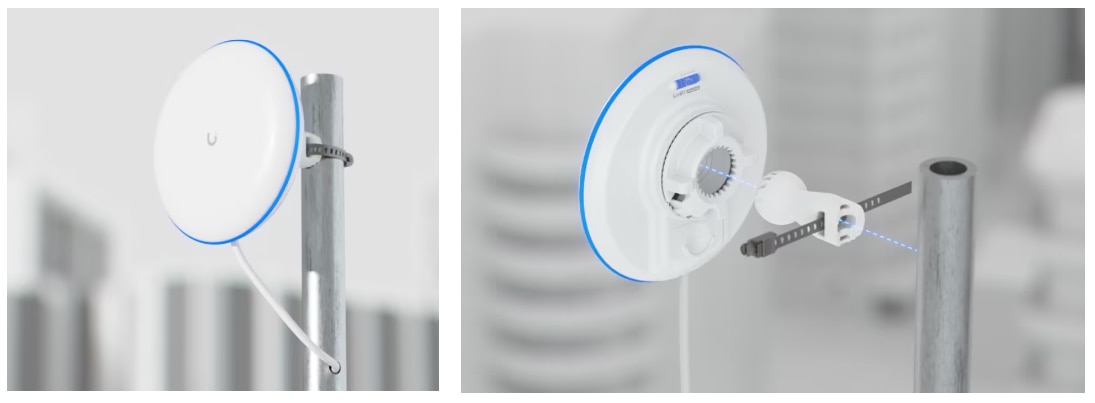

| Mounting | Pole-Mount (Kit Included) Wall-Mount (Not Included) |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (GHz) | |
| Worldwide | 5.150 - 5.875 57 - 66 |
| US/CA | U-NII-1: 5.150 - 5.250 U-NII-3: 5.725 - 5.850 57 - 66 |
