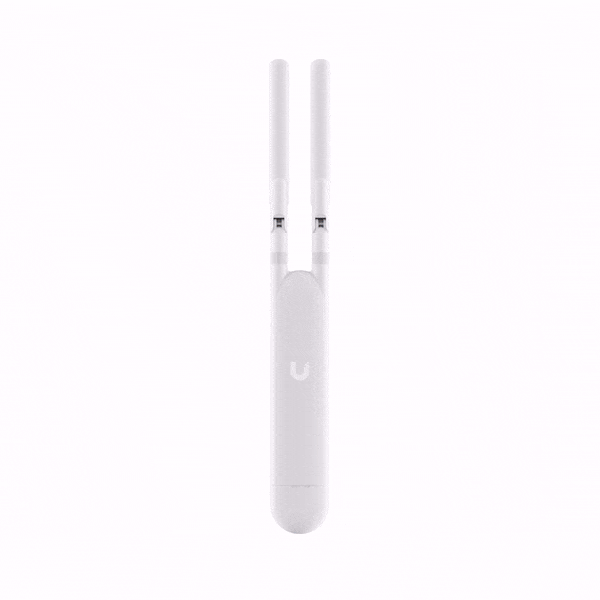

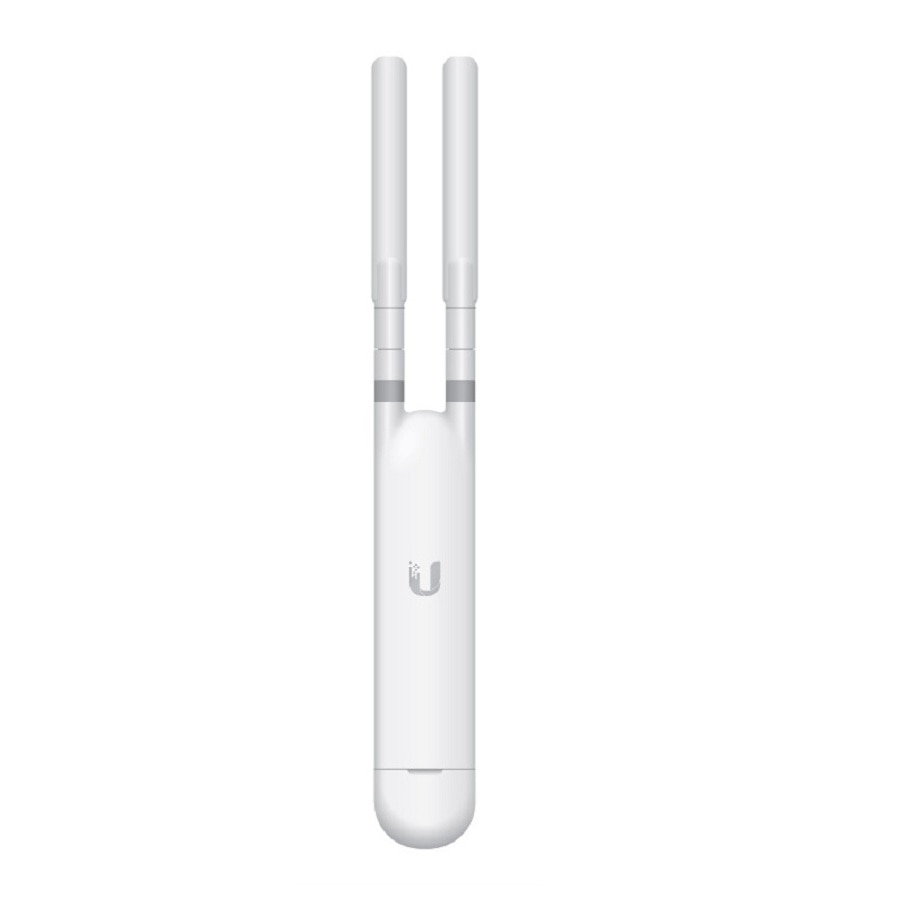

Ubiquiti UniFi 802.11AC Outdoor Access Point Mesh, 1167Mbps, dual-omni antennas
- SKU: UAP-AC-M-US
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Ubiquiti UniFi UAP-AC Mesh (UAP-AC-M) Dual-Band 2.4/5 GHz
UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC Mesh APs have a refined industrial design and can be easily installed using the included mounting hardware.
The UniFi Enterprise WiFi System is a scalable enterprise access point solution designed to be easily deployed and managed.
The UniFi Enterprise WiFi System includes the UniFi Controller software which can be easily accessed through any standard web browser. The software installs on any Windows, Mac, or Linux PC and can be run on-premise, in your private cloud or in a public cloud service. Using the UniFi Controller software, an Enterprise WiFi network can be quickly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, guest/hot-spot management, mobile roaming and advanced security options are all seamlessly integrated.
The UniFi controller software is included with each access point. There are no additional software license or subscription costs required to use the UniFi controller.

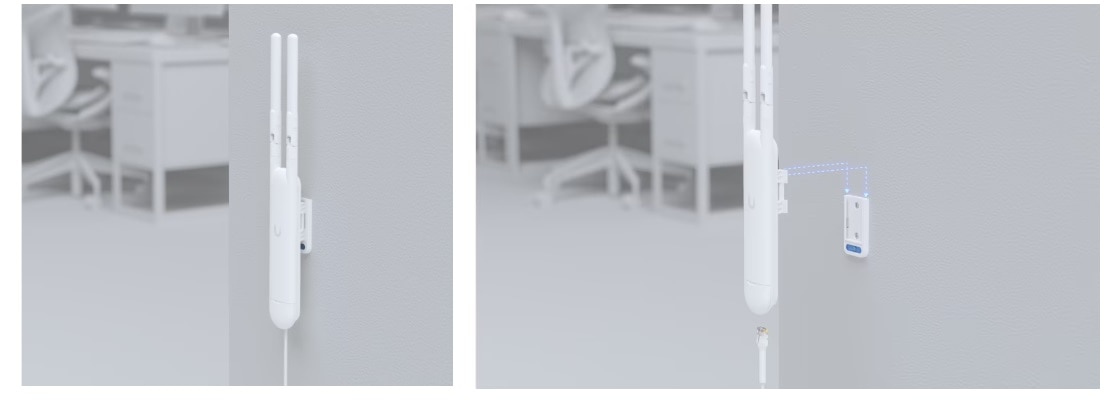

The UniFi AC Mesh AP is designed to discreetly integrate into any environment. The UniFi AC Mesh AP can be used indoors or outdoors. Unique provisioning LED provides administrator location tracking and alerts for each device. The UniFi AC Mesh AP can be mounted on a wall, pole, or fast-mount of a Ubiquiti high‑gain antenna. (All accessories are included.)

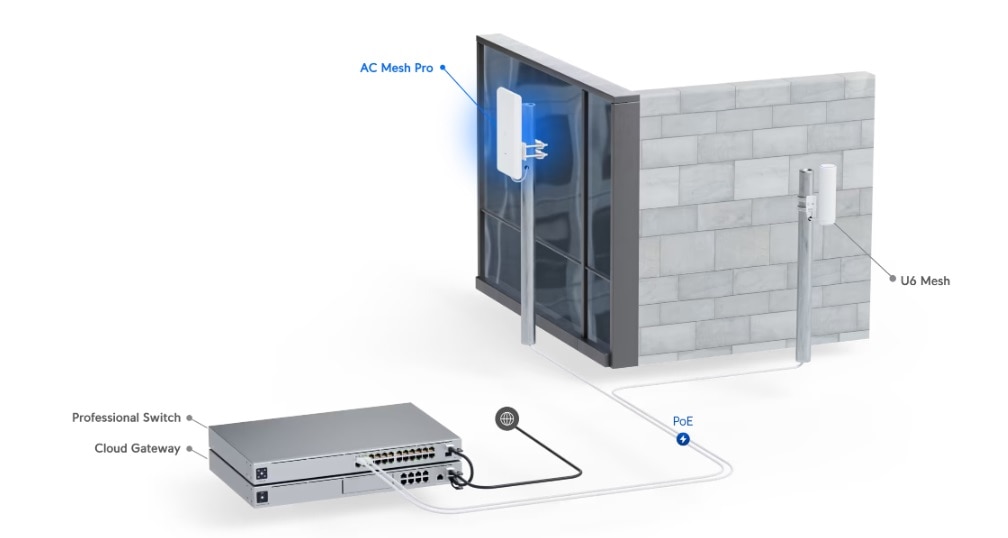

The UniFi AC Mesh AP is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with an 802.3af Alternative A compatible switch, EdgePoint™ EP-R6, UniFi PoE Switch, or the included Gigabit PoE adapter.
Antenna options: Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorized antenna for expanded range coverage and customized pattern shaping.
Specifications
Specifications Ubiqiuti UAP-AC-M

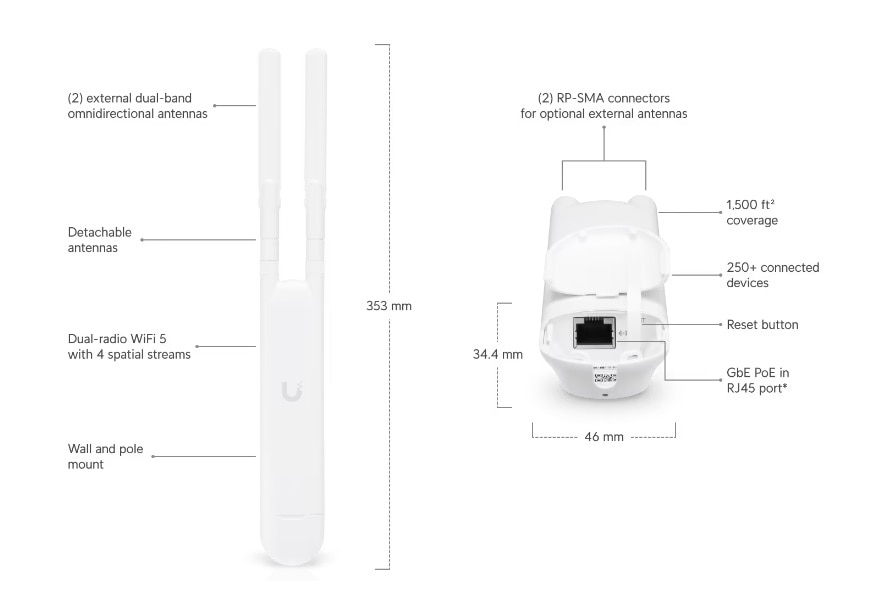

Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35") |
Weight | 152 g (5.36 oz) with Antennas |
Networking Interface | (1) 10/100/1000 Ethernet Port |
Buttons | Reset |
Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return); 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) (Supported Voltage Range: 44 to 57VDC) |
Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
Power Save | Supported |
Maximum Power Consumption | 8.5W |
Maximum TX Power | 20 dBm/td> |
Antennas | (2) External Dual-Band Omni Antennas |
Wi-Fi Standards | 802.11 a/b/g/n/ac Dual Band 2.4/5GHz |
Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
BSSID | Up to Four per Radio |
Mounting | Wall/Pole/Fast-Mount (Kits Included) |
Operating Temperature | -30 to 70° C (-22 to 158° F) |
Operating Humidity | 5 to 95% Noncondensing |
Certifications | CE, FCC, IC |
VLAN | 802.1Q |
Advanced QoS | Per-User Rate Limiting |
Guest Traffic Isolation | Supported |
WMM | Voice, Video, Best Effort, and Background |
Concurrent Clients | 200+ |
Standard | Data Rates |
802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11b | 1, 2, 5.5, 11 Mbps |
