Ubiquiti UniFi Switch Lite 8 PoE
Product Information
Ubiquiti Networks USW-Lite-8-PoE
UniFi Switch Lite 8 PoE
The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Features:

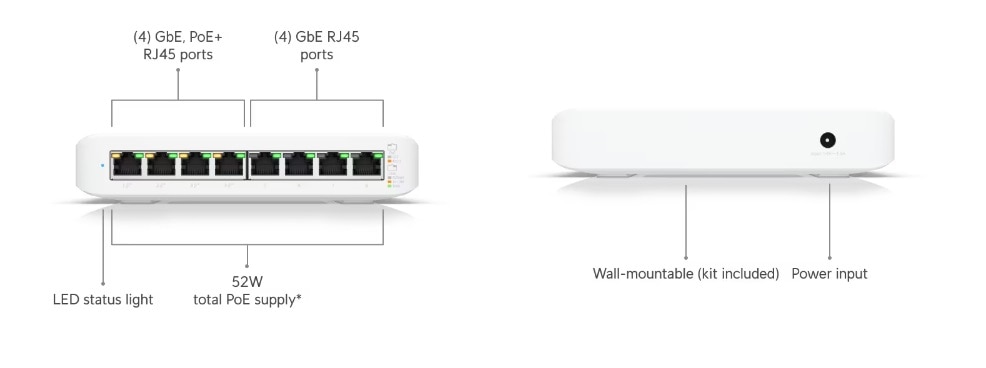

- (8) Gigabit RJ45 ports including (4) 802.3at PoE+ ports
- Managed by UniFi Controller (5.13.10 or later)
- External 60W power adapter

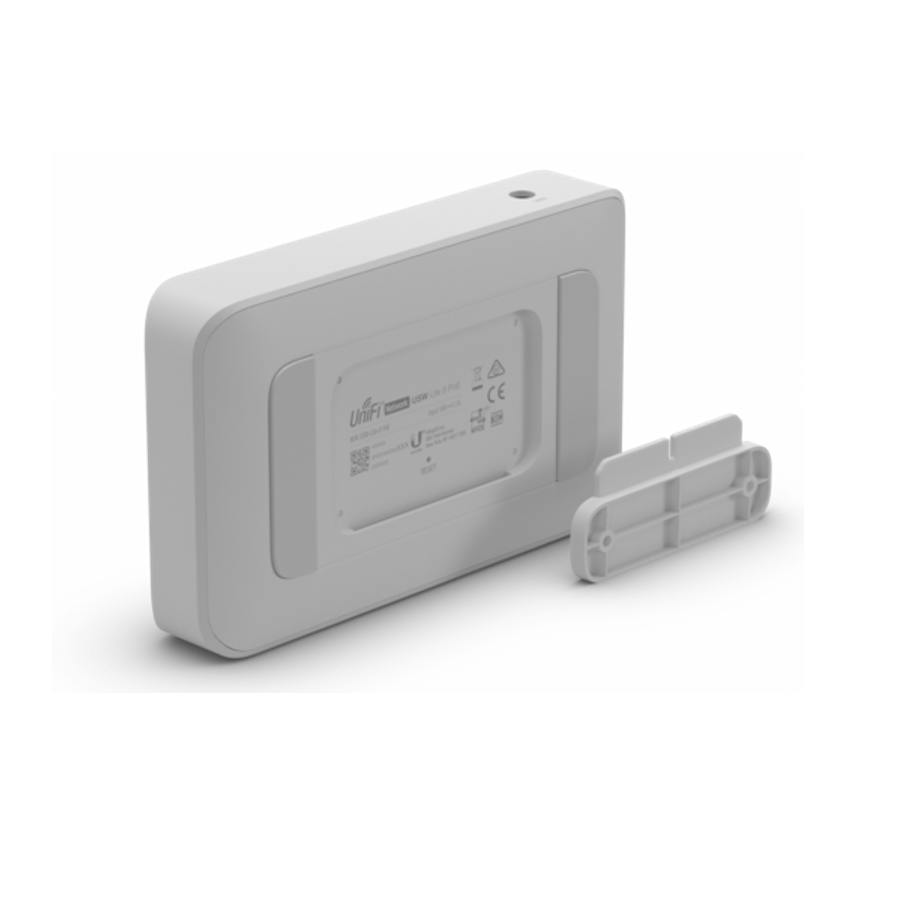

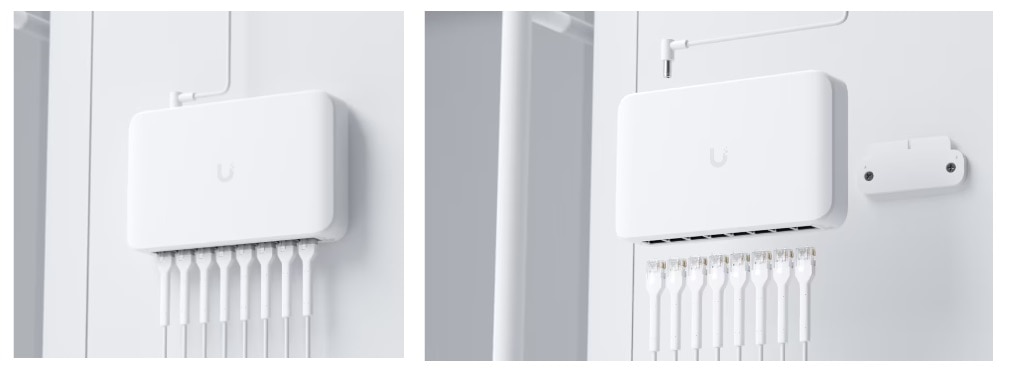

- Wall-mountable (Kit included)
Works with UniFi Network Controller:
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
Specifications
Specifications USW-Lite-8-PoE
| Mechanical | |
| Dimensions | 99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25") |
| Weight | 450 g (15.87 oz) |
| Hardware | |
| Total Non-Blocking Line Rate | 8 Gbps |
| Max. Power Consumption | 8W |
| Power Method | 54VDC, 1.1A Power Adapter |
| Power Supply | External 54V/60W Power Adapter |
| Supported Voltage Range | DC 50V to 57V |
| Networking Interfaces | (8) 10/100/1000 Mbps Ethernet RJ45 Ports |
| PoE Interfaces | (4) PoE+ IEEE 802.3af/at(Pins 1, 2+; 3, 6-) |
| MangementInterface | EthernetIn-Band |
| Max. PoE+ Wattage per Port by PSE | 30W |
| Modes | SMB Layer 2 PoE Gigabit Ethernet Switch |
| Operating Temperature | -15 to 40° C (5 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifcations | CE, FCC, IC |
| LEDs | |
| Ethernet | Green: 1G, Amber: 10/100 Mbps |
| PoE | Amber: IEEE 802.3af/at |
| System | (1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
