Ubiquiti Wireless Dual-Band Wi-Fi 6 Mesh Outdoor Access Point

(0)No Reviews yet
  • SKU: U6-Mesh-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Installation Guide:Download

Out of Stock

Call for Availability

Product Information

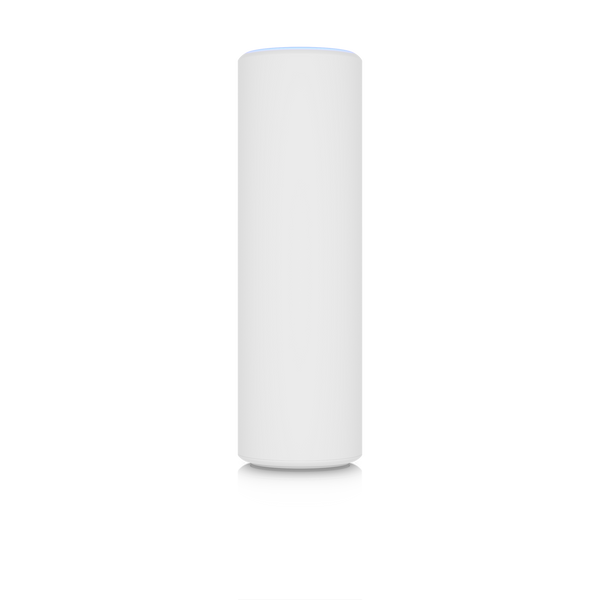

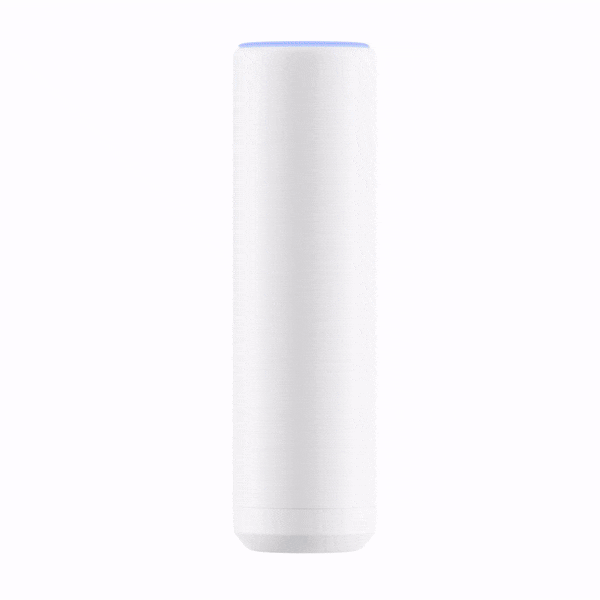

Ubiquiti Networks U6-Mesh-US

Wireless Dual-Band Wi-Fi 6 Mesh Outdoor Access Point

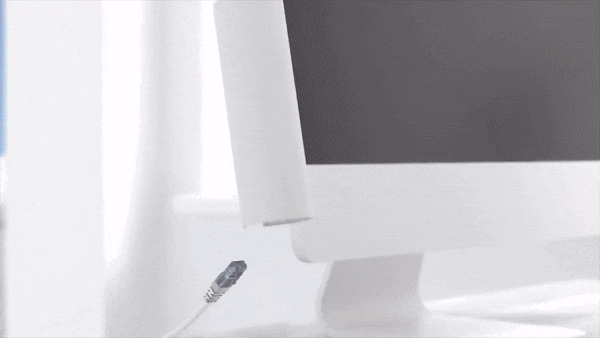

Sleek, indoor/outdoor WiFi 6 access point designed for mesh applications.



  • WiFi 6 support (2.4/5 GHz bands)
  • 5.3 Gbps aggregate throughput rate
  • Horizontal antenna pattern to widen coverage area

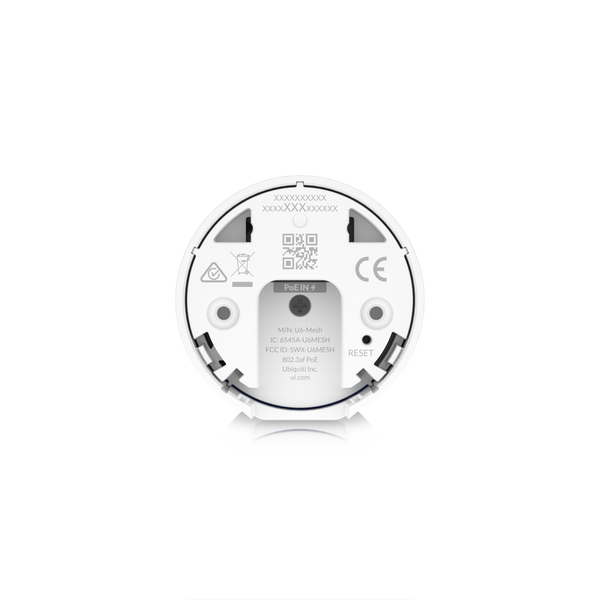

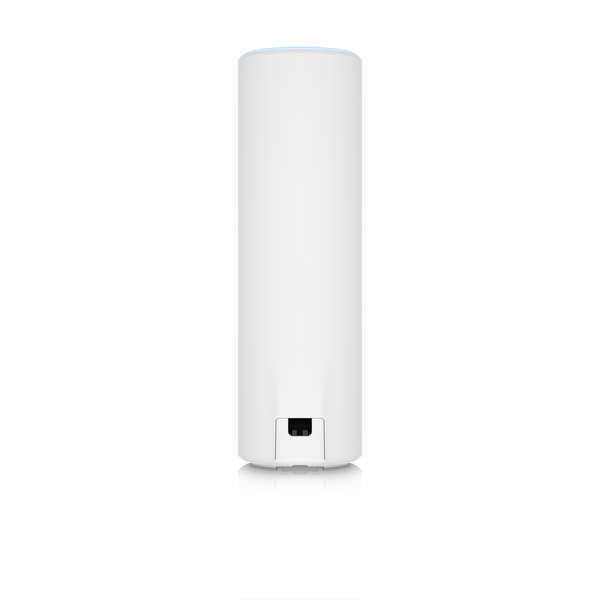

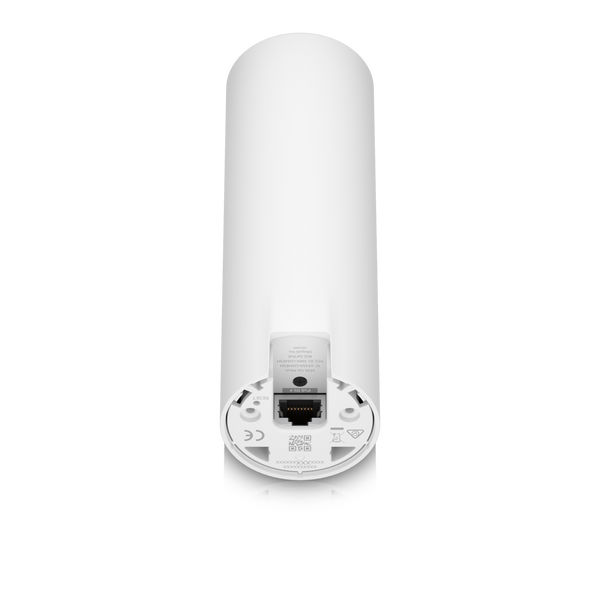

  • (1) GbE RJ45 port (PoE In)*
  • IPX5-rated, waterproof casing
Managed with the UniFi Network application: Version 6.3.51 and later

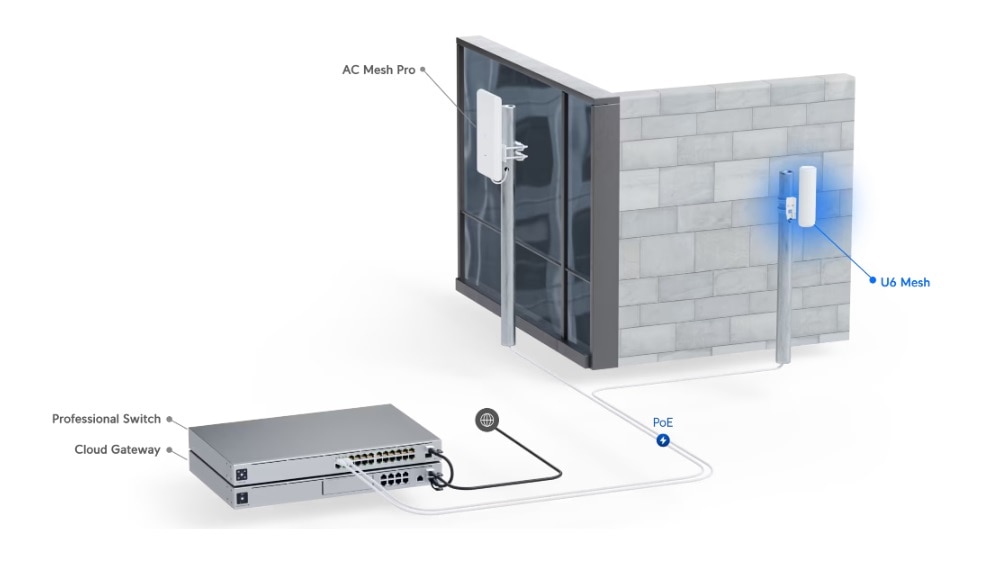

Adopt the U6-Mesh in Minutes with Your UniFi Network Application and:

  • Centrally manage multiple networks from an intuitive interface
  • Enjoy real-time device insights and deep configuration options
  • Upgrade device firmware remotely
  • Manage network users and guests with ease
  • Personalize the design, architecture, and privacy of guest hotspots
  • Set up devices quickly and manage them on the go with a powerful mobile app


Specifications U6-Mesh-US

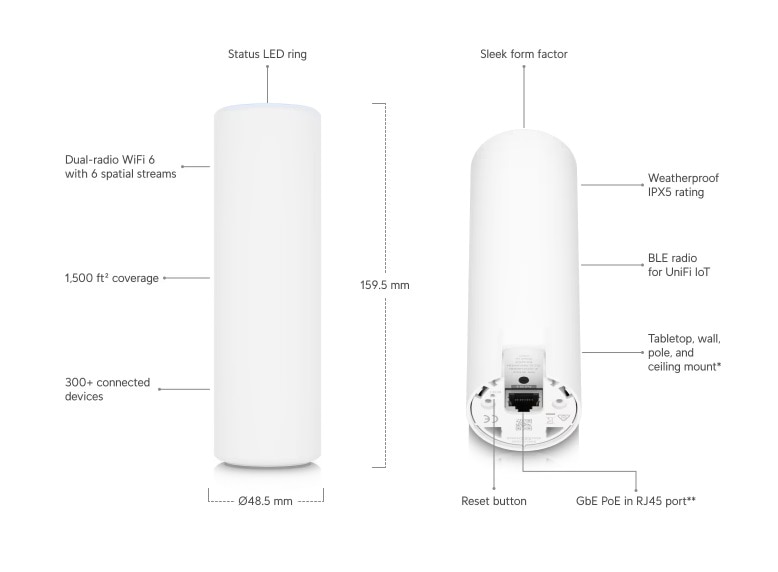

DimensionsØ48.5 x 159.5 mm (Ø1.9 x 6.28")
Weight400 g (0.88 lb)
Enclosure materialPlastic, aluminum
Mount materialsPlastic
Networking interface(1) GbE RJ45 port
Management interfacesEthernet
Power methodPoE
Power supplyUniFi PoE switch 48V, 0.32A PoE adapter (included)
Supported voltage range44—57V DC
Max. power consumption11.4W
Max. TX power 2.4 GHz 5 GHz22 dBm 26 dBm
MIMO 2.4 GHz 5 GHz2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO)
Throughput rate 2.4 GHz 5 GHz573.5 Mbps 4.8 Gbps
Antenna gain 2.4 GHz 5 GHz3 dBi 5 dBi
ButtonFactory reset

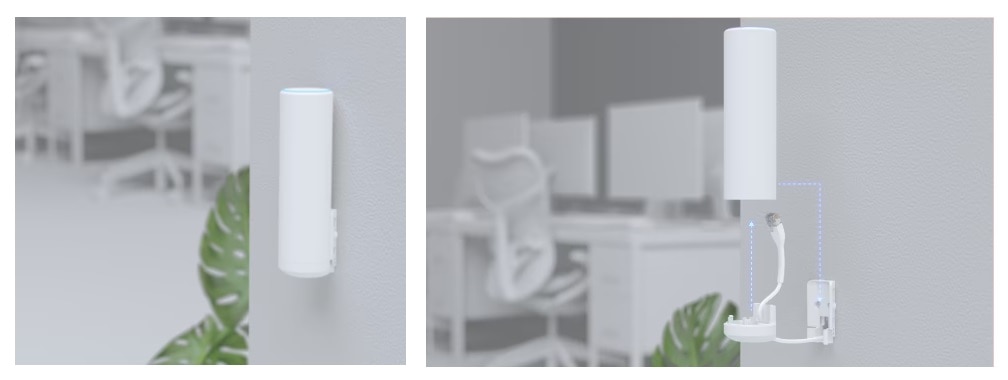

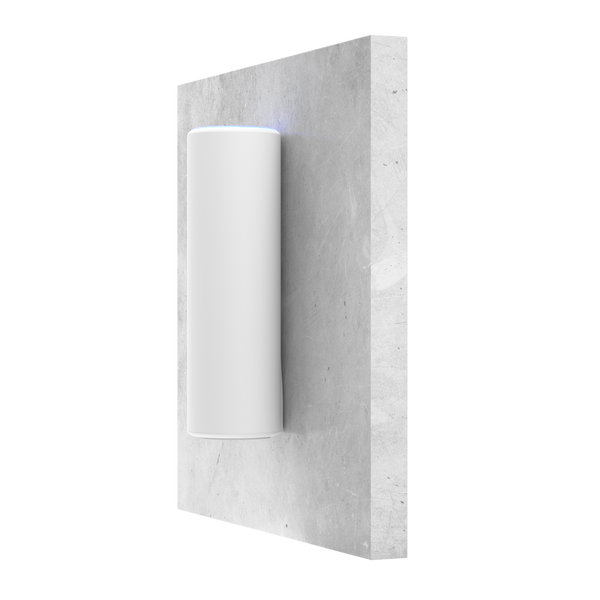

MountingWall, desktop, pole mount (Included) Ceiling mount (Optional)
Operating temperature-30 to 60° C (-22 to 140° F)
Operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
WiFi standards802.11a/b/g WiFi 4/WiFi 5/WiFi 6
Wireless securityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID8 per radio
Advanced QoSPer-user rate limiting
Guest traffic isolationSupported
Concurrent clients300+
Zero wait DFSYes* *Supported with upcoming firmware versions
Supported Data Rates
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
