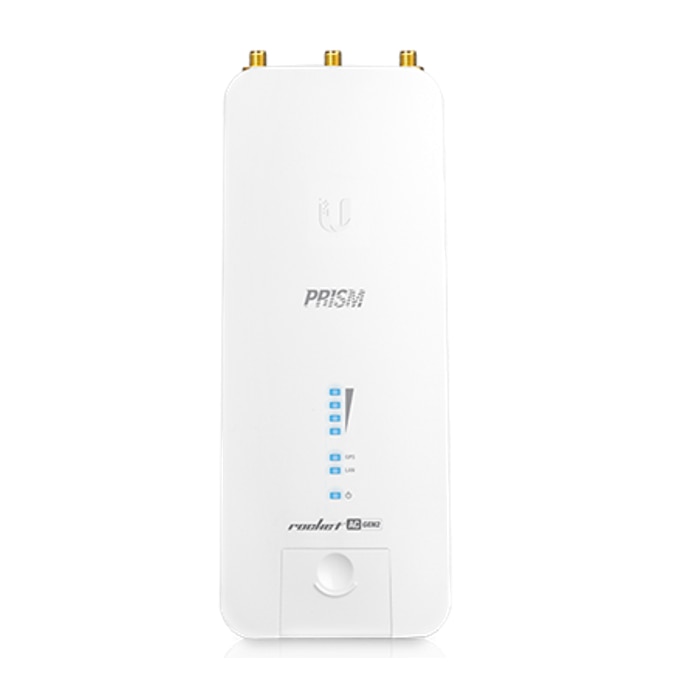

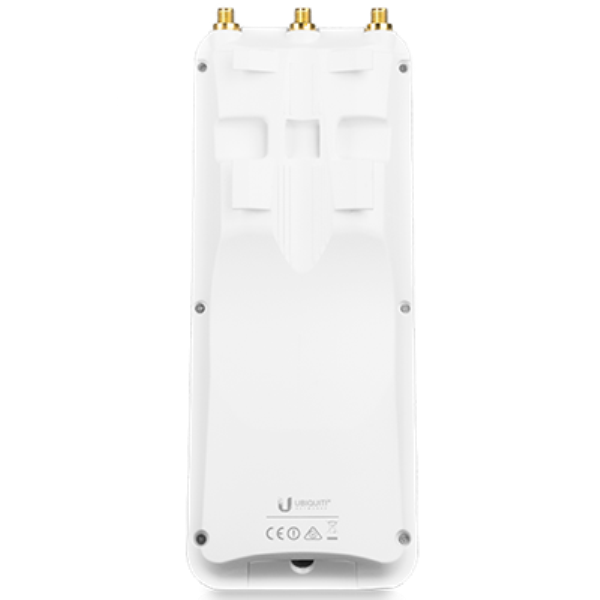

Ubiquiti 5GHz Rocket ac Gen2 airPrism metal
Ubiquiti Networks 5GHz Rocket ac Gen2 airPrism metal
The Rocket® Prism 5AC covers the full 5 GHz radio band and incorporates both airMAX ac and airPrism technologies for maximum performance of wireless links in high-density areas.
Management Wi-Fi Radio
The Rocket® Prism 5AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

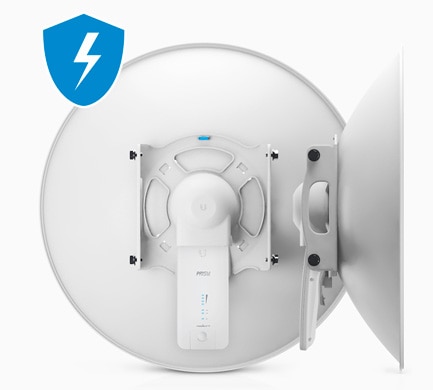

Improved Surge Protection
The Rocket® Prism 5AC features enhanced protection against ESD events.

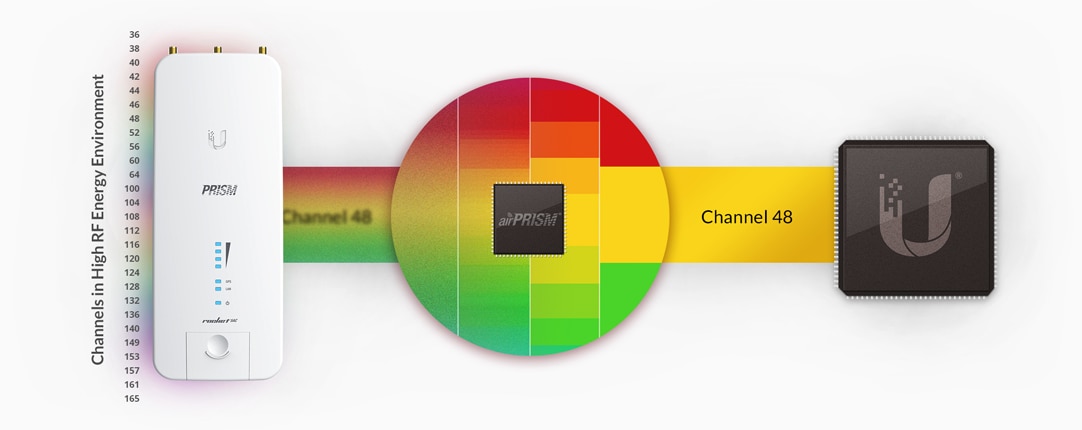

Revolutionary Filtering Technology
Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.

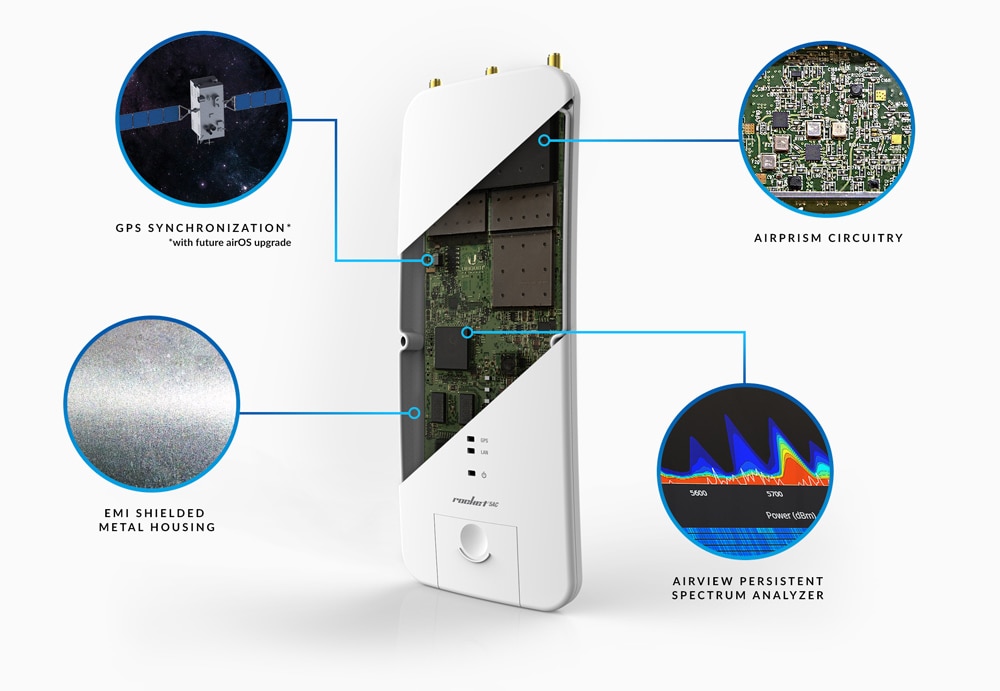

Designed for High Performance
The Rocket® Prism 5AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.

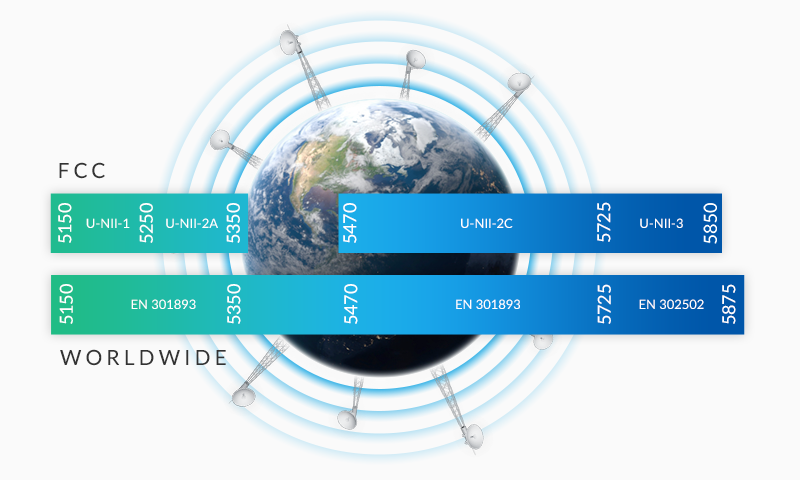

Full-Band 5 GHz Coverage
The Rocket® Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.

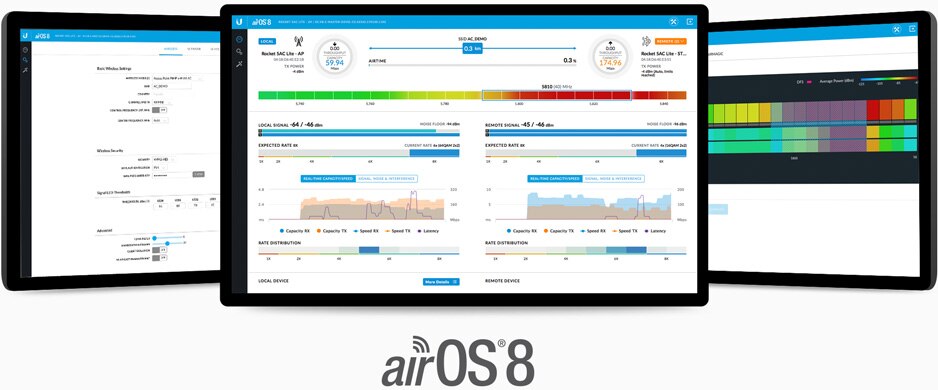

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

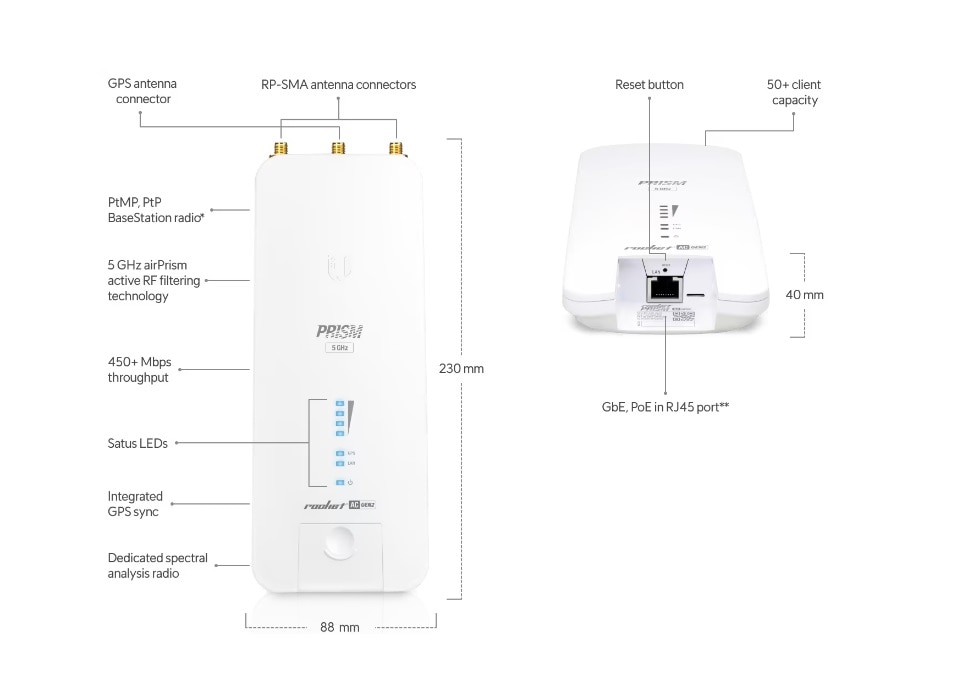

|Dimensions||88 x 40 x 230 mm (3.47 x 1.58 x 9.06")|
|Weight||400 g (14.11 oz)|
|Networking Interface||(1) 10/100/1000 Ethernet Port|
|RF Connectors||(2) RP-SMA (Waterproof ), (1) GPS* (Waterproof)|

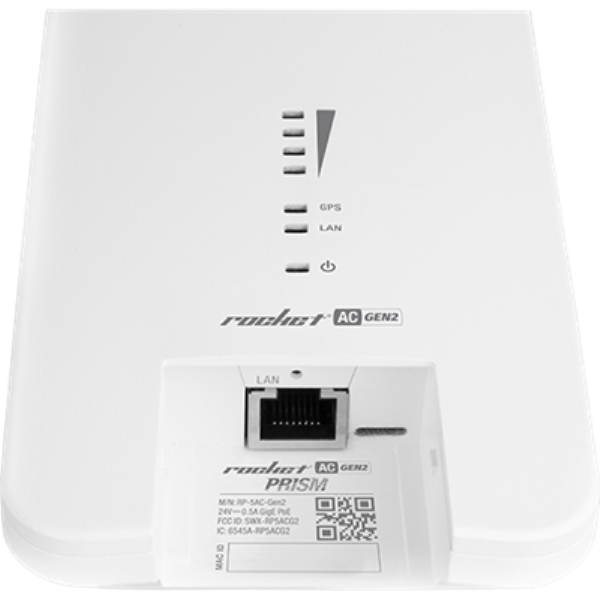

|LEDs||(4) Signal Strength, GPS*, Power, LAN|
|Enclosure||Die-Cast Aluminum with White Powder Coating|
|Max. Power Consumption||9.5W|
|Power Supply||24V, 1A Gigabit PoE Adapter (Included)|
|Power Method||Passive PoE (Pairs 4, 5+; 7, 8 Return)|
|Processor Specs||Atheros MIPS 74Kc|
|Memory||128 MB DDR2 SDRAM|
|Supported Voltage Range||18-26VDC|
|Signal Strength LEDs||Software-Adjustable to Correspond to Custom RSSI Levels|
|Channel Sizes||PtP Mode 10/20/30/40/50/60/80 MHz PtMP Mode 10/20/30/40 MHz|
|ESD/EMP Protection||± 24 kV Contact / Air for Ethernet|
|Operating Temperature||-40 to 80° C (-40 to 176° F)|
|Operating Humidity||5 to 95% Noncondensing|
|Shock and Vibration||ETSI300-019-1.4|
|Modes||Access Point, Station|
|Services||Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing|
|Utilities||Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test|
|Distance Adjustment||Dynamic Ack and Ackless Mode|
|Power Adjustment||Software Adjustable UI or CLI|
|Security||WPA2 AES Only|
|QoS||Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low|
|Statistical Reporting||Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate|
|Other||Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM, GPS*, TX Filter|
|Ubiquiti Specific Features||30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode|
|Certifications||CE, FCC, IC|
