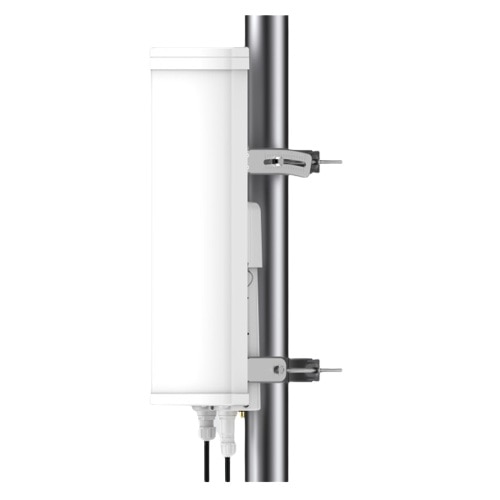

Cambium ePMP 4x4 6GHz MU-MIMO Sector Antenna with Mounting Kit

(0)No Reviews yet
  • SKU: C060940D301A
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
266 in stock
College Station
266 In stock

Product Information

Cambium Networks C060940D301A

ePMP 4x4 6GHz MU-MIMO Sector Antenna with Mounting Kit

Cambium Networks has deployed millions of radios around the world achieving unparalleled degrees of scalability and performance. A key aspect to a successful point-to-multipoint deployments is the antenna selection that is optimized to maximize the overall system gain, spectral efficiency and interference rejection. Cambium Networks has designed a 6 GHz 4x4 MU-MIMO sector antennas especially well-suited for ePMP 4600 Access Points.p>

The 4x4 MU-MIMO sector providing 18 dBi gain, 30 dB front-toback ratio and the ability to form the beams necessary for grouping SM’s for MU-MIMO performance. By forming these MU-MIMO groups, the RADIO effectively has two overlapping sectors enabling transmission to two SM’s simultaneously. This antenna is ideal for 4-sector deployments and ABAB 2-channel reuse.





Features:

  • Frequency Reuse:Designed for ABAB channel reuse (two channels cover four sectors).
  • Consistent coverage:Excellent null fill and smooth azimuth patterns allow for broad geographical cover, including near the tower and out to the sector edges.
  • Ultra Wide Frequency Range:Designed for 6 GHz deployment worldwide covering 5.9 GHz to 7.125 GHz.
  • Designed for the Installer:Small, compact designs with integrated radio mounting for reliable and safe installations.
  • LINKPlanner Support:Cambium Networks planning tool offers precise 3D modeling of each sectors, elevation and azimuth, enabling predictable capacity and availability of each subscriber location

Specifications

Specifications

Frequency Range5.9 GHz to 7.125 GHz
Gain18 dBi
3 dB Beamwidth Azimuth65º
3 dB Beamwidth Elevation
6 dB Beamwidth Azimuth90º
Electrical Downtilt-2º
Polarization2 x Horizontal, 2 x Vertical
Port-to-Port Isolation> 20 dB
Front-to-Back Ratio30 dB
Maximum Input Power5 W
Imput Impedance50 ohms
Mounting Connectors4 x RP SMA
EnvironmentalIP65
Radome MaterialUV Protected Polycarbonate
Operating Temperature-40ºC to 60ºC (-40ºF to 140ºF)
Wind Surivability200 kph (124 mph)
Weight17.63 lbs
Dimension26.25" x 11.33" x 7.20"
HTS Code8517.62.0090
Country of OriginChina
