Product Information

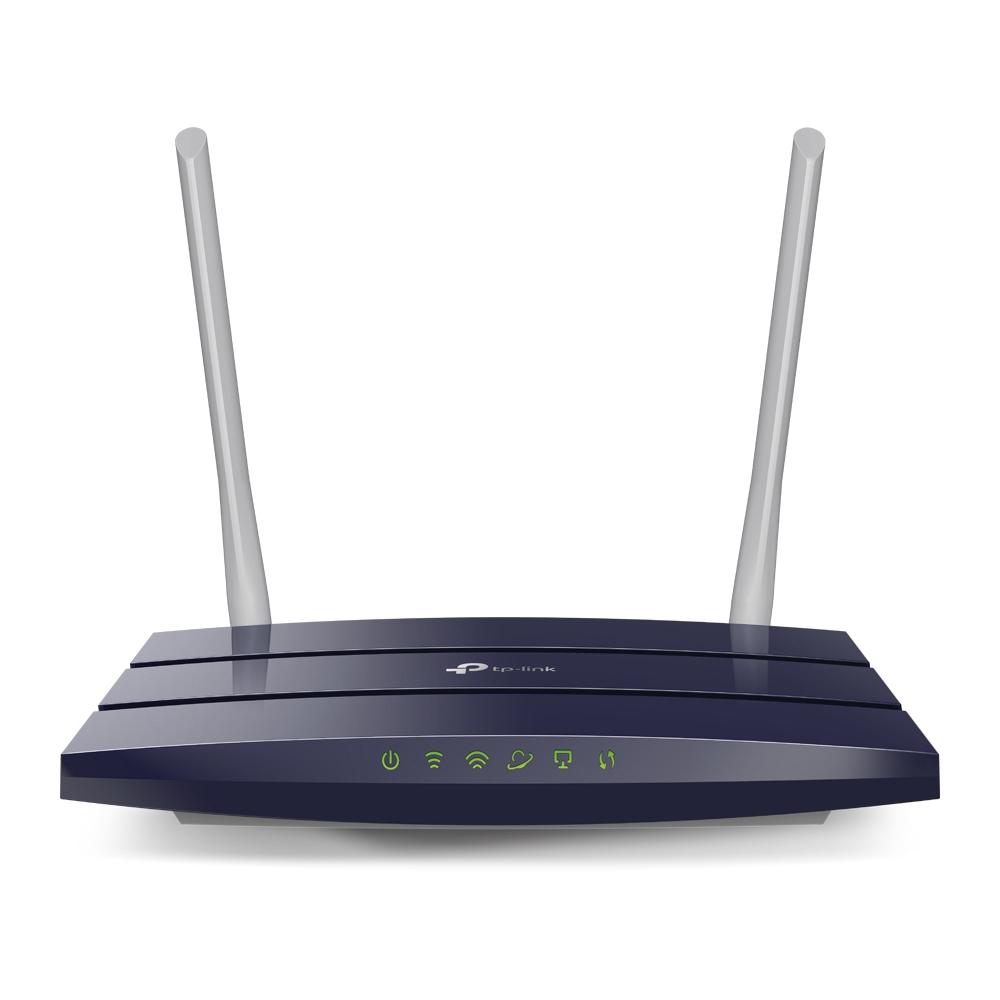

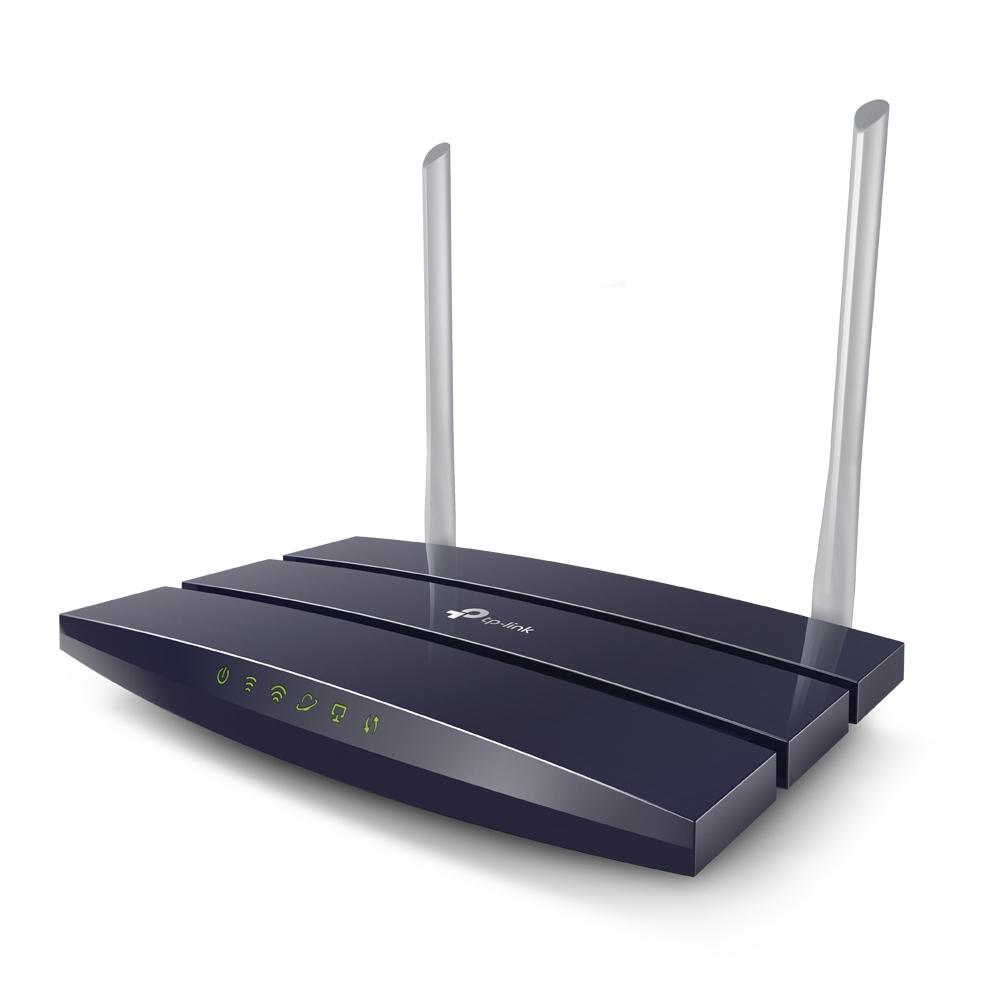

TP-Link Archer A54
AC1200 Wireless Dual Band Router
High-Speed Dual Band WiFi for Better Connections
The Archer A54 lets your PC or laptop enjoy connections 3x faster than Wireless N with Wireless AC technology. With 300Mbps over the 2.4GHz band and 867Mbps over the the crystal clear 5GHz band, the Archer A5 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
Easily Manage Your Network
Extensive device management capabilities allow you to freely adjust settings for every device connected to your router.
Bandwidth Control
Enables bandwidth management allowing you to allocate more data for gaming or streaming or limit connection speeds to keep people on task.
Guest Network
Provides secure access for guests to connect to your WiFi network. Easily share your network without compromising security.
Parental Controls
Allows the network administrator to restrict for children, limit access levels and connection time.
Access Control
Select what devices are allowed to connect to your network to keep it secure.
Easy Setup and Use
Set up the Archer A5 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage your network settings from any Android or iOS device, including parental controls and access control.
WPS
Make secure wireless connections quick and easy with the push of a button.
IPv6
Supports IPv6 which helps you future-proof your network.
Security
Protects your home network with firewalls and wireless encryption.
Features:
- Supports 802.11ac WiFi standard
- Simultaneous 2.4 GHz 300 Mbps and 5 GHz 867 Mbps connections for 1200 Mbps of total available bandwidth*
- 2 external antennas provide stable wireless connections and optimal coverage*
- Easy network management at your fingertips with the TP-Link Tether app
- Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- Supports Access Point mode to create a new WiFi access point
Specifications
Specifications Archer A54
| HARDWARE FEATURES | |

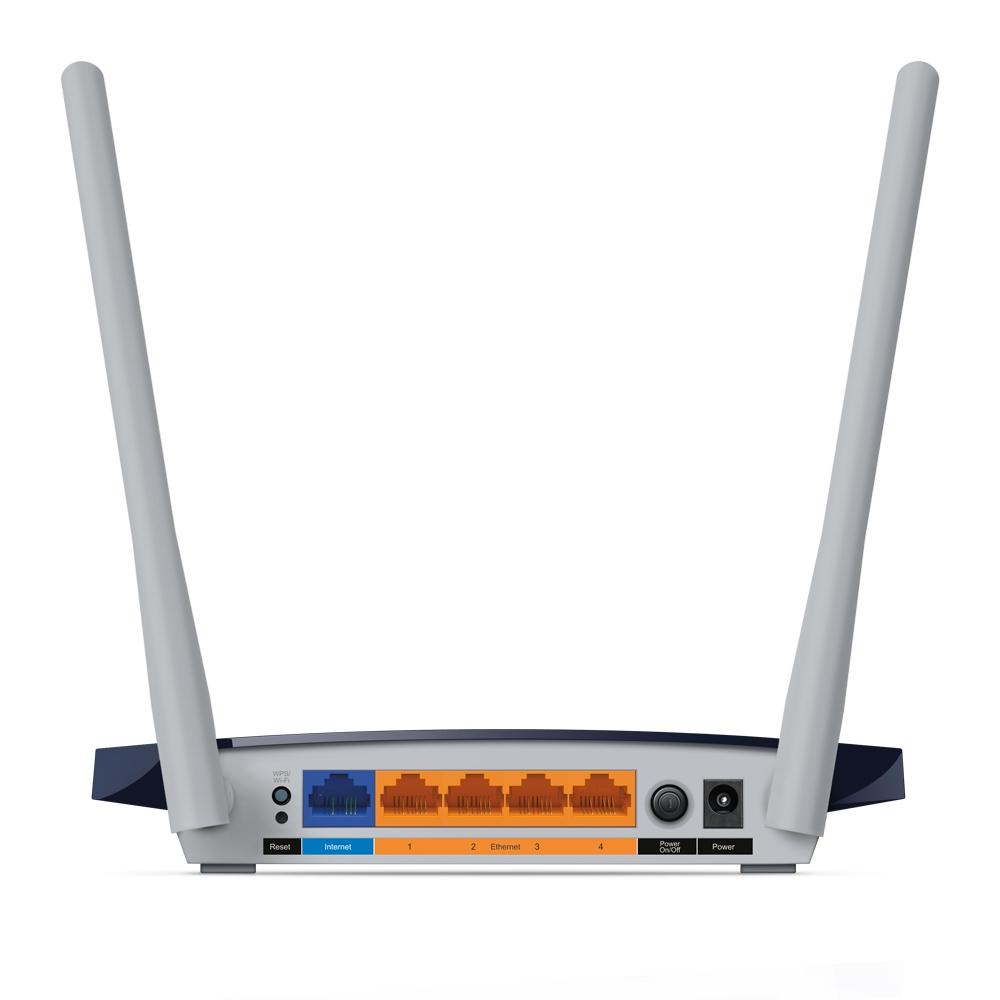

| Interface | 4 10/100 Mbps LAN Ports 1 10/100 Mbps WAN Port |
| Button | Reset Button WPS/Wi-Fi On/Off Button Power On/Off Button |
| External Power Supply | 12V DC / 1A |
| Dimensions ( W x D x H ) | 7.2 x 4.9 x 1.3 in. (182.95 x 123.5 x 32.1 mm) |
| Antenna Type | 2 external antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11n/g/b 2.4GHz IEEE 802.11ac/n/a 5GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 2.4 GHz: Up to 300 Mbps 5 GHz: Up to 867 Mbps |
| Reception Sensitivity | 5GHz: 11a 54M: -73dBm 11ac VHT20 MCS8: -68dBm 11ac VHT40 MCS9: -64dBm 11ac VHT80 MCS9: -60dBm 2.4GHz: 11g 54M: -76dBm 11n HT20 MCS7: -74dBm 11n HT40 MCS7: -71d |
| Transmit Power | FCC: <30dBm |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| SOFTWARE FEATURES | |
| Quality of Service | WMM, Bandwidth Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/ BigPond/ /L2TP(Dual Access) /PPTP(Dual Access) |
| Management | Access Control Local Management Remote Management |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, Comexe, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4 GHz guest network × 1 5 GHz guest network × 1 |
| OTHERS | |
| Certification | FCC, RoHS |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10 MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
