Product Information

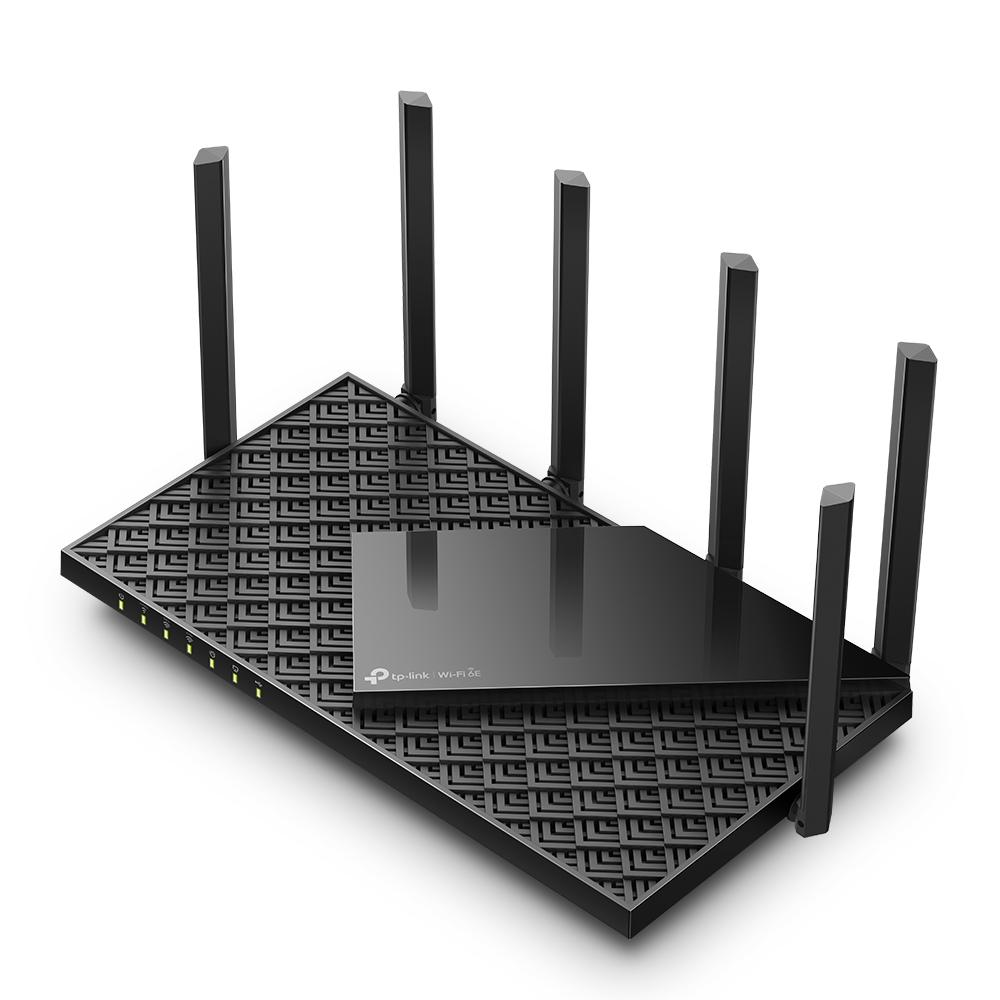

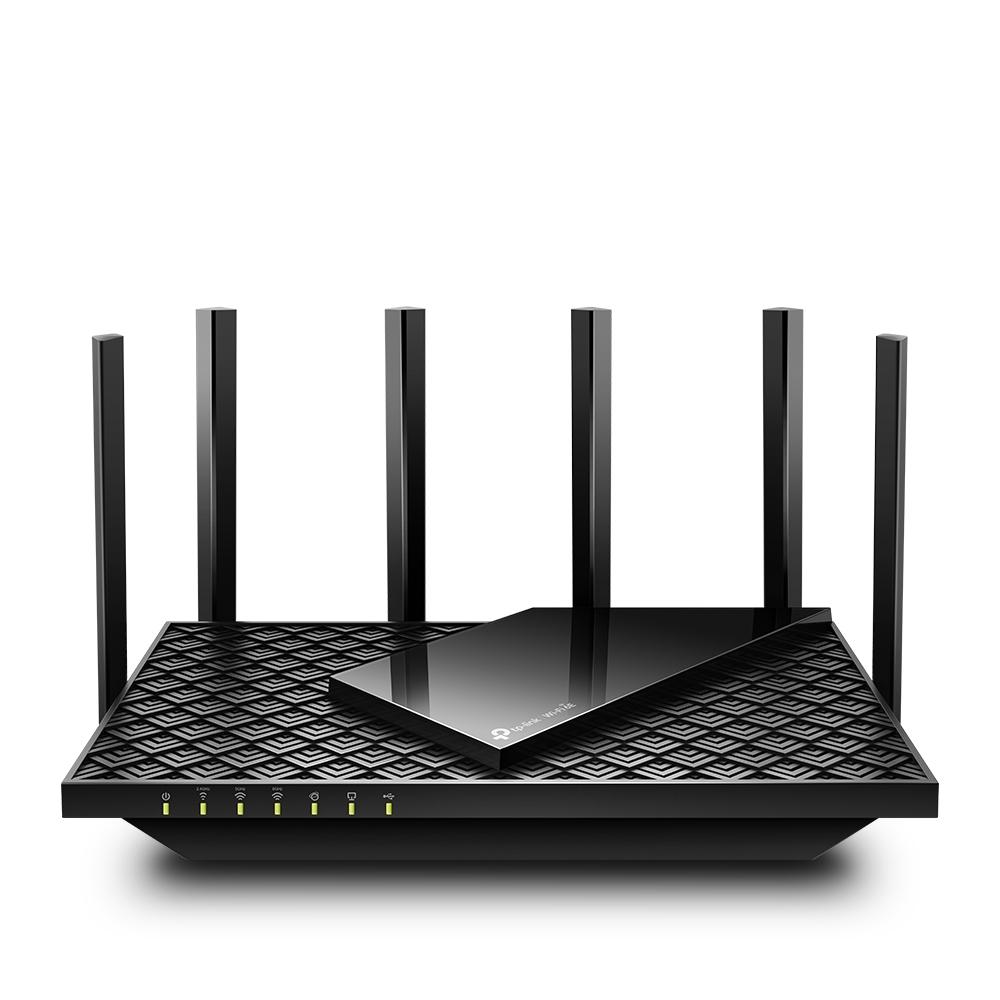

TP-Link Archer AXE75
AXE5400 Tri-Band Gigabit Wi-Fi 6E Router
WiFi 6E: A Freer and Faster Future
WiFi 6E introduces the brand new 6 GHz band without any overlap or interference from other bands and older devices. This means a congestion-free frequency that offers more bandwidth, faster speed, and lower latency.
Maximize All Your Device Speeds
Archer AXE75 provides WiFi speeds up to 5400 Mbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
More RAM, Better Processing
With an advanced chipset and high memory, experience fast connections with minimal latency even under heavy loads. Every click and tap on your laptop or phone responds quicker.
Connect More Stay Fast
The number of IoT devices today creates greater demands on home WiFi. Archer AXE75 future-proofs your home network with a higher capacity of up to 200+ devices. OFDMA and other advanced tech cut down the clutter throughout your frequency bands, eliminating latency and jitter.
WiFi Coverage Throughout Your Home
6× high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.
USB 3.0
Easily share files between connected devices with an external drive. Or create your own personal cloud storage for simple, secure access from anywhere.*
Flexibly Create Whole Home WiFi with Archer AXE75
OneMesh™ is a simple way to form a mesh network with a single WiFi name for seamless whole home coverage. Just connect a OneMesh™ range extender to a OneMesh™ router. No more searching for a stable connection.
Advanced Security for Your Everyday Devices
With TP-Link HomeShield, enjoy advanced secuirty features delivering a safe environment that protects your family and network's data and privacy.
WPA3: Stronger Security for Your Network
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AXE75 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.
Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.
New Connection Notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrade
Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.
Features:
- AXE5400 Tri-Band – AXE5400 Tri-Band Wi-Fi delivers Wi-Fi speeds up to 5400 Mbps.
- Cutting-Edge Processing – Armed with a 1.7 GHz Quad-Core CPU.
- SuperSpeed USB 3.0 – Up to 10× faster transfer speeds than USB 2.0.
- Wi-Fi 6E Unleashed – The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.
- HomeShield – Customize your home network with enhanced security and control.
- OneMesh™ – Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.
- Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
- Ultra-Low Latency—Enables more responsive gaming and video chatting.
- Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
Specifications
Specifications Archer AXE75
| Wireless | |
| Standards | IEEE 802.11ax 6 GHz, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)† |
| WiFi Range | 6× Fixed High-Performance Antennas, Beamforming |
| WiFi Capacity | Tri-Band, OFDMA, Airtime Fairness, DFS, 6 Streams |
| Working Modes | Router Mode, Access Point Mode |
| Hardware | |
| Processor | 1.7 GHz Quad-Core CPU |

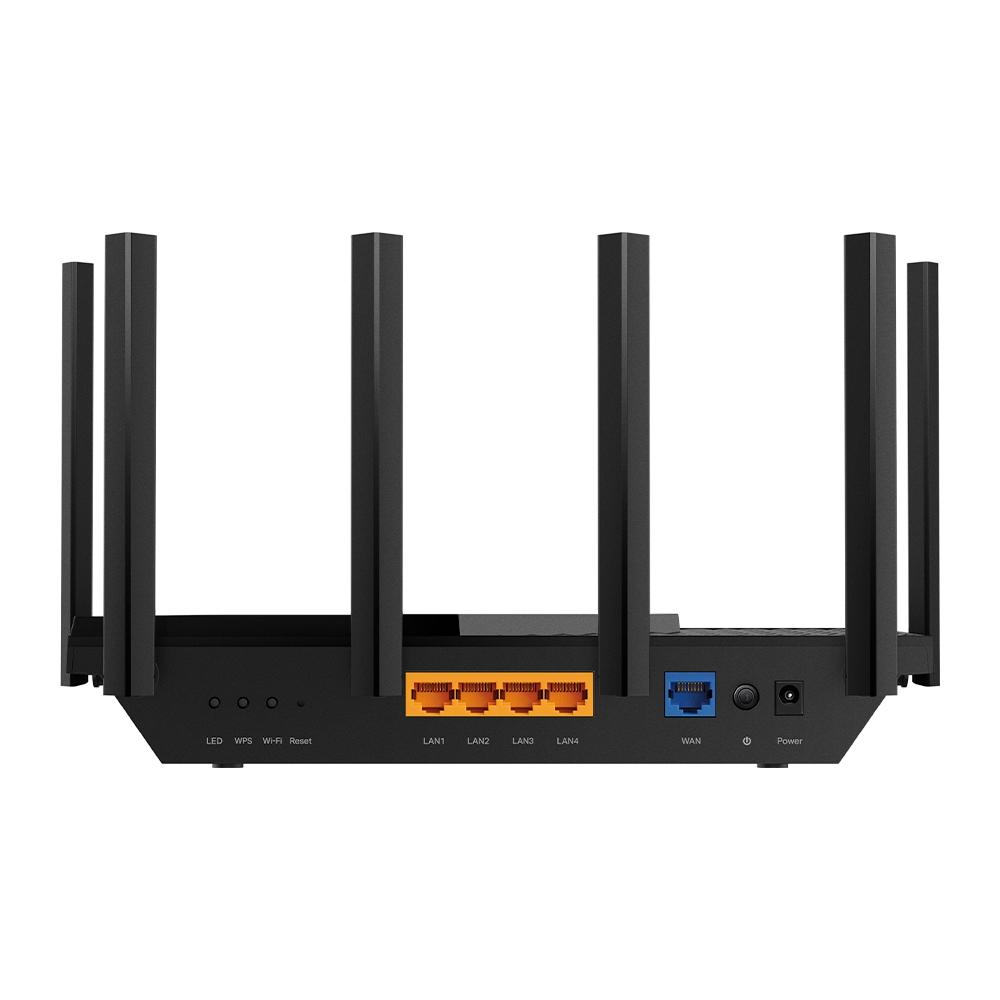

| Ethernet Ports | 1× Gigabit WAN Port, 4× Gigabit LAN Ports |
| USB Support | 1× USB 3.0 Port |
| Buttons | LED On/Off Button, WPS Button, Wi-Fi On/Off Button, Reset Button, Power On/Off |
| Button | |
| Power | 12 V/2.5 A |
| Security | |
| WiFi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application |
| Layer Gateway, HomeShield Security | |
| Guest Network: | 1× 6 GHz Guest Network, 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN, PPTP, L2TP VPN Server |
| VPN Client | OpenVPN, PPTP, L2TP VPN Client |
| Software | |
| Protocols | IPv4, IPv6 |
| Service Kits | HomeShield |
| OneMesh | Supported |
| Parental Controls | HomeShield Parental Controls |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Physical | |
| Dimensions (W×D×H) | 10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm) |
| Other | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing |
| Test Data | |
| WiFi Transmission Power | FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz) CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz) |
| WiFi Reception Sensitivity | 2.4 GHz: 11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm 5 GHz: 11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm 11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm 11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm 11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm 6 GHz: 11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm 11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm 11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm 11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm |
