External Power Supply | 12VDC/3.3A |

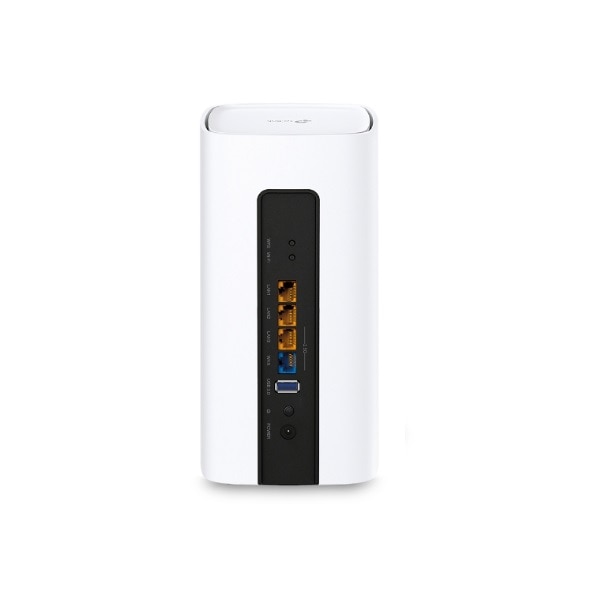

Interface | 1× 10/100/1000/2500 Mbps Ethernet WAN Port1× 10/100/1000/2500 Mbps Ethernet LAN Port 2× 10/100/1000 Mbps Ethernet Ports 1× USB 3.0 Port | |
|
Button | Power On/Off Button, Reset Button, Wi-Fi On/Off Button, WPS Button |
Dimensions ( W x D x H ) | 4.5 × 4.5 × 9.1 in (115 × 115 × 232 mm) |
Antenna Type | High-Performance Internal antennas |
WIRELESS FEATURES | |
Frequency | 2.4 GHz, 5 GHz, and 6 GHz |
Signal Rate | 574 Mbps on 2.4 GHz4804 Mbps on 5 GHz 2402 Mbps on 6 GHz* | |
|
Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics, Multi-SSID, Guest Network, TX Beamforming |
Wireless Security | WPA/WPA2/WPA3 Personal |
Wireless Standards | IEEE 802.11ax 6 GHzIEEE 802.11a/n/ac/ax 5 GHz IEEE 802.11b/g/n/ax 2.4 GHz | |
|
Transmission Power | CE: <20 dBm (2.4 GHz); <23 dBm (5 GHz); <23 dBm (6 GHz) |
Wireless Schedule | Supports 2.4 GHz, 5 GHz, and 6 GHz Wireless Schedule |
Mesh Technology | EasyMesh Compatible, Seamless Roaming, Self-healing, Support 802.11k/v/r |
SOFTWARE FEATURES | |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP/Bridge |
DHCP | Server, DHCP Client List, Address Reservation |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | DynDns, NO-IP |
VPN Pass-Through | IPSec, PPTP, L2TP |
Access Control | Parental Controls, Local Management, Host List, White/Black List |
Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
Management | Local management: WebGUI management, Aginet app managementRemote management: TR-069, TR-181, TR-369, TR-111, TR-143 Cloud management: TAUC (TP-Link Aginet Unified Cloud) | |
|
Advanced Features | QoS (Quality of Service), Cloud Firmware Upgrade, Network Diagnostic, Traffic Statistic, 1024-QAM, MU-MIMO, OFDMA |
Protocols | IPv4, IPv6 |
Operating Modes | Router, Access Point |
VPN Server | PPTP, OpenVPN, IPSec |
Environment | Operating Temperature: 0℃–40℃ (32℉–104℉) Storage Temperature: -40℃–60℃ (-40℉–140℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing | |
|
Certifications | FCC |
Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) |
|
