TP-Link AC1200 Dual Band Wi-Fi Range Extender
- SKU: RE305
Product Information

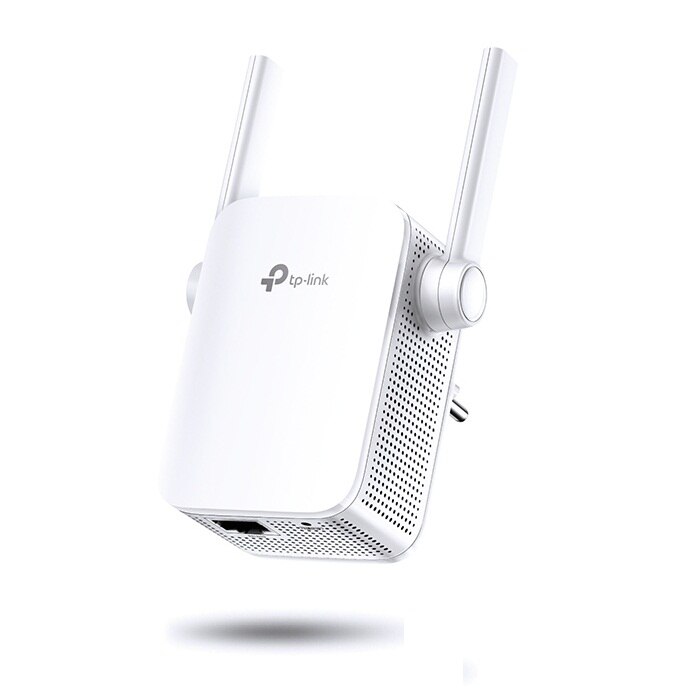

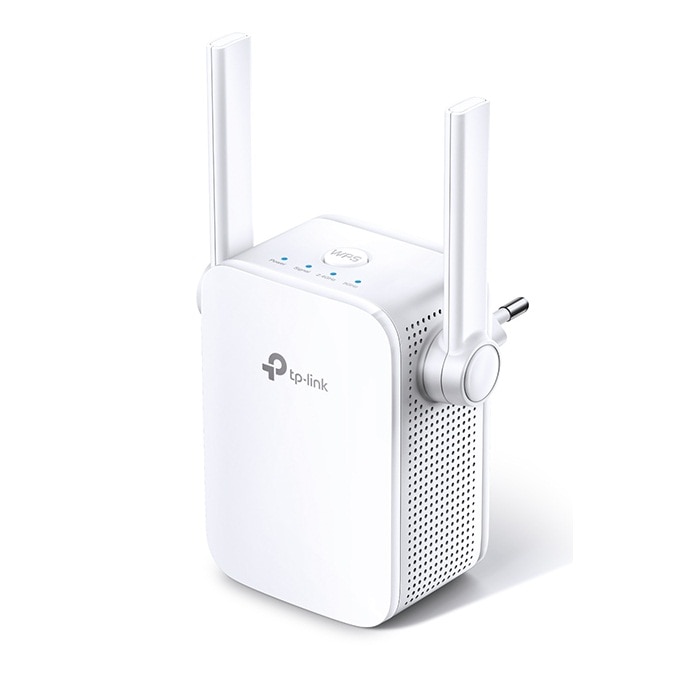

TP-Link RE305
AC1200 Dual Band Gigabit WLAN Repeater
Stable Dual Band Wi-Fi Extension to Bring Dead Zones to Life
Easily extend your Wi-Fi Coverage*
Do you have enough wireless wi-fi in your apartment? The RE305 Range Extender connects wirelessly to your WLAN router and expands its signal to previously unattained points. At the same time, interference is reduced to ensure reliable WLAN.
High-Speed Dual Band Wi-Fi for Better Connections
The RE305 lets you keep more devices* connected at the same time with its 2.4GHz 300Mbps and 5GHz 867Mbps dual bands. Use the 2.4GHz band to send email and browse the web, and the 5GHz band for gaming and HD streaming.
Perfect Location at a Glimpse
An Intelligent Signal light helps you quickly find the best location to install the RE305.
Built-in Access Point Mode
RE305 is more than a wireless range extender. Simply plug the Ethernet cable into its Ethernet port to easily turn your wired internet connection into a dual band wireless access point.
Easy Management and Remote Control
The RE305 works with all Wi-Fi routers. You can use TP-Link's free Tether app to set up the range extender from any Android or iOS device in minutes. This feature-rich phone app allows you to enjoy not only hassle-free installation, but also access to advanced network management, all at your fingertips.
Features:
- Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 1.2Gbps
- Operates over both the 2.4GHz band(300Mbps) and 5GHz band(867Mbps) for more stable wireless experience*
- Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength
- Works with any Wi-Fi router or wireless access point
Specifications
Specifications RE305
| HARDWARE FUNCTIONS | |
| Connector type | EU UK US |
| Standards and protocols | IEEE802.11ac IEEE802.11n IEEE802.11g IEEE802.11a IEEE802.11b |
| interface | 10 / 100Mbit / s Ethernet port (RJ45) |
| button | WPS Reset |
| power consumption | Max. 7.3W |
| antenna | 2 external ones |
| Dimensions (B * T * H) | 3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm) |
| WLAN FUNCTIONS | |
| frequency | 2.4GHz & 5GHz(11ac) |
| Signal rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbbs |
| Receiver sensitivity | 5GHz: 11a 6Mbps: -91dBm at 10% PER 11a 54Mbps: -74dBm at 10% PER 11ac HT20 mcs8: -68dBm at 10% PER 11ac HT40 mcs9: -63dBm at 10% PER 11ac HT80 mcs9: -59dBm at 10% PER 2.4GHz: 11g 54M: -79dBm at 10% PER 11n HT20 mcs7: -77dBm at 10% PER 11n HT40 mcs7: -74dBm at 10% PER |
| WLAN modes | Repeater / Accesspoint WLAN statistics Dual band operation |
| WLAN features | WLAN statistics Dual band operation Access control LEDs can be switched off Login via domain name |
| WLAN security | WEP with 64/128 bit WPA-PSK / WPA2-PSK |
| Transmission power | Max. 17dBm (2.4GHz) max. 17dBm (5GHz) |
| OTHERS | |
| Certification | CE FCC RoHS |
| Dimensions of package (B * T * H) | 156.5mm * 101.5mm * 95mm |
| System requirements | All common |
| Surroundings | Operating temperature: 0 ° C..40 ° C Storage temperature: -40 ° C..70 ° C Operating humidity: 10% .. 90%, non-condensing Storage humidity: 5% .. 90%, non-condensing |
