TP-Link 14-Slot Rackmount Chassis
US$199.99
Product Information

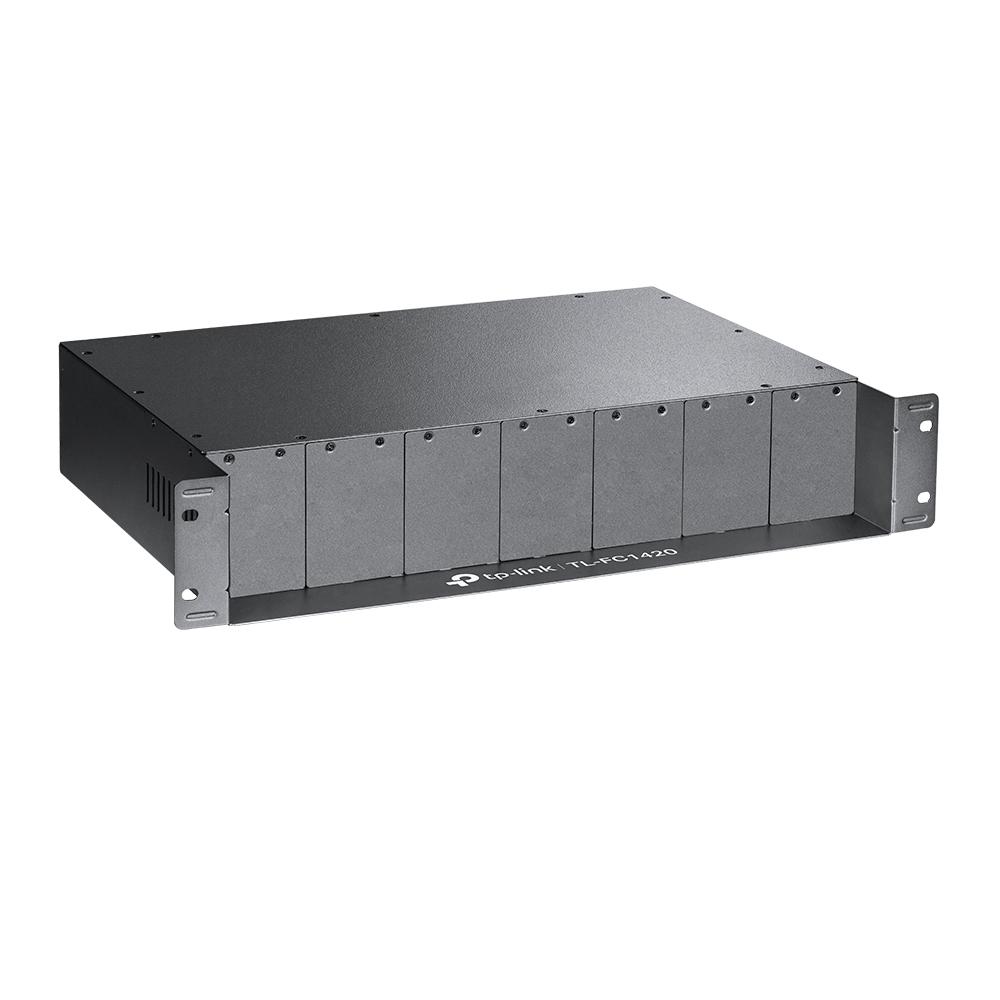

TP-Link TL-FC1420
14-Slot Rackmount Chassis
The TL-FC1420 14-Slot Rackmount Chassis is specially designed to accommodate 14 TP-Link's Media Converters for central power supply, saving space and power cables. Continuous operation is of great importance to fiber communication, so the chassis is equipped with optional redundant power supply and Hot-Swapping function which allows installing/removing the converter without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed internally. Together with FC series Gigabit / Fast Ethernet media converters, TL-FC1420 is the ideal solution for your media conversion network.Features:
- 14 bays to house up to 14 media converters

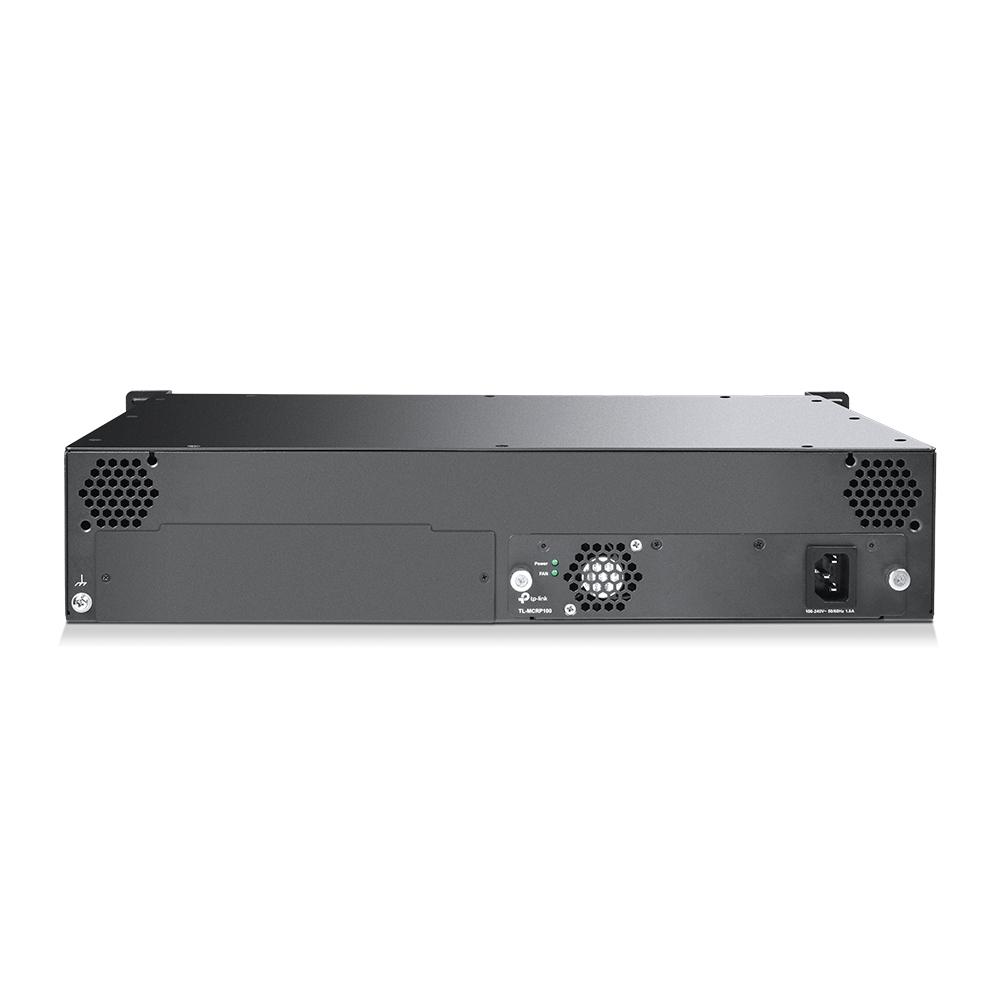

- Optional redundant power supply to ensure non-stop reliable operation
- Hot-Swappable; easy & quick replacement of converter
- Mounted two cooling fans for better ventilation
Specifications
Specifications
| Fan Quantity | 2 |
| MEDIA CONVERTER & MODULE | |
| AC Power Supply | 100-240VAC, 50/60Hz |
| Power Output | 14× 5VDC/0.6A |
| Dimensions (W*D*H) | 19.0*12.2*3.4in.(482*309*86) Standard 19-Inch, 2U height |
| EnvironmentOperating Temperature | 0℃~50℃ (32℉~122℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
