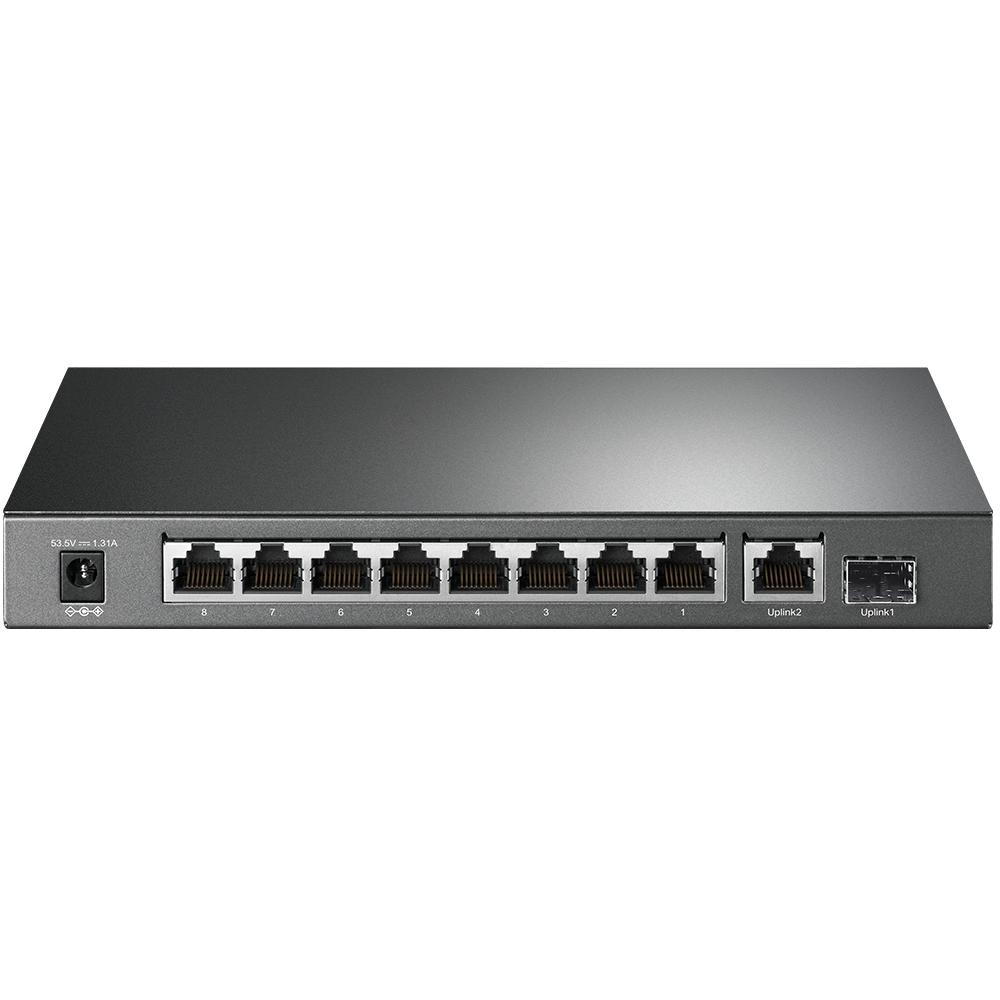

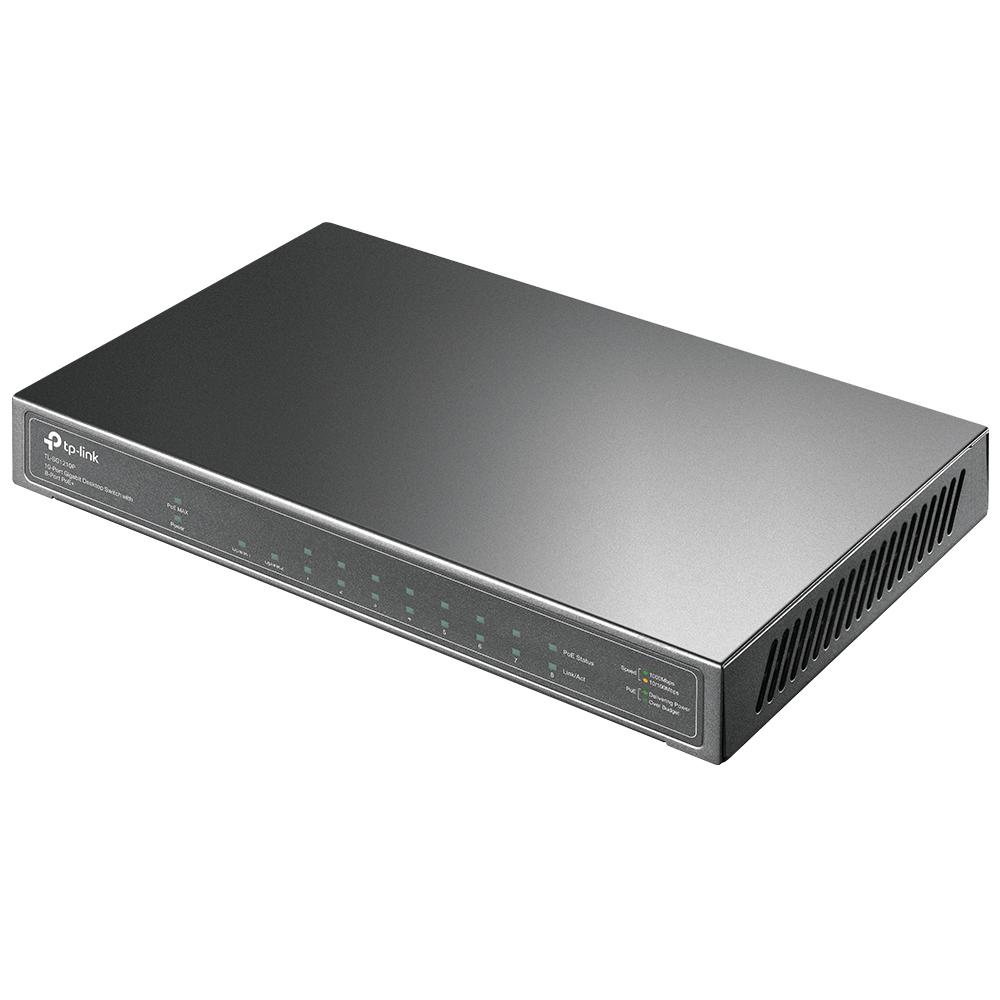

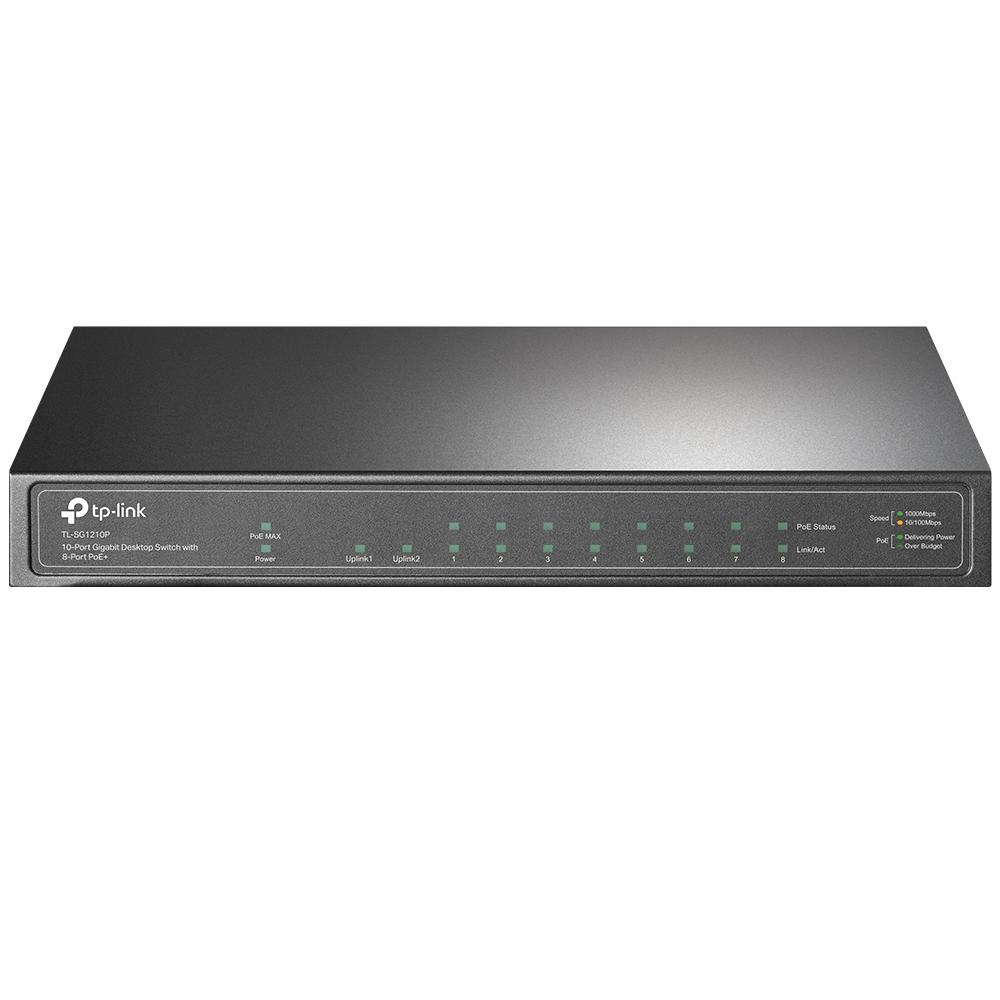

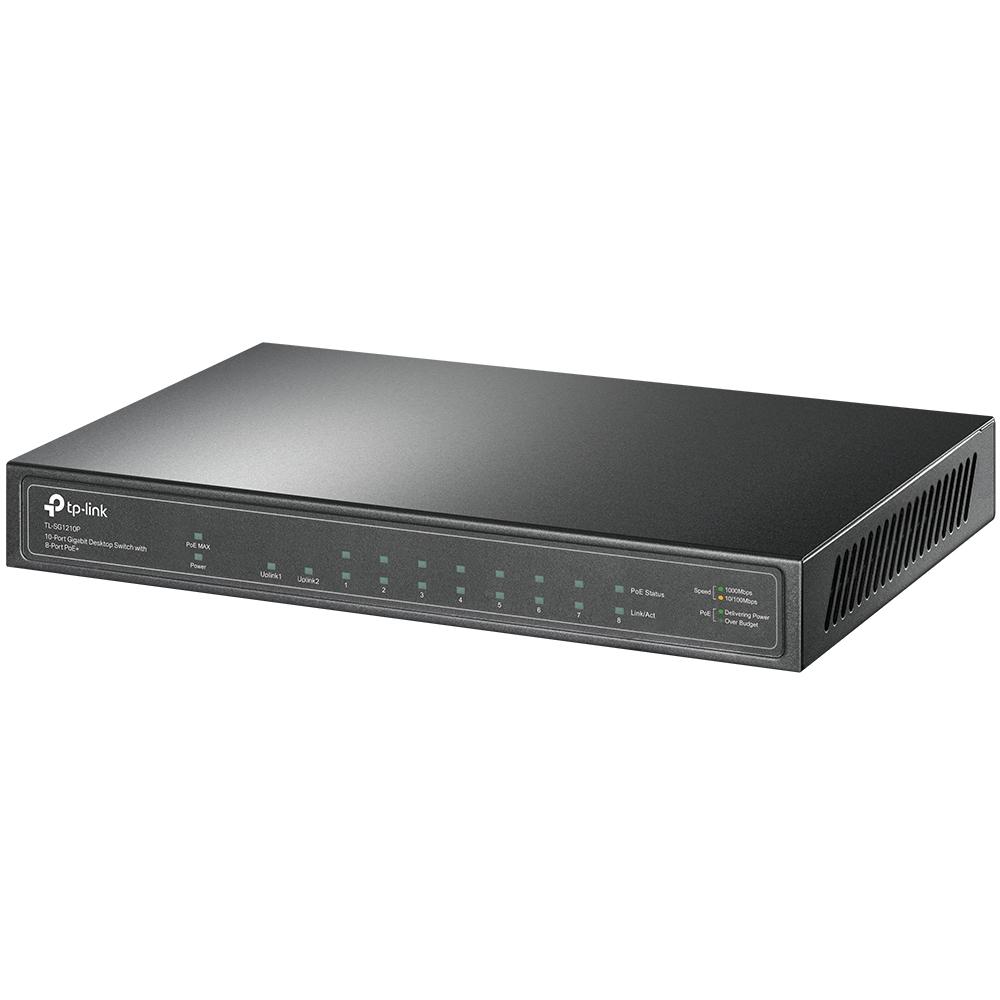

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+
- SKU: TL-SG1210P
Product Information
TP-Link TL-SG1210P
10-Port Gigabit Desktop Switch with 8-Port PoE+
Power over Ethernet
Ports 1-8 of the switch support Power over Ethernet (PoE). These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption exceeds 63W, intelligent power management will turn off the lower priority port power to ensure high priority ports' power supply and protect the device from power overload.
Advanced Functions for Higher Performance
Qos For Fluent Online Experience
Administrators can use QoS to designate the priority of traffic. For example, prioritize cameras or IP-telephones to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Sturdy Metal Casing
TL-SG1210P features a sturdy and compact metal casing, flexible desktop/wall-mounting option, and fanless design to ensure quiet operation.
Features:
- 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
- With 8 PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs and expands office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
- Easy to use, with no configuration and installation needed
Specifications
Specifications TL-SG1210P
| HARDWARE | |
| Interface | 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port 8 PoE Power Budget: 63W |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 20 Gbps |
| Dimensions ( W x D x H ) | 209 × 126 × 26 mm |
| Max Power Consumption | 7.11 W (220/50Hz. no PD connected) 78.13 W (220/50Hz. with 63W PD connected) |
| Max Heat Dissipation | 24.25 BTU/h (no PD connected) 266.42 BTU/h (with 63W PD connected) |
| SOFTWARE | |
| Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | FCC |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
