Ubiquiti Networks Talk Telephone Adapter
- SKU: UT-ATA-US
$99.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information

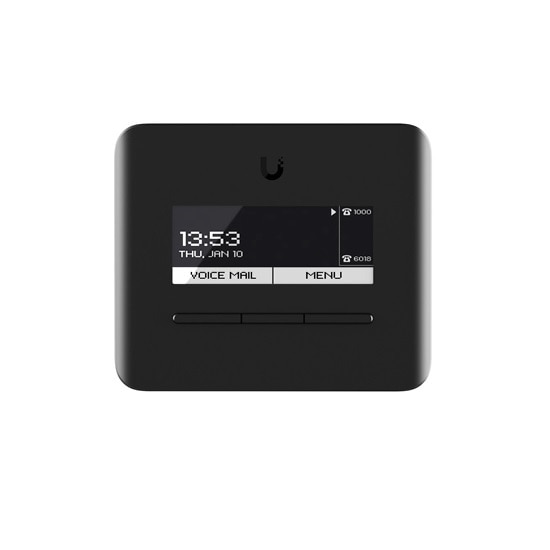

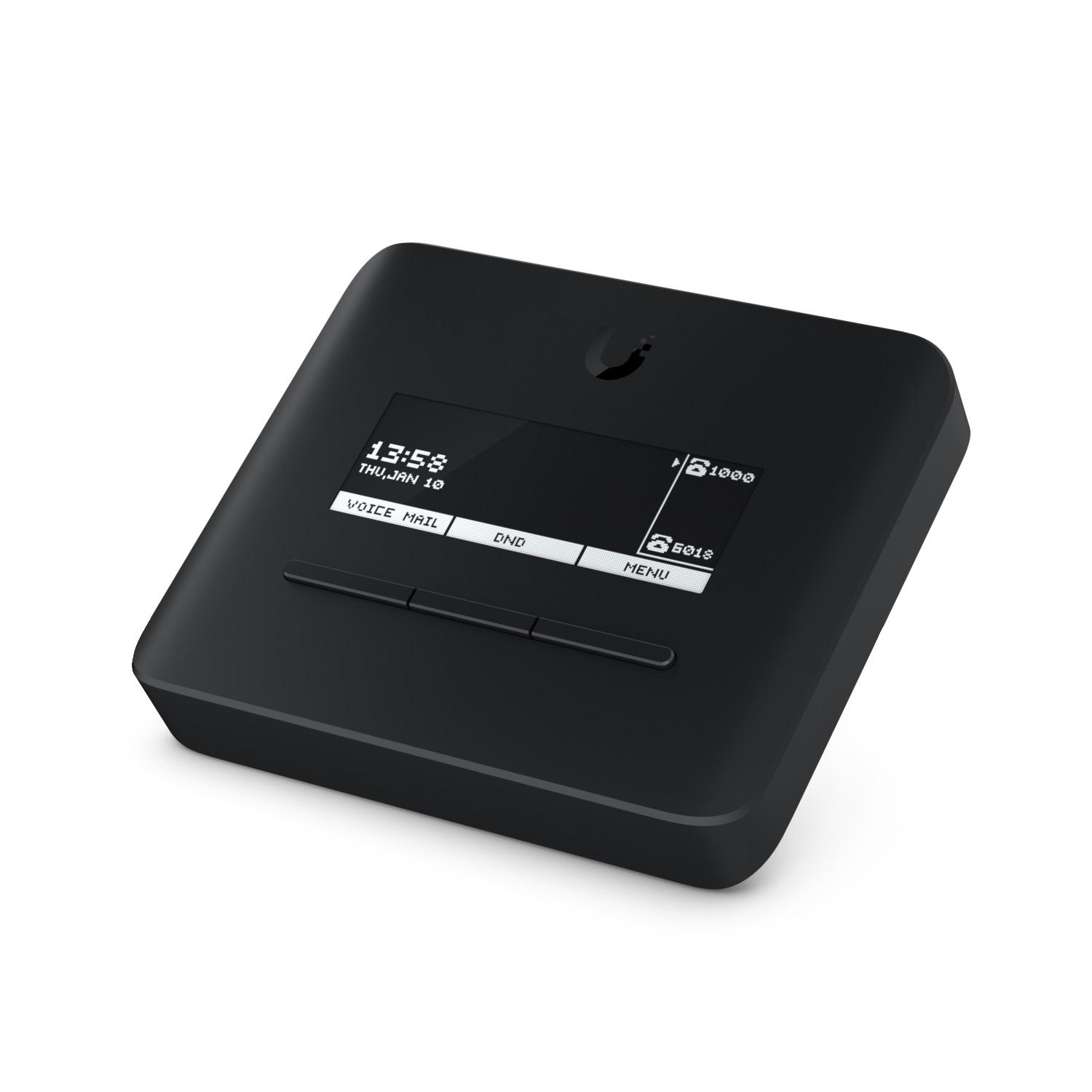

Ubiquiti Networks UT-ATA
Talk Telephone Adapter
Easy-to-deploy adapter for managing analog telephones and fax machines with UniFi Talk.
Features:

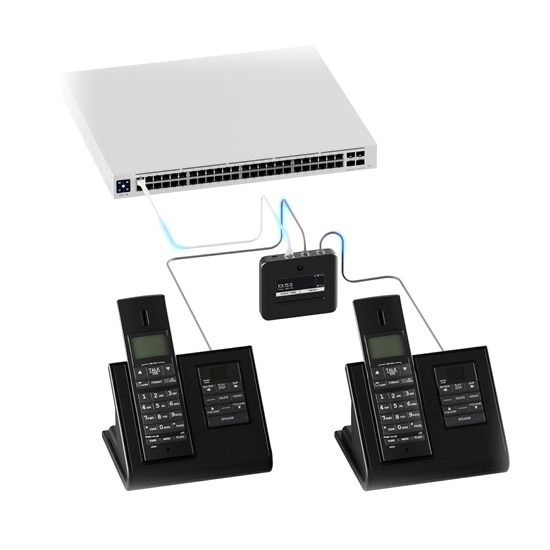

- (2) RJ11 FXS ports for analog telephones and fax machines*
- Fax support using G.711

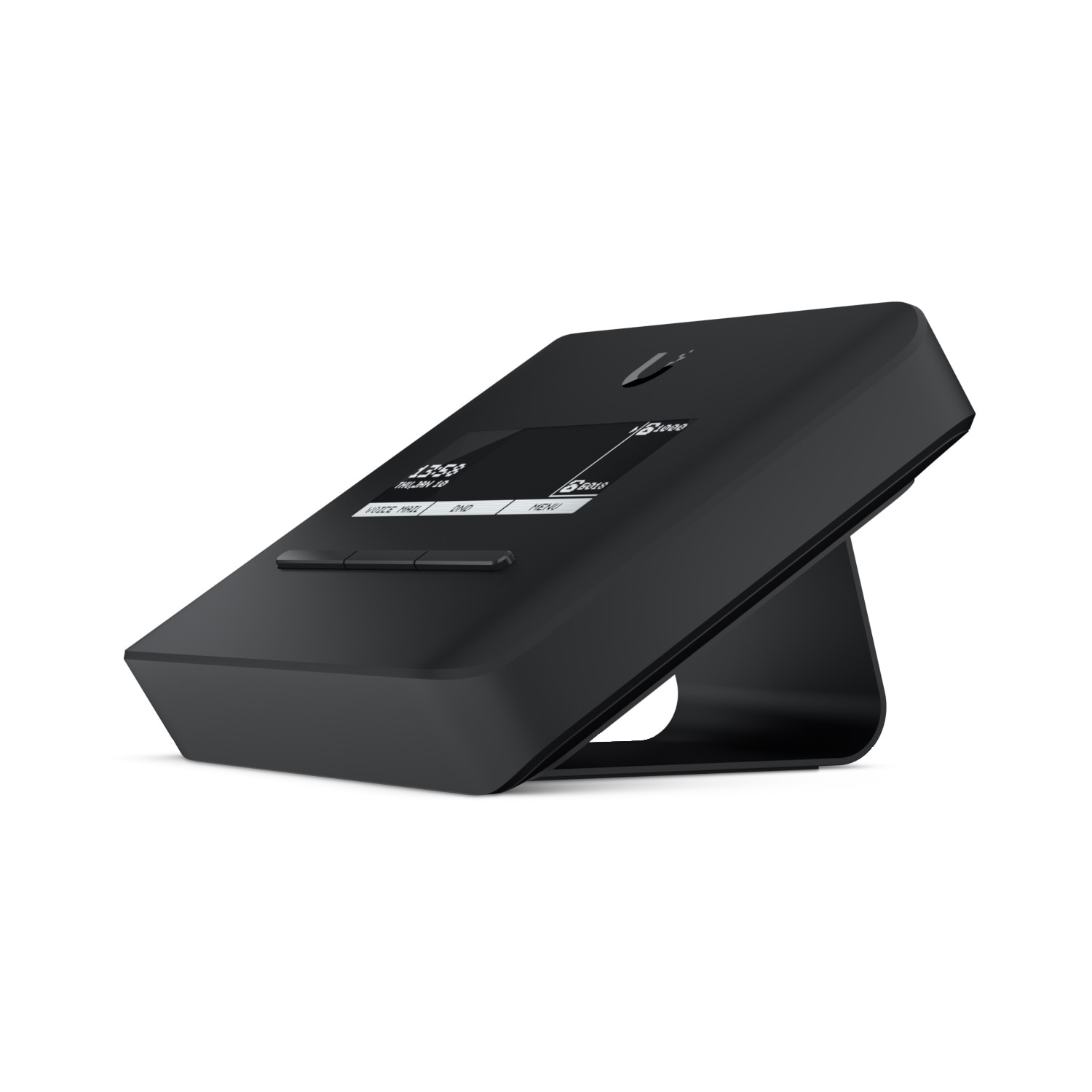

- Multiple mounting options
- WiFi support with UniFi WiFi Auto-Link**
- PoE in or USB-C adapter power
- In Canada, managed with the UniFi Talk application version 1.21.0 and later
Specifications
Specifications UT-ATA

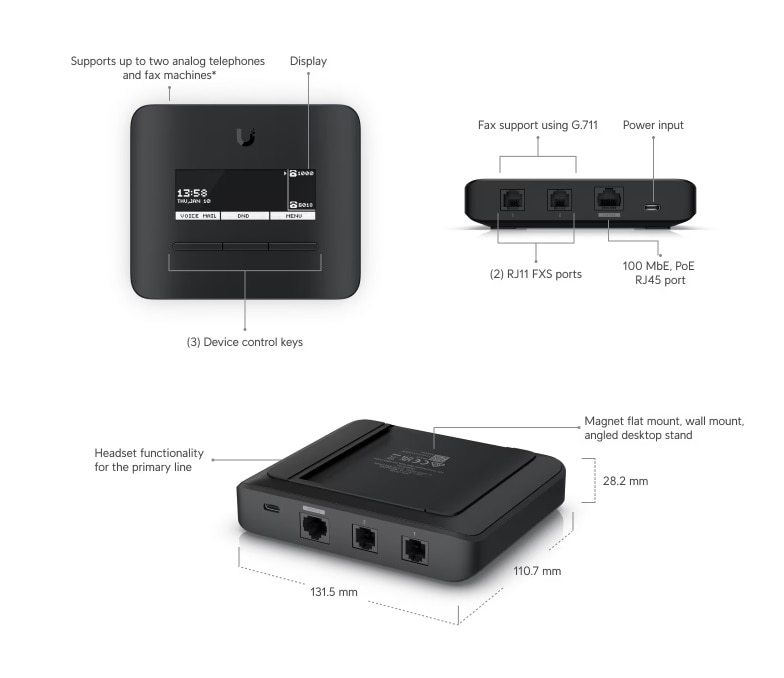

| Dimensions WxDxH | 131.5 x 110.7 x 28.2 mm (5.18 x 4.36 x 1.11") |
| Weight | 300 g (10.58 oz) |
| Enclosure material | Plastic |

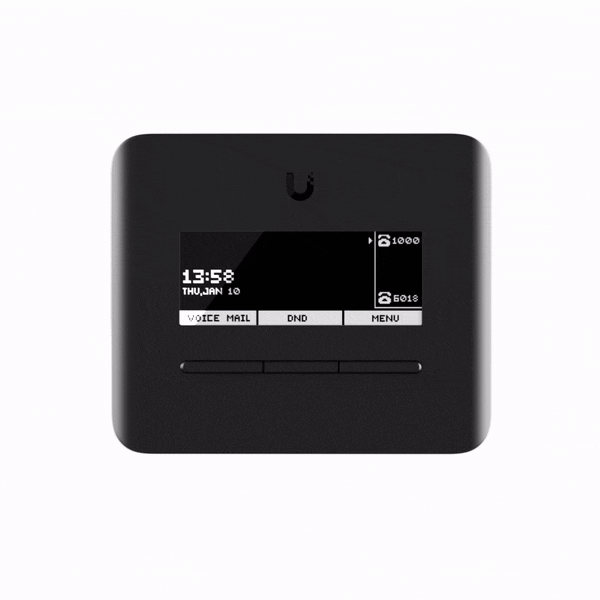

| Display size | 86.04 mm (3.39") diagonal |
| Resolution | 192 x 64 dots |
| RAM | 128 Mb DDR3 |
| Storage | 256 Mb |
| Power method | USB-C 5VDC, 1A PoE 48VDC/0.35A |
| Power supply | 5VDC, 1A power adapter, 1.5 m cord (included) PoE (pair B 4, 5+; 7, 8-) |

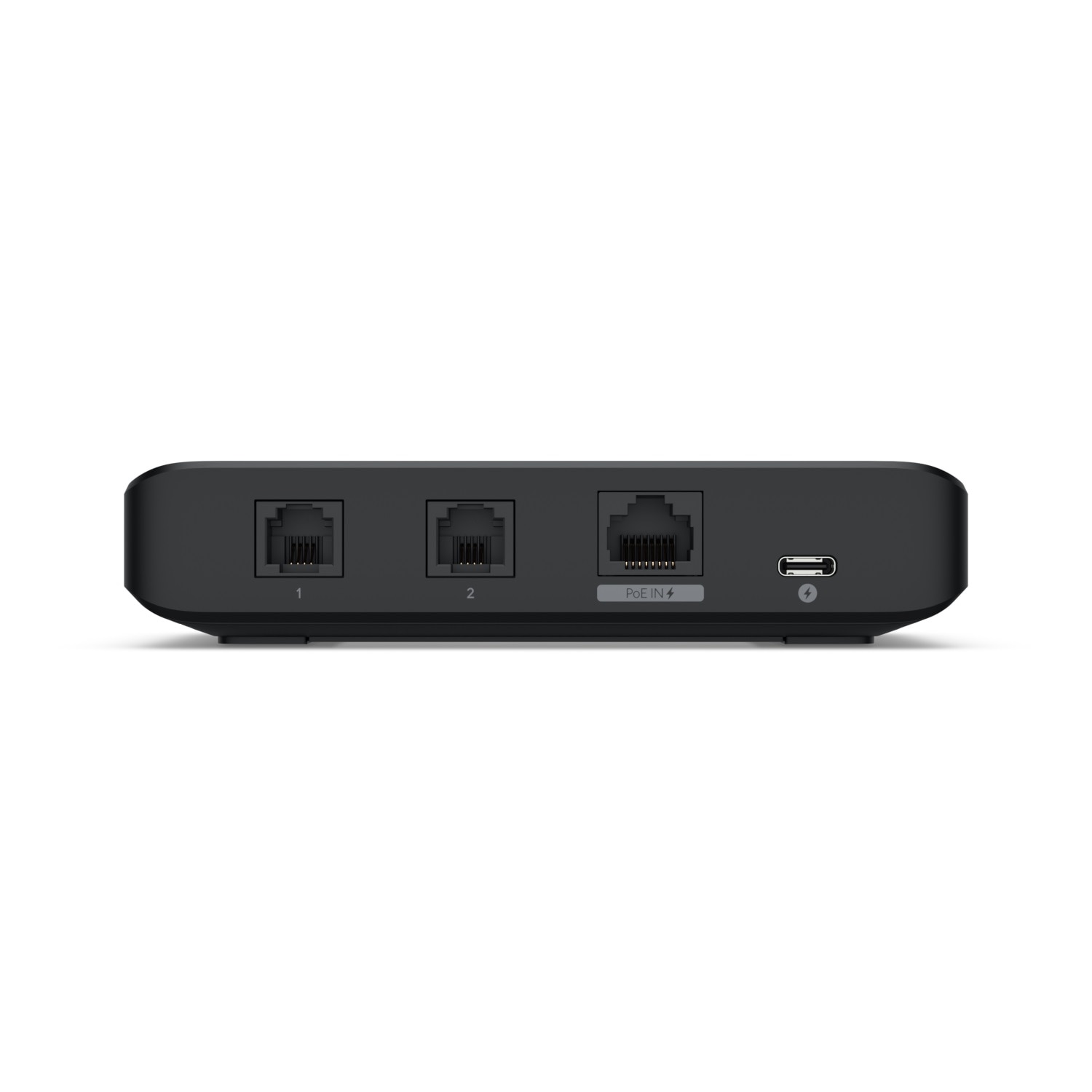

| Connectivity | (1) 100 MbE RJ45 port/PoE (1) 3.5 mm (0.14") headset port (2) RJ11 FXS ports (1) USB-C (power input) 802.11a/b/g/n/ac WiFi 2.4G b/g/n, BW 20 WiFi 5G a/n/ac, BW 20/40/80 |
| Buttons | (3) Device control keys |
| Telephone features | Voicemail, DND, caller ID, call transfer, call waiting, 3-way conference |
| Operating temperature | 0 to 40° C (32 to 104° F) |
| Operating humidity | 10 - 90% noncondensing |
| Certifications | FCC, IC, CE |
| Fax over IP | Fax pass-through using G.711 |
| Voice codec | G.711 u/a |
| Number of supported phone lines | 2 |
| Management application | UniFi Talk Version 1.12.0 and later |
