  • Ubiquiti Compact 802.11ac Wave2 MU-MIMO Enterprise Access Point

Ubiquiti Compact 802.11ac Wave2 MU-MIMO Enterprise Access Point

(0)No Reviews yet
  • SKU: UAP-nanoHD-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download

Product Information

Ubiquiti UAP-NanoHD

Compact 802.11ac Wave2 MU-MIMO Enterprise Access Point

2x2 MIMO on 2.4GHz (300Mbps max PHY rate), 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate)

Power over Ethernet (PoE) Standard

The UniFi nanoHD AP can be powered by an 802.3af PoE compliant switch. We recommend powering your UniFi devices with a UniFi PoE switch (sold separately). The UniFi nanoHD AP is compatible with all UniFi PoE switches and 48v adapters.

Superior Processing Power

The UniFi nanoHD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.

Scalable Enterprise WiFi Management

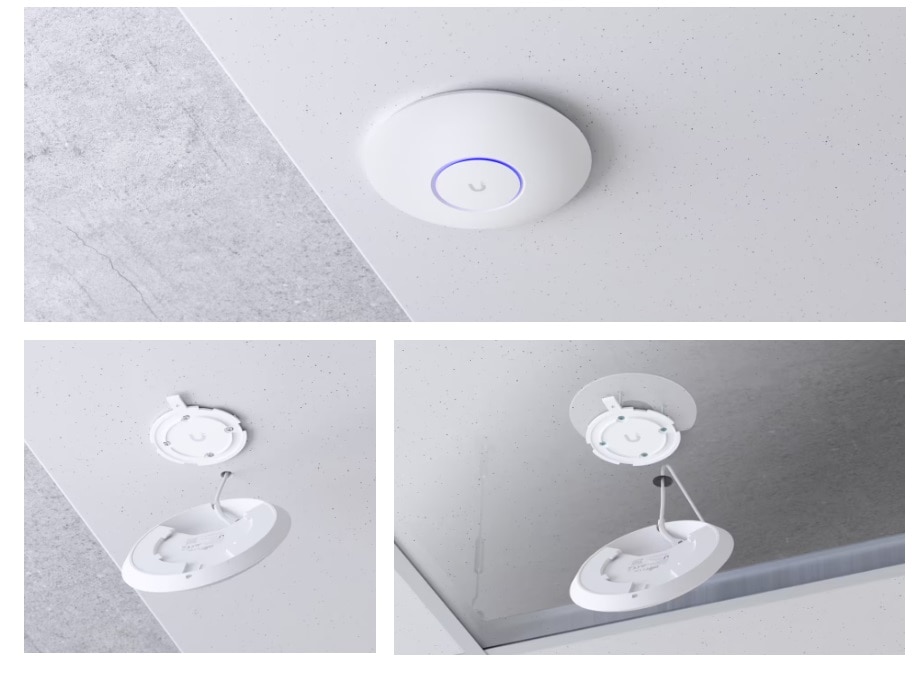

UniFi is the revolutionary WiFi system that combines enterprise performance, unlimited scalability and a central management controller. The UniFi nanoHD AP has a refined industrial design and can be easily installed using the incuded mounting hardware.

Easily accessible through any standar web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requireing low latency and high uptime performance. Use the UniFi Controller software to quicly configure and administer an enterprise WiFi network - no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced secuirty options are all seamlessly integrated.

Save Money and Time

UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the opton of deploying the compact UniFi Cloud Key with built-in software.

Powerful Hardware

The UniFi nanoHD AP features the latest in WiFi 802.11ac Wave 2 MU-MIMO technology.

Intuitive UniFi Controller Software

Configure and manage your APs with the easy-to-learn user interface.

Expandable

Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a three or five pack) and expand to thousands while maintaining a single unified management system.

Extend Your Coverage

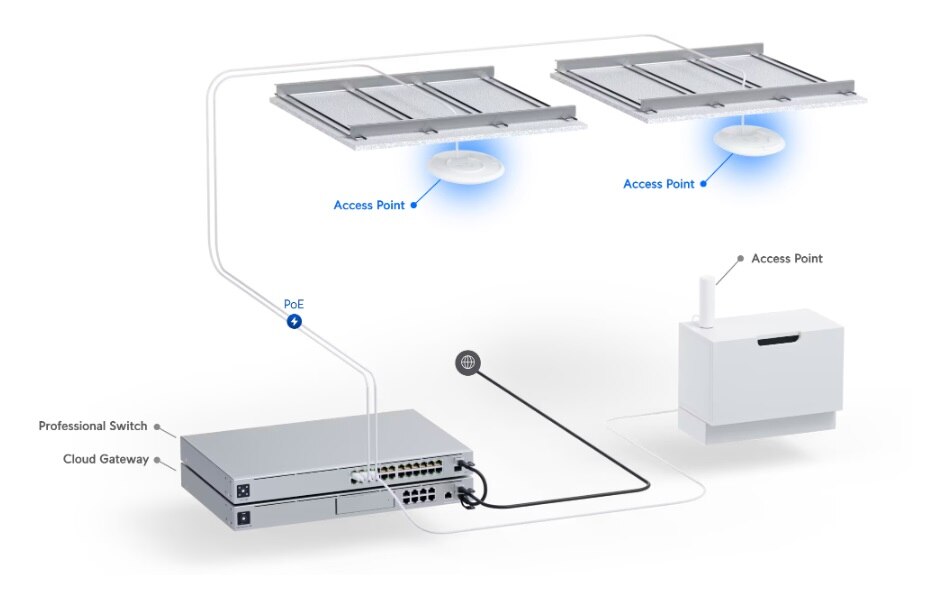

With the UniFi Controller software running in a NOC or in the cloud, administrators can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers.

Specifications

Specifications UAP-NanoHD

Wireless transmission speed 2.4 GHz Radio Rate - 300 Mbps
5 GHz Radio Rate - 1733 Mbps
Operating Frequency 2.4GHz 5GHz
Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2
Encryption WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

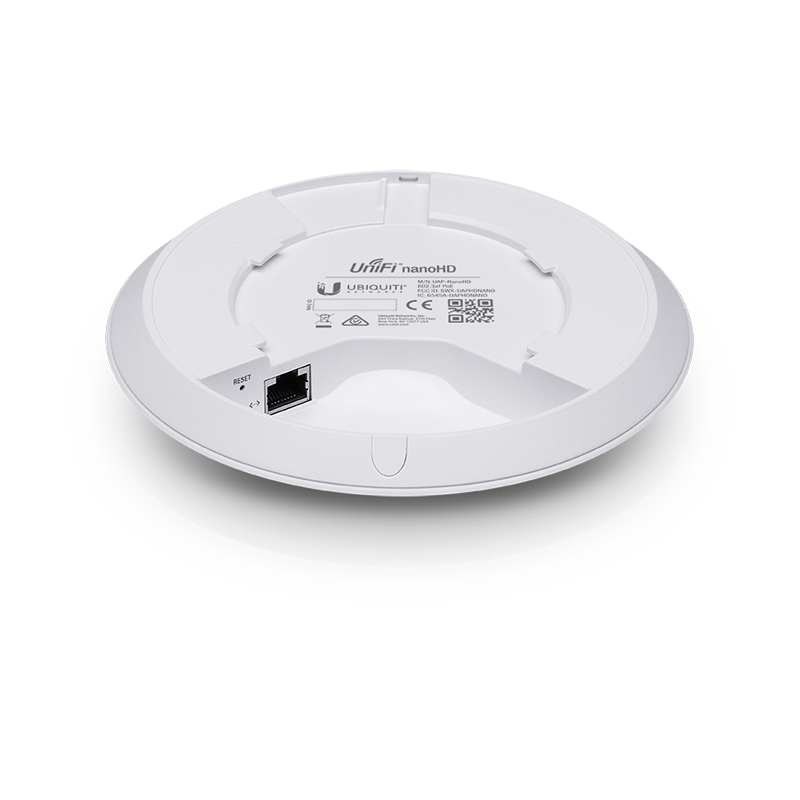

Interfaces (1) 10/100/1000 Ethernet Port
Max. TX Power 2.4 GHz - 23 dBm 5 GHz - 26 dBm
Gain 2.4 GHz - 2.8 dBi 5 GHz - 3 dBi
Max. Power Consumption 10.5W

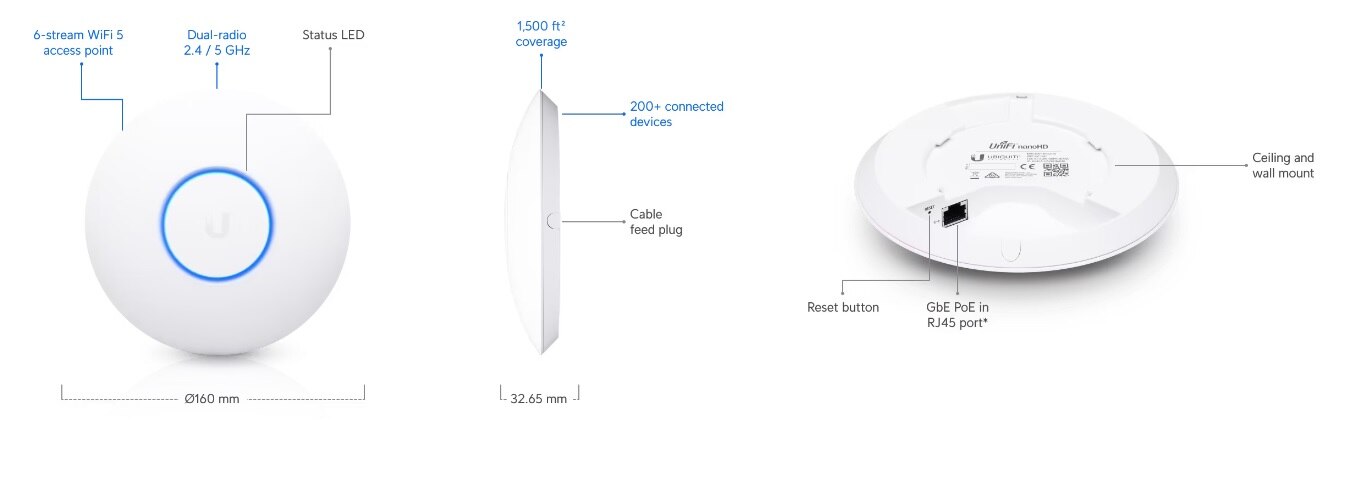

Dimensions 160 x 160 x 32.65 mm (6.30 x 6.30 x 1.29")
Weight 315 g (11.1 oz)
Power Supply (PoE) PoE adapter 1 Gbps 48 V, 0.5 A or UniFi Switch
Power Method 802.3af PoE
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
