Product Information
Adtran 1287933F1

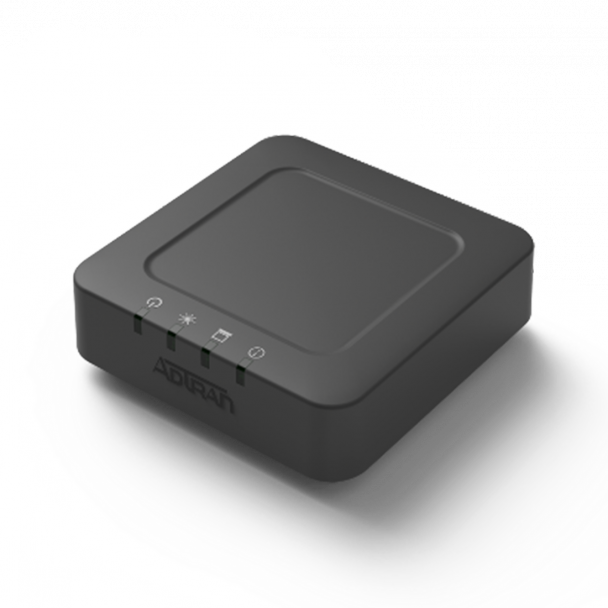

SDX 611 GPON Simple ONT
Adtran’s 611 is an indoor, 1 Gbps GPON ONT featuring a 1GE interface.
Features:
- Deliver Cost-Effective Converged Residential and Business Services
- Zero-touch Service Provisioning Eliminates Truck Rolls for Service Upgrades
- Manage an End-to-End PON Deployment with Productivity Tools for Monitoring, Troubleshooting, Provisioning, and Upgrading Networks
- Traffic Management Through Priority Queueing, Scheduling, Policing, and Traffic Shaping
Specifications
Specifications 1287933F1
| Ethernet Interfaces | ■ RJ-45 for 10/100/1000Base-T ■ 1 Gbps LAN ■ Ethernet Port Auto Negotiation or Manual Configuration ■ MDI/MDIX Automatically Sense ■ Hardware Priority Queues on the Downstream Direction in Support of CoS |
| Ethernet Services Support | ■ 802.1D Bridging ■ 802.1x Authentication ■ Eight Queues, Strict Priority and/or Weighted Fair Queue Schedulers ■ Configurable to EtherType and TPID for Service Flexibility ■ VLAN IDs 0 – 4095; EVC Configurable in the Range of 2 – 4,094 ■ Virtual Switch Based on 802.1q VLAN ■ VLAN Tagging/Detagging ■ VLAN Stacking (Q-in-Q) and VLAN Translation ■ Class of Service Based on VLAN-ID, 802.1p Bit ■ Marking/Remarking of 802.1p |
| Mosaic Application Support | ■ Mosaic Activate ■ Mosaic Subscriber Insight |
| Working Environment | ■ Temperature: 32° F to 104° F (0° C to +40° C) ■ Relative Humidity: 5% to 95%, Non-condensing |
| Network Interface | ■ GPON optical interface BOSA on Board (BoB) ■ Compliant with ITU-T G.984.2 GPON standards ■ Class B+ optics support |
| OAM | ■ OMCI (Embedded Operations Channel Interface) per ITU-T G.988 and Open OMCI standards ■ 15 min rolling counters ■ Dying gasp alarm |
| LEDS | ■ Power ■ LAN ■ Optical ■ Status |
| Regulatory | ■ ETSI EN 300 019-1-3.cl3.2 (V2.3.2) for ONT and power supply ■ ETSI EN 300 119 for ONT and power supply ■ ETS 300 753 for ONT and power supply ■ CISPR 32 Class B ■ FCC CFR 47 Part 15 Class B |
