Product Information
Adtran 1287943F1
XGS-PON Optical Network Terminals (ONTs)

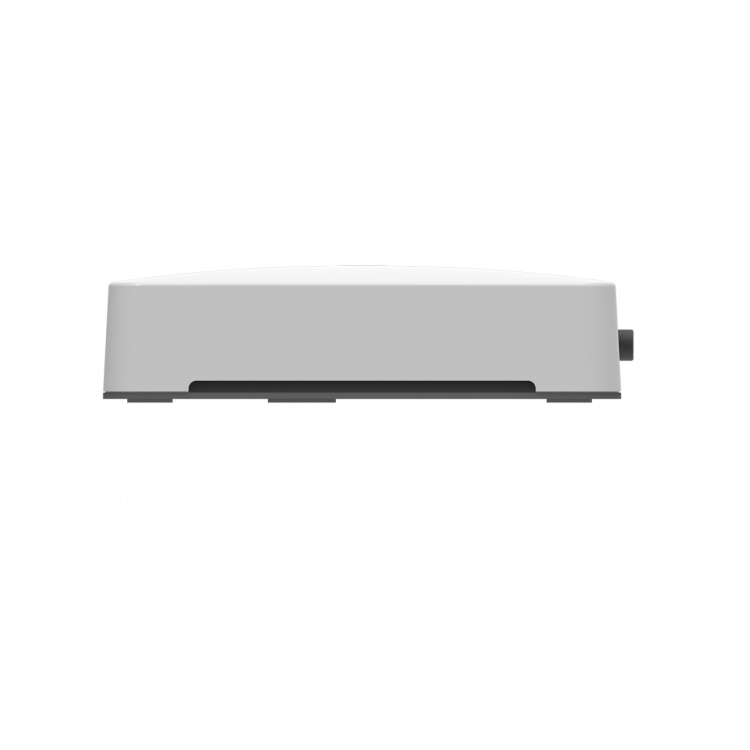

The SDX 632v is an indoor, XGS-PON ONT featuring a 2.5GE and 10GE interface that delivers high-bandwidth, 10 Gbps symmetric services. It also includes one POTS port that supports carrier-grade VoIP.
Features:
- Zero-touch Service Provisioning Eliminates Truck Rolls for Service Upgrades
- Manage an End-to-End PON Deployment with Productivity Tools for Monitoring, Troubleshooting, Provisioning, and Upgrading Networks
- Traffic Management Through Priority Queueing, Scheduling, Policing, and Traffic Shaping
Specifications
Specifications 1287943F1
| Access Technology | XGS-PON |
| Application | Residential |
| Environment | Indoor 0C to +50C |
| FXS Interfaces | 1 |
| 2.5G Ethernet Interfaces (100M/1G/2.5G) | 1 |
| 10G Ethernet Interfaces (1G/2.5G/5G/10G) | 1 |
| Additional Features | Indoor 0C to +50C |
| BOSA Wavelength | 1577/1270 |
| MTU | 9216 Bytes |
| Mounting Options | Desk/Wall Fiber Tray Wall Mount |
| Dimensions (DxWxH) | 155.5 x 135.5 x 35.96 mm 6.12 x 5.33 x 1.41 inch |
| Weight | 0.75 lbs / 0.3 kg |
| Relative Humidity | 5 to 95% non-condensing |
