Product Information
Adtran 1287944F1

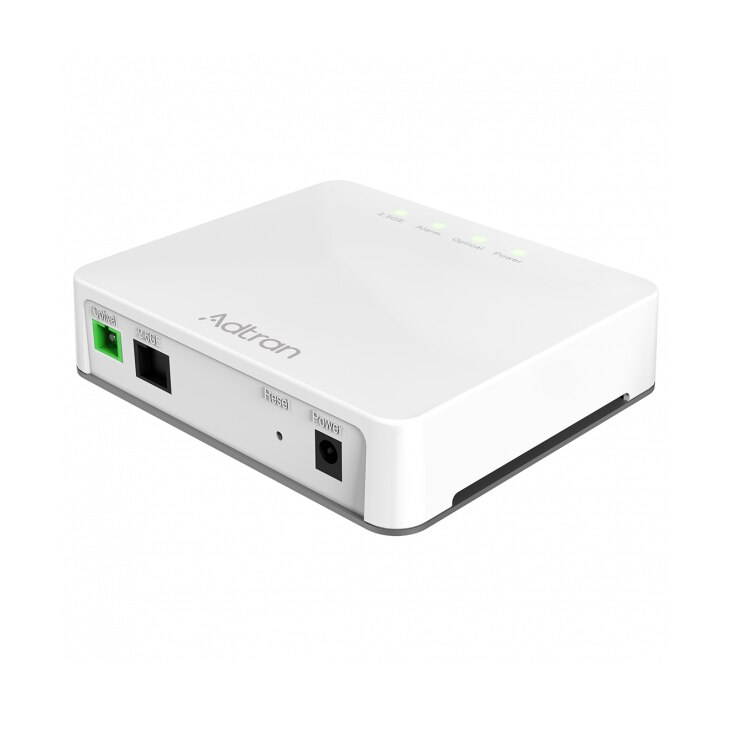

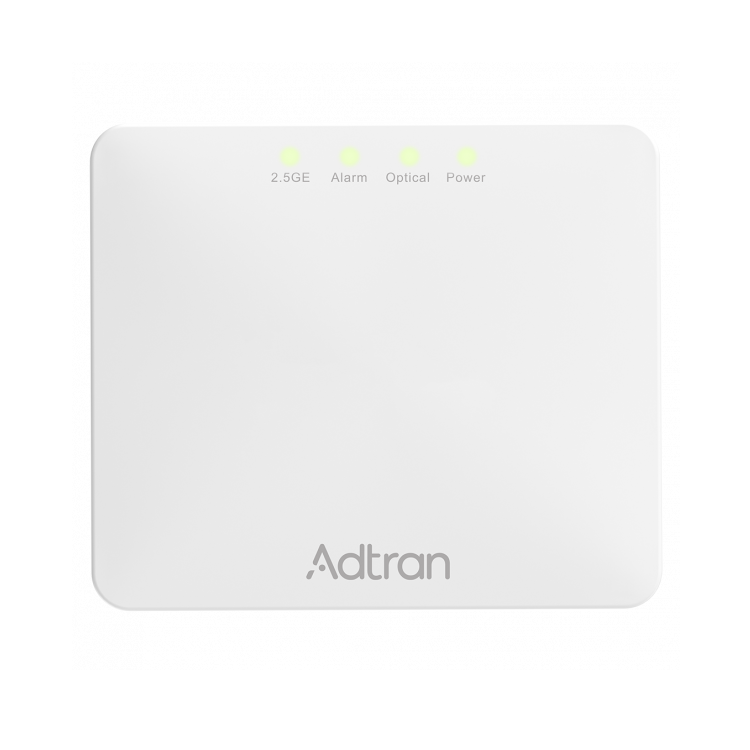

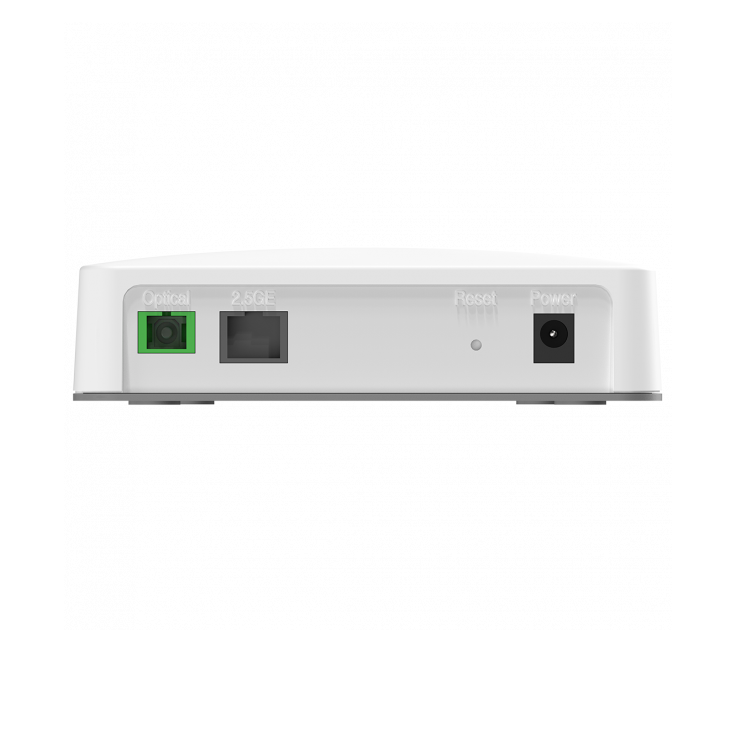

SDX 631q 2.5GE XGS-PON ONT
The SDX 631q is an indoor, 10 Gbps XGS-PON ONT featuring a 2.5GE interface.
Features:
- Deliver Cost-Effective Converged Residential and Business Services
- Uniquely Supports SFU, SBU, and MDU Deployments Streamlining Installation Procedures
- Key Part of Wireless Residential Gateway Deployment Strategy
- Zero-touch Service Provisioning Eliminates Truck Rolls for Service Upgrades
- Manage an End-to-End PON Deployment with Productivity Tools for Monitoring, Troubleshooting, Provisioning, and Upgrading Networks
- Traffic Management Through Priority Queueing, Scheduling, Policing, and Traffic Shaping
Specifications
Specifications 1287944F1
| Access Technology | XGS-PON |
| Application | Residential |
| Environment | Indoor 0C to +50C |
| FXS Interfaces | |
| 2.5G Ethernet Interfaces (100M/1G/2.5G) | 1 |
| 10G Ethernet Interfaces (1G/2.5G/5G/10G) | |
| Additional Features | Indoor 0C to +50C |
| BOSA Wavelength | 1577/1270 |
| MTU | 9216 Bytes |
| Mounting Options | Desk/Wall Fiber Tray Wall Mount |
| Dimensions (DxWxH) | 155.5 x 135.5 x 35.96 mm 6.12 x 5.33 x 1.41 inch |
| Weight | 0.75 lbs / 0.3 kg |
| Relative Humidity | 5 to 95% non-condensing |
