Product Information
Adtran 1287987F1

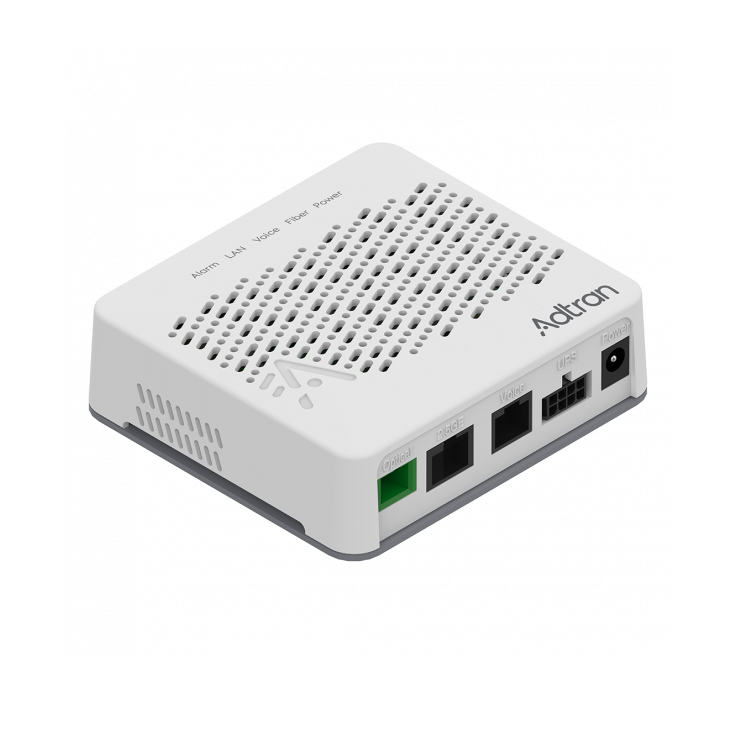

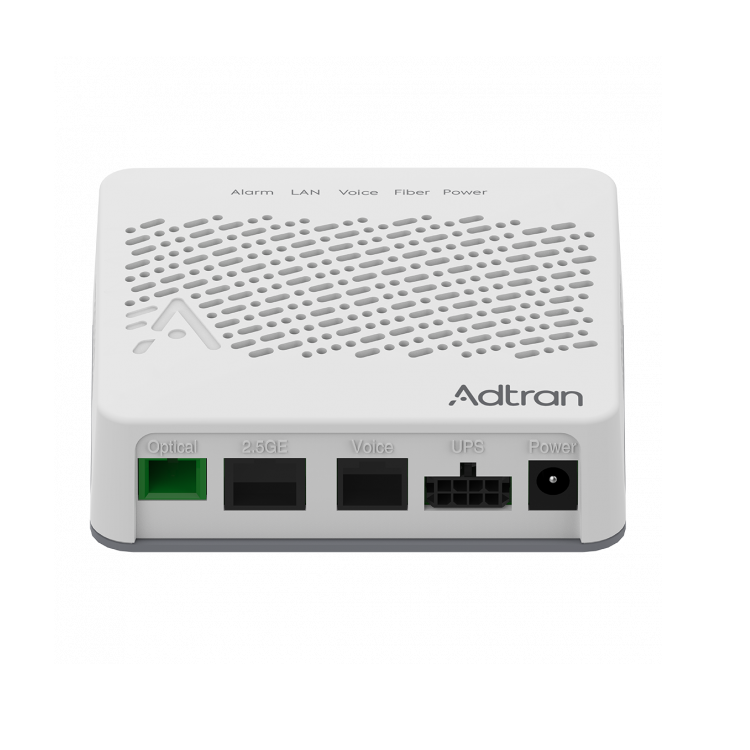

SDX 601QV GPON Simple ONT
The Adtran SDX 600 Series of GPON Optical Network Terminals (ONTs) are designed to address the market with industry-leading voice, data, and video capabilities. Service providers will benefit from a simple, cost-effective ONT and the flexibility offered by Adtran’s portfolio of Ethernet-based technology. In addition, these solutions support demanding residential and business gigabit services, cloud services, and remote work.
Features:
- Deliver Cost-Effective Converged Residential and Business Services
- Zero-touch Service Provisioning Eliminates Truck Rolls for Service Upgrades
- Manage an End-to-End PON Deployment with Productivity Tools for Monitoring, Troubleshooting, Provisioning, and Upgrading Networks
- Traffic Management Through Priority Queueing, Scheduling, Policing, and Traffic Shaping
Specifications
Specifications 1287987F1
| Ethernet Interfaces | ● RJ-45 for 2.5GE (100M/1G/2.5G) ● Ethernet Port Auto Negotiation or Manual Configuration ● MDI/MDIX Automatically Sense ● Hardware Priority Queues on the Downstream Direction in Support of CoS |
| Ethernet Services Support | ● 802.1D Bridging ● 802.1x Authentication ● Eight Queues, Strict Priority and/or Weighted Fair Queue Schedulers ● Configurable to EtherType and TPID for Service Flexibility ● VLAN IDs 0 – 4095; EVC Configurable in the Range of 2 – 4,094 ● Virtual Switch Based on 802.1q VLAN ● VLAN Tagging/Detagging ● VLAN Stacking (Q-in-Q) and VLAN Translation ● Class of Service Based on VLAN-ID, 802.1p Bit ● Marking/Remarking of 802.1p |
| Voice Support | ● ANSI/ETSI FXS Interfaces ● SIP and MGCP Softswitch Support z Metaswitch, Broadsoft, etc. ● MGCP/GR303 Support (Future) ● Configurable Dial Plan ● Configurable Country Specific Ring-back Tones (Frequency and Cadence) ● Optional Metallic Loop Testing ● T.38 Fax ● Echo Cancellation |
| Working Environment | ● Temperature: 32° F to 104° F (0° C to +40° C) ● Relative Humidity: 5% to 95%, Non-condensing |
| Network Interface | ● GPON optical interface BOSA on Board (BoB) ● Compliant with ITU-T G.984.x GPON PMD standards ● Class B+/C+ optical budget support |
| OAM | ● OMCI (Embedded Operations Channel Interface) per ITU-T G.988 and Open OMCI standards ● 15 min rolling counters ● Dying gasp alarm |
| LEDS | ● Power ● LAN ● Optical ● Alarm |
| Regulatory Standards | ● Supported Regions: US, Canada, Mexico, EU, UK, Australia, New Zealand ● Electromagnetic Compatibility z FCC Part 15 Class B z EN 300 386 z EN 55022 z AS/NZS CISPR 22 Class B |
| Environmental | |
| Laser Approvals | z IEC 60825-1:2014 Safety of laser products – Part 1: Equipment classification and requirements |
| CE marked 93/68 EU | ● European Union CE Mark Declaration of Conformity ● Restriction of Hazardous Substance ● Energy Efficiency ErP Directive ● European Union Code of Conduct ● Enhanced ITU-T K.21 |
