Adtran Wi-Fi 5 Ethernet Service Delivery Gateway
- SKU: 17600021F1
- Manufacturer: Adtran
- Data Sheet: Download
Product Information
Adtran 17600021F1
Wi-Fi Service Delivery Gateway. 4x 10/100/1000BASE-T LAN ports, 1x 10/100/1000BASE-T WAN port

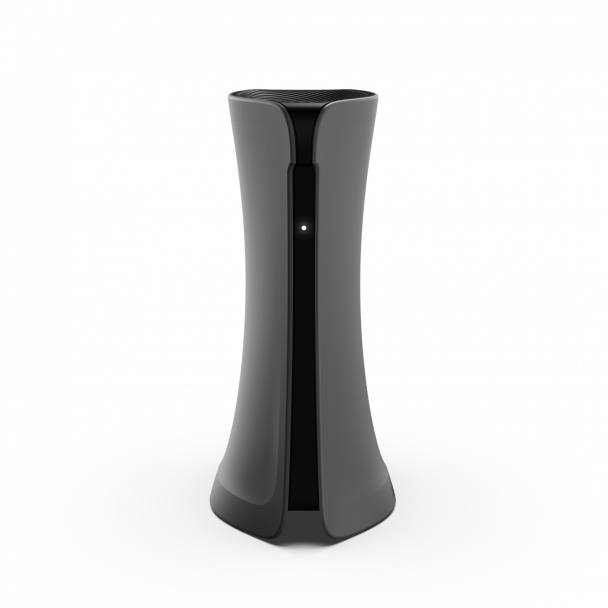

The 834-5 Wi-Fi 5 Service Delivery Gateway (SDG) is a carrier-class, dual-band, 4x4 11ac Ethernet residential gateway with OpenSync support. With a powerful dual-core ARM Cortex-A53 processor, and built-in MU-MIMO and OFDMA, and H-polarized omni-directional antennas, the 834-5 delivers multigigabit wireless and wired throughput to all connected devices across the home.
Features:
- Extends Gigabit Broadband Over Wi-Fi 5
- Dual-band 4+4 11ac
- Zero-Touch Installation, Remote Troubleshooting and Management Via TR-069
- Adaptive Mesh Technology
Specifications
Specifications 17600021F1
| AC Input | 100~240 VAC @ 50/60Hz |
| DC Output | 12 VDC @ 3.0A |
| Temperature | 41° F – 104° F (5° C – 40° C) |
| Humidity | 5% – 85% Relative Humidity |
| Dimensions | 249 x 90 x 195mm (Height x Width (Base) x Depth) 9.80" x 3.54" x 7.67" Weight: 2.6 lbs |

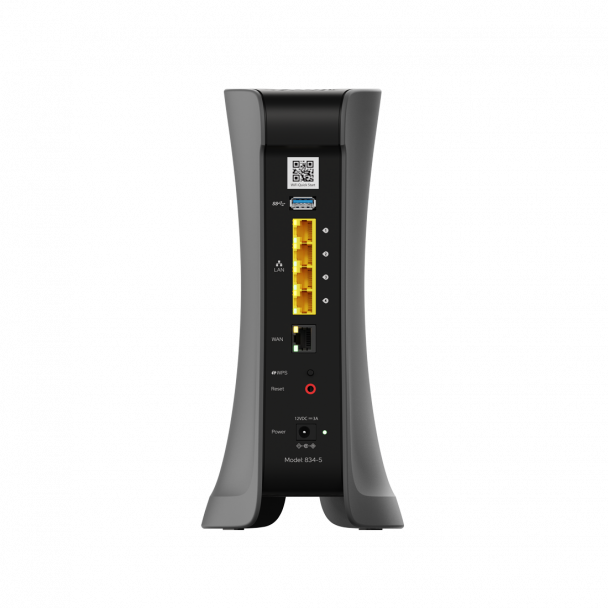

| Ethernet Interfaces | • 4x 10/100/1000BASE-T LAN ports • 1x 10/100/1000BASE-T WAN port • MDI/MDI-X Automatically Sense • RJ-45 ports with integrated Link and Activity LEDs |
| Ethernet Services | • Symmetric 1 Gbps Throughput • 802.1D Bridging • 802.1x Authentication • Virtual Switch Based on 802.1q VLAN • VLAN Tagging/Detagging Per Ethernet Port • VLAN Stacking (Q-in-Q) and VLAN Translation • IP ToS/DSCP to 802.1p Mapping • Quality of Service (QoS) • VLAN-ID • 802.1p Bit • DSCP to p Bit Translation • Marking/Remarking of 802.1p • IGMP v2/v3 Snooping • Broadcast/Multicast Rate Limiting |
| Gateway Features | • Multiple WAN Services • DHCPv4/v6 • RFC2516 PPPoE • PPPoE pass-through • RFC5072 IPv6 over PPP • DNS Proxy Server • Dynamic DNS client • DHCP Server, Client and Relay • DHCP Options 60 and 121 • NAPT and NAT • IGMPv2/v3 Proxy and Snooping |
| WLAN Interface | • Compliant with IEEE 802.11 b/g/n/ac • Dynamic Frequency Selection • Multi-region support • Dual Band Radios • 2.4 GHz 4x4 • 5.0 GHz 4x4 • WPA2 Support • Bluetooth 5.0 • Push Button WPS |
| USB Interface | • 1 USB Host Interface • Compliant to USB 3.0 |
