Adtran Wi-Fi 6 Service Delivery Gateway. 4x 10/100/1000BASE-T LAN ports, 1x 10/100/1000BASE-T WAN port
- SKU: 17600023F1
$203.52
+ $4.21 Tariff
- Manufacturer: Adtran
- Data Sheet: Download
Product Information

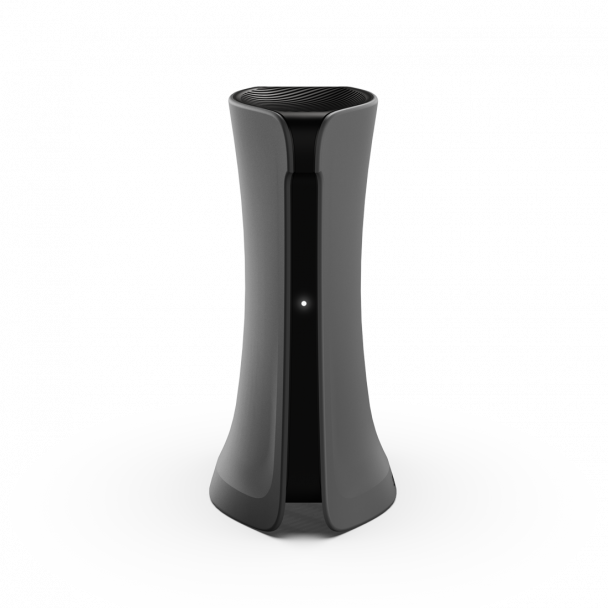

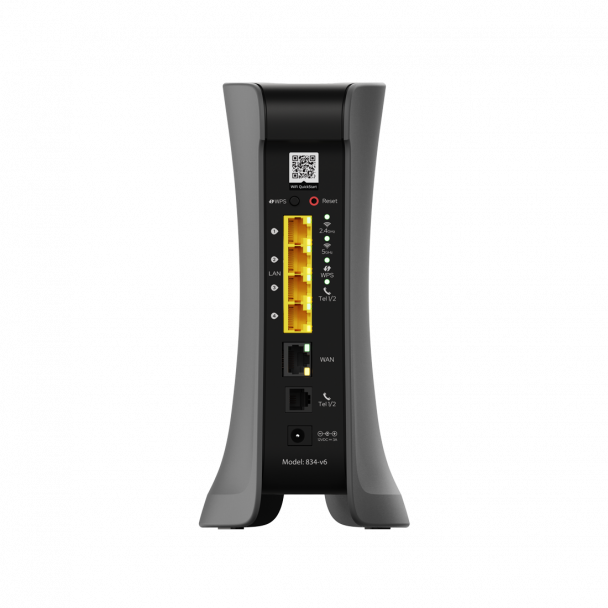

Adtran 17600023F1
Wi-Fi 6 Service Delivery Gateway. 4x 10/100/1000BASE-T LAN ports, 1x 10/100/1000BASE-T WAN port
The 834-v6 Wi-Fi 6 Service Delivery Gateway (SDG) is a carrier-class, dual-band 2x2 11ax Ethernet residential gateway with voice ports and OpenSync support. With a powerful dual-core ARM Cortex-A53 processor, and built-in MU-MIMO and OFDMA, and high-performance H-polarization omni-directional antennas, the 834-v6 delivers multigigabit wireless and wired throughput to all connected devices across the home.
Features:
- Extends Multigigabit Broadband Over Wi-Fi 6
- Dual-band 2+2 11ax
- Provides Two SIP-enabled Phone Ports
- Zero-Touch Installation, Remote Troubleshooting and Management Via TR-069
- Adaptive Mesh Technology
Specifications
Specifications 17600023F1
| AC Input | 100~240 VAC @ 50/60Hz |
| DC Output | 12 VDC @ 3.0A |
| Temperature | 41° F – 104° F (5° C – 40° C) |
| Humidity | 5% – 85% Relative Humidity |
| Dimensions | 168 x 98 x 206mm (Height x Width (Base) x Depth) 6.61" x 3.85" x 8.11" |
| Ethernet Interfaces | • 4x 10/100/1000BASE-T LAN Ports with RJ-45 Connectors • 1x 10/100/1000BASE-T WAN Port • MDI/MDI-X Automatically Sense • RJ-45 Ports with Integrated Link and Activity LEDs |
| Ethernet Services | • Symmetric 1 Gbps Throughput • 802.1D Bridging • 802.1x Authentication • Virtual Switch Based on 802.1q VLAN • VLAN Tagging/Detagging Per Ethernet Port • VLAN Stacking (Q-in-Q) and VLAN Translation • IP ToS/DSCP to 802.1p Mapping • Quality of Service (QoS) • VLAN-ID • 802.1p Bit • DSCP to p Bit Translation • Marking/Remarking of 802.1p • IGMP v2/v3 Snooping • Broadcast/Multicast Rate Limiting |
| Gateway Features | • Multiple WAN Services • DHCPv4/v6 • RFC2516 PPPoE • PPPoE Pass-through • RFC5072 IPv6 over PPP • DNS Proxy Server • Dynamic DNS Client • DHCP Server, Client and Relay • DHCP Options 60 and 121 • NAPT and NAT • IGMPv2/v3 Proxy and Snooping • LAN port to VLAN Mapping • Port Forwarding • Universal Plug and Play (UPnP) • Network Time Protocol (NTP) • Firewall with Stateful Packet Inspection |
| WLAN Interface | Compliant with IEEE 802.11 b/g/n/ac/ax • Optional 160Mhz channel (Future 2022) • Dynamic Frequency Selection • Multi-region support • Dual Band Radios • 2.4 GHz 2x2 • 5.0 GHz 2x2 • WPA3 Support • Bluetooth 5.0 • Push Button WPS |
| USB Interface | • 1 USB Host Interface • Compliant to USB 3.0 |
