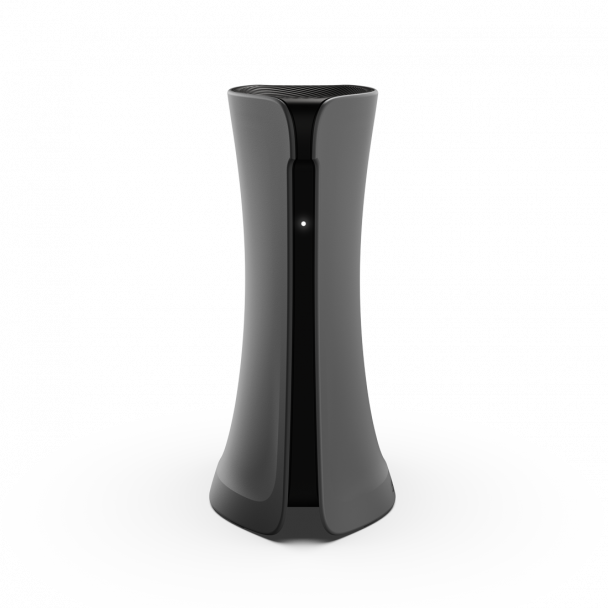

Adtran 854-v6 Dual-Band Wi-Fi Ethernet RG with Voice
- SKU: 17600028F1
- Manufacturer: Adtran
- Adtran SDG 854-v6: Download
Product Information
Adtran 17600028F1 RESIDENTIAL GATEWAY
Carrier-class Dual-Band Wi-Fi 6 Multi-Gigabit Residential Gateway with 2.5G WAN uplinks. OpenSync-enabled.
The Adtran 854-v6 Wi-Fi 6 Service Delivery Gateway (SDG) is a carrier-class, dual-band 4x4 11ax Ethernet residential gateway with combo 2.5GE or SFP+ uplinks, voice ports and OpenSync support. With a powerful dual-core ARM Cortex-A53 processor, and built-in MU-MIMO and OFDMA, and high-performance H-polarization omni-directional antennas, the 854-v6 delivers multigigabit wireless and wired throughput to all connected devices across the home.
Features:
- Extends Multigigabit Broadband Over Wi-Fi 6
- 2.5GE/SFP+ Uplinks For Multigigabit Deployments
- Dual-band 4+4 11ax
- Provides Two SIP-enabled phone ports
- Zero-Touch Installation, Remote Troubleshooting and Management Via TR-069
- Adaptive Mesh Technology
Specifications
Specifications
| Network Interfaces | ● 1x Combo WAN (one active at a time) z 2.5G SFP z 2.5GBASE-T (IEEE 802.3bz-2016) ● 4x 10/100/1000BASE-T LAN ● MDI/MDI-X Automatically Sense ● RJ-45 Ports with Integrated Link and Activity LEDs |
| Ethernet Services | ● Symmetric 2 Gbps Throughput ● 802.1D Bridging ● 802.1x Authentication ● Virtual Switch Based on 802.1q VLAN ● VLAN Tagging/Detagging per Ethernet Port ● VLAN Stacking (Q-in-Q) and VLAN Translation ● IP ToS/DSCP to 802.1p Mapping ● Quality of Service (QoS) z VLAN-ID z 802.1p Bit ● DSCP to p Bit Translation ● Marking/Remarking of 802.1p ● IGMP v2/v3 Snooping ● Broadcast/Multicast Rate Limiting |
| Gateway Features | ● Multiple WAN Services DHCPv4/v6 RFC2516 PPPoE PPPoE Pass-Through RFC5072 IPv6 Over PPP ● DNS Proxy Server ● Dynamic DNS Client ● DHCP Server, Client, and Relay ● DHCP Options 60 and 121 ● NAPT and NAT ● IGMPv2/v3 Proxy and Snooping ● LAN Port to VLAN Mapping ● Port Forwarding ● Universal Plug and Play (UPnP) ● Network Time Protocol (NTP) ● Firewall with Stateful Packet Inspection ● IPv6 z Stateless Address Autoconfiguration (SLAAC) z DHCPv6 z PPPoEv6 z DNSv6 z DS-Lite |
| WLAN Interface | ● Compliant with IEEE 802.11 b/g/n/ac/ax ● Optional 160Mhz Channel (Future 2022) ● Dynamic Frequency Selection ● Multi-Region Support ● Dual Band Radios 2.4 GHz 4x4 5.0 GHz 4x4 ● WPA3 Support ● Push Button WPS |
| USB Interface | ● 1 USB Host Interface ● Compliant to USB 3.0 |
| POTS Interfaces | ● RJ-11 Interface ● 3-REN, 50V RMS ● RFC 3261 SIPv2 ● Full CLASS Feature Set ● ANSI and ETSI POTS ● T.38 Facsimile ● Configurable Dial Plan ● Configurable Country Specific Ring-Back Tones (Frequency and Cadence) |
| Dimensions | ● 9.8 in x 3.5 in x 7.7 in (249 mm x 90 mm x 195 mm) (H x W x D) ● Weight: 2.6 lbs (1176 gm) |
| Power Supply | ● External AC/DC Power Adapter ● AC Input: 100~240 VAC @ 50/60Hz ● DC Output: 12 VDC @ 3.5A ● UL Listed |
| Working Environment | ● Temperature: 41° F – 104° F (5° C – 40° C) ● Humidity: 5% – 85% Relative Humidity |
| Safety and EMI | ● FCC Certified ● Industry Canada Certified ● ETL Intertek Listed (UL 62368-1) ● ETSI Compliant ● CE Certificate ● ACMA/RCM Certified ● UKCA/CE Mark ● DFS Certified |
| Environmental Directive | ● RoHS 6 of 6 |
