Product Information

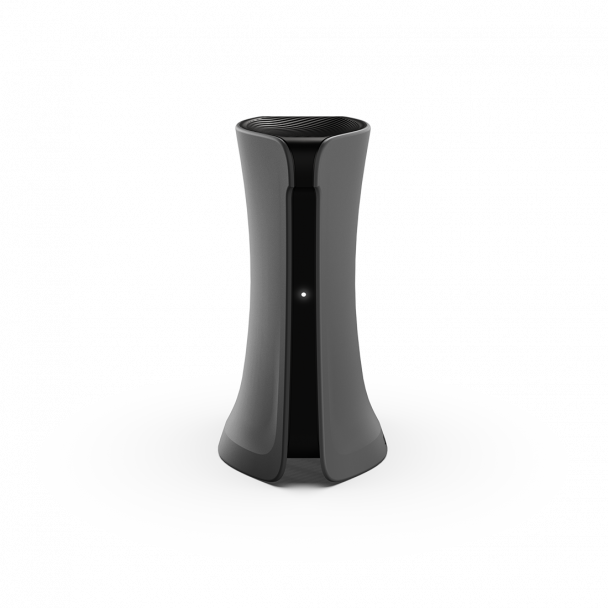

Adtran 17600030F1
Tri-Band Wi-Fi 6 Mesh Satellite/Hub
The Adtran 841-t6 Wi-Fi 6 Service Delivery Gateway (SDG) is a carrier-class, tri-band 2+2+4 11ax Ethernet residential gateway/mesh access point (AP) with 2.5GE LAN port and OpenSync support. With built-in MU-MIMO and OFDMA, and high-performance H-polarization omni-directional antennas, the 841-t6 can be deployed as standalone multigigabit residential gateway or as a mesh AP to extend coverage in conjunction with other Service Delivery Gateways.
Features:
- Extends Multigigabit Broadband Over Wi-Fi 6
- 2.5GE Uplinks For Multigigabit Deployments
- Tri-band 2+2+4 11ax
- Supports Standalone Multigigabit RG or Mesh AP deployment models
- Zero-Touch Installation, Remote Troubleshooting and Management Via TR-069
- Adaptive Mesh Technology
Specifications
Specifications
| Ethernet Interfaces | ● 1 x 2.5GBASE-T Ports with RJ-45 Connectors ● 1 x 10/100/1000BASE-T Ports with RJ-45 Connectors ● Ethernet Port Auto Negotiation or Manual Configuration (Softward Dependent) ● MDI/MDI-X Automatic Sensing |
| Gateway Features | ● WAN Connection z Point-to-Point Protocol over Ethernet (PPPoE) z Dynamic Host Configuration Protocol (DHCP) ● DHCP Server for LAN Devices ● DNS Relay ● Network Address Translation (NAT)/Network Address Port Translation (NAPT) ● Port Forwarding ● Static Routing ● Access Control List (ACL) ● VPN Pass Thru for Point-to-Point Tunneling Protocol (PPTP), Layer 2 Tunneling Protocol (L2TP) and IP Security Protocol (IPSec) ● Firewall ● Application Layer Gateway (ALG) ● Demilitarized Zone (DMZ) ● Dynamic Domain Name Server (DDNS) ● Network Time Protocol (NTP) ● Universal Plug and Play (uPnP) ● IGMP Proxy ● IPv6 z Stateless Address Autoconfiguration (SLAAC) z DHCPv6 z PPPoEv6 z DNSv6 |
| WLAN Interface | ● Compliant with IEEE 802.11 b/g/n/ac/ax ● Dynamic Frequency Selection ● Multi-Region Support ● 2.4 GHz and 5.0 GHz ● Tri Band Radios z 2.4 GHz 2x2 z 5.0 GHz 2x2 z 5.0 GHz 4x4 ● WPA3 Support ● Bluetooth 5.0 z Push Button WPS |
| Dimensions | ● 6.6 in x 3.9 in x 8.1 in (168 mm x 98 mm x 206 mm) (Height x Width x Depth) ● 1.3 lbs (584 gm) |
| Power Supply | z +12V (Feed via External AC/DC Adapter) z Power Consumption: Less than 30W |
| Working Environment | ● Temperature: 41° F – 104° F (5° C – 40° C) ● Humidity: 5% – 85% Relative Humidity |
| LEDs | ● Multifunction RGBW ● 2.4GHz ● 5GHz ● 5GHz ● WPS ● Ethernet Link/Activity |
| Safety and EMI | ● CE Certificate ● FCC/Industry Canada Certified, UL Listed ● ETL Intertek Listed (UL 62368-1) ● CE/UKCA Mark ● DFS Certified ● ACMA/RCM Compliant ● RoHS 6 of 6 |
