Adtran Total Access 5004 Chassis Kit Compact Fiber Access and Aggregation Platform
- SKU: 41875416F1
- Manufacturer: Adtran
- Data Sheet: Download
Product Information
Adtran 41875416F1

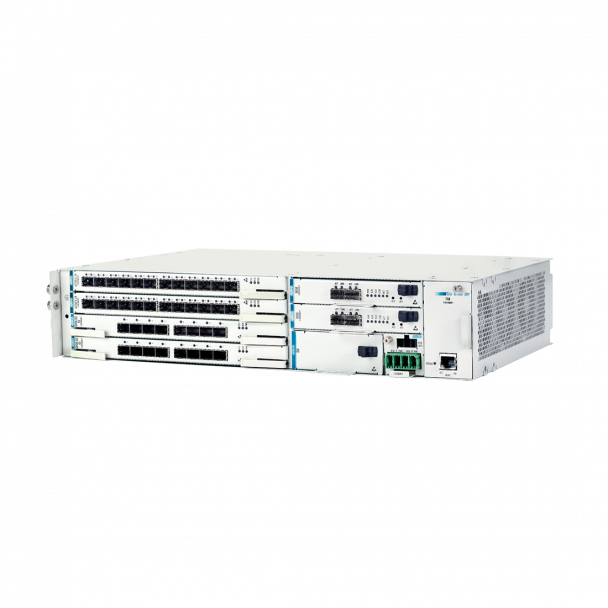

Total Access 5004 Chassis Kit Compact Fiber Access and Aggregation Platform
The Adtran Total Access 5004 is a carrier-class, compact 10G Fiber Access and Aggregation solution that simplifies high-capacity broadband services delivery into MDUs, emerging neighborhoods, remote cabinets and rural locations. The chassis supports up to four temperature-hardened access module slots, with integrated Nx10GE support to each slot providing a comprehensive solution to launch and expand full-fiber networks.
Features:
- Environmentally Hardened For Cabinet Deployments
- Multiservice Support: GPON, XGS-PON, Combo PON, Active Ethernet, Carrier Ethernet, Triple-Play Services
Specifications
Specifications 41875416F1
| Interfaces | |
| Uplink | 2x1/10GE |
| Transport | 8x1/10GE via ETOS-10 Transport Module |
| Management | 10/100Base-T Ethernet Port |
| Applications and Services | ■ 10G FTTH for Gigabit and Multigigabit Broadband ■ Optical Networking Edge (ONE) for Premium (SLA) 10G Services, Aggregation, and Transport ■ Carrier Ethernet Services Over Any Medium |
| Physical | |
| Dimensions | 3.5 in. x 17.2 in. x 10.9 in (89 mm x 438 mm x 278 mm) (H x W x D) |
| Weight | 8.1 lbs (3.7 kgs) |
| Nine Rack-mountable Units | (2RU) |
| Management | ■ Mosaic Cloud Platform ■ Mosaic One ■ Advanced Operational Environment (AOE) ■ Remote Management Through SNMP, CLI, and Web-Service APIs (HTTPS) ■ Ethernet Interface on SCM for Web and Telnet/SSH Access (in-band or out-of-band) |
| Environmental | |
| Operating Temperature | -40° F to +149° F (-40° C to +65° C) |
| Storage Temperature | 40° F to +185° F (-40° C to +85° C-) |
| Relative Humidity | Up to 95%, Non-condensing |
| Electrical | |
| Nominal Powering Voltage | -48 VDC |
| Power Terminal | Redundant A and B Power Feeds |
| Regulatory Standards | ■ EN 60950-1 ■ AS/NZ 60950 ■ IEC 60950-1 ■ EN 300 386 ■ RoHS |
