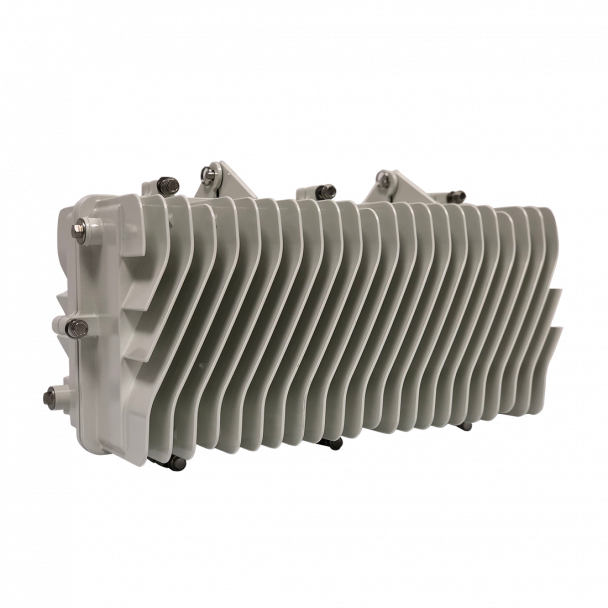

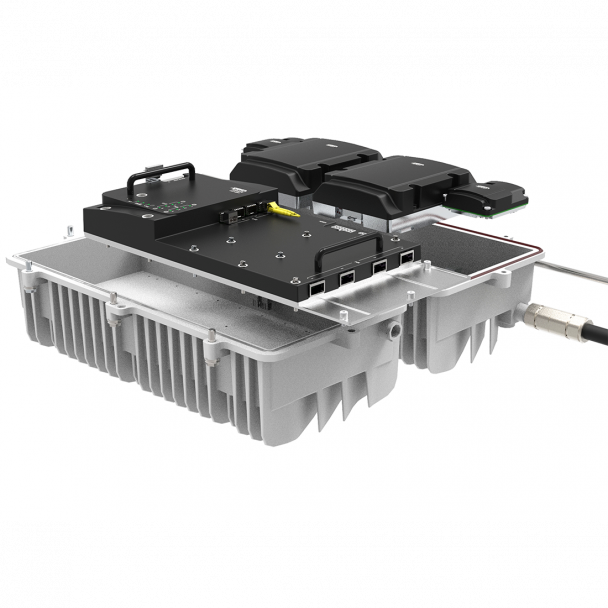

Adtran SDX 6312-4 4-Port Sealed 10G Combo PON OLT, AC/DC Power Supply
- SKU: 41971310F1
- Manufacturer: Adtran
- Data Sheet: Download
Product Information
Adtran 41971310F1
SDX 6312-4 4-Port Sealed 10G Combo PON OLT, AC/DC Power Supply
The Adtran SDX 6312-4 Sealed 10G Combo PON OLT is an environmentally sealed, virtualized remote OLT that reduces time-to-market and subscriber connection costs by using FTTH to effectively deliver multi-Gigabit and triple play services. The OLT supports XGS-PON, GPON, or Combo PON optics, supporting up to 512 subscribers across four PON ports. The OLT offers four 10GE uplink interfaces with embedded redundancy options to ensure scalability to support next generation residential, business and mobile backhaul.
Features:
- 4 (8)* 10G Combo PON Ports
- 4x10GE Uplinks
- Environmentally Sealed Unit (IP68)
- Fan-less Conductive Cooling
- Stand, Pole, Wall, or Pedestal Mount Options
- Built For Open, Vendor-Neutral Aligned Networks
- Pay-as-you Grow Disaggregated Architecture
- Supports Control Plane Portability For Simplifying Transition to Virtualized Networks
- Best-in-class Scalability to Support Dense Urban and Rural Applications
- Supports Strand-Mount, Pedestal, and Hand-Hole Deployments
Specifications
Specifications 41971310F1
| 10G Combo PON Supported | Yes |
| XGS-PON Interfaces | 4 |
| GPON Interfaces | 4 |
| Uplink Interfaces | 4x10GE SFP+ |
| Jumbo Frames MTU | 9216 Bytes |
| MAC Addresses | 256K |
| Multicast Groups | 50 |
| Multicast Streams | 32K |
| Rack Units | Environmentally Sealed |
| Mounting Brackets | 0 |
| Airflow Options | Fan-less Conductive Cooling |
| Baffle Kits Available | 0 |
| Dimensions (DxWxH) | 243 x 515 x 280 mm 9.56 x 20.27 x 11.02 in |
| Weight | 35 lbs/16 kg |
| Powering Options | AC/DC or SPAN |
| Typ Power Consumption w/o Optics | TBD |
| Max Power Consumption w/o Optics | 125 W |
| Temperature Range | -40 to 65°C |
| Relative Humidity | up to 95% non-condensing |
