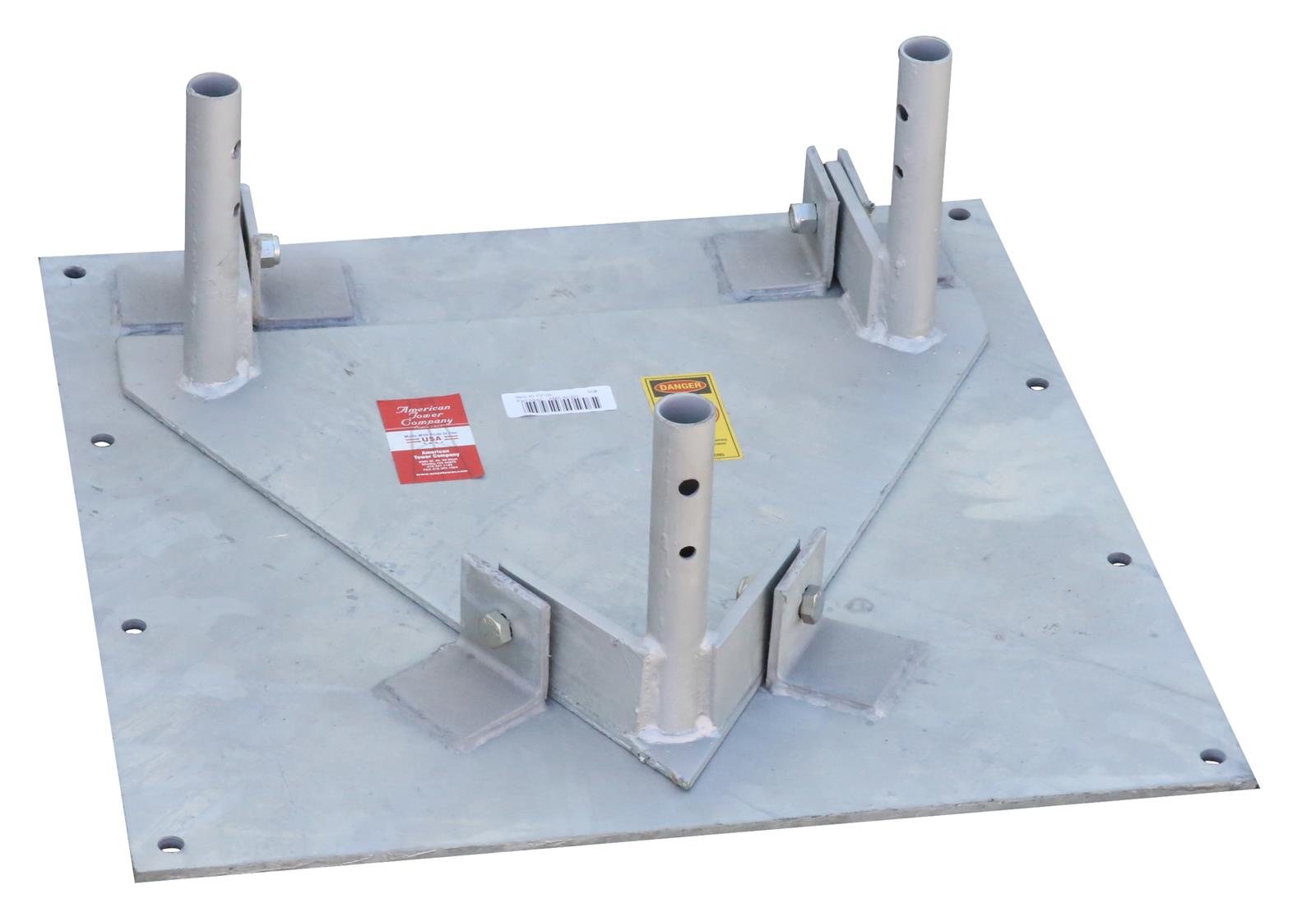

Amerite Tower Hinged Ground Plate

(0)No Reviews yet
US$‎635.03 US$‎687.95
  • SKU: AME 45-BH
  • Manufacturer: Amerite
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status

Product Information

Amerite AME 45-BH

Amerite Tower Hinged Ground Plate

American Tower Company Amerite Tower Base Plates allow you to mount your AME-25, 45 or 55 series tower using several different methods. Amerite base plates cannot be used in self-supporting applications… they must be used for bracketed or guyed installations only.

Amerite drive-in base plates are for mounting a bracketed or guyed tower directly onto tightly compacted soil; intended for short term and temporary installations. They are made of steel and are completely galvanized. Towers mounted on drive-in base plates MUST be bracketed or guyed at all times. They are designed to prevent the bottom of a temporary tower from "kicking out" and causing tower collapse. They are great for Field Day and other interim applications.

Amerite hinged tower base plates allow you to mount your Amerite 25G-series tower using six 1/2 in. x 12 in. base bolts embedded in the concrete pier. Amerite hinged base plates enable the tower to be rotated up from the base during installation. Hinged tower base plates must be used in bracketed or guyed tower applications only.


Features :

  • Each section is double bolted for sturdy and dependable joining
  • Hot dip galvanized for a long lasting finish (ASTM 123)
  • Steel tubing is 50,000 p.s.i.
  • Tower sections have a 18" face width, 1-1/4" high strength tubing legs

Specifications

Specifications AME 45-BH

Compatible Tower ModelAME-45
Tower Base Plate TypeHinged
