Cambium PTP 820S Radio 18WGHz, TR1560, ChAll, Hi, 19260-19710MHz
- SKU: C180082B011A
- Manufacturer: Cambium Networks
- Data Sheet: Download
- Availability: Call for Availability This item can sometimes be sourced and shipped directly from other locations when out of stock. Email me when this product is in stock!
Product Information
- Description
- Specifications
Cambium Networks C180082B011A

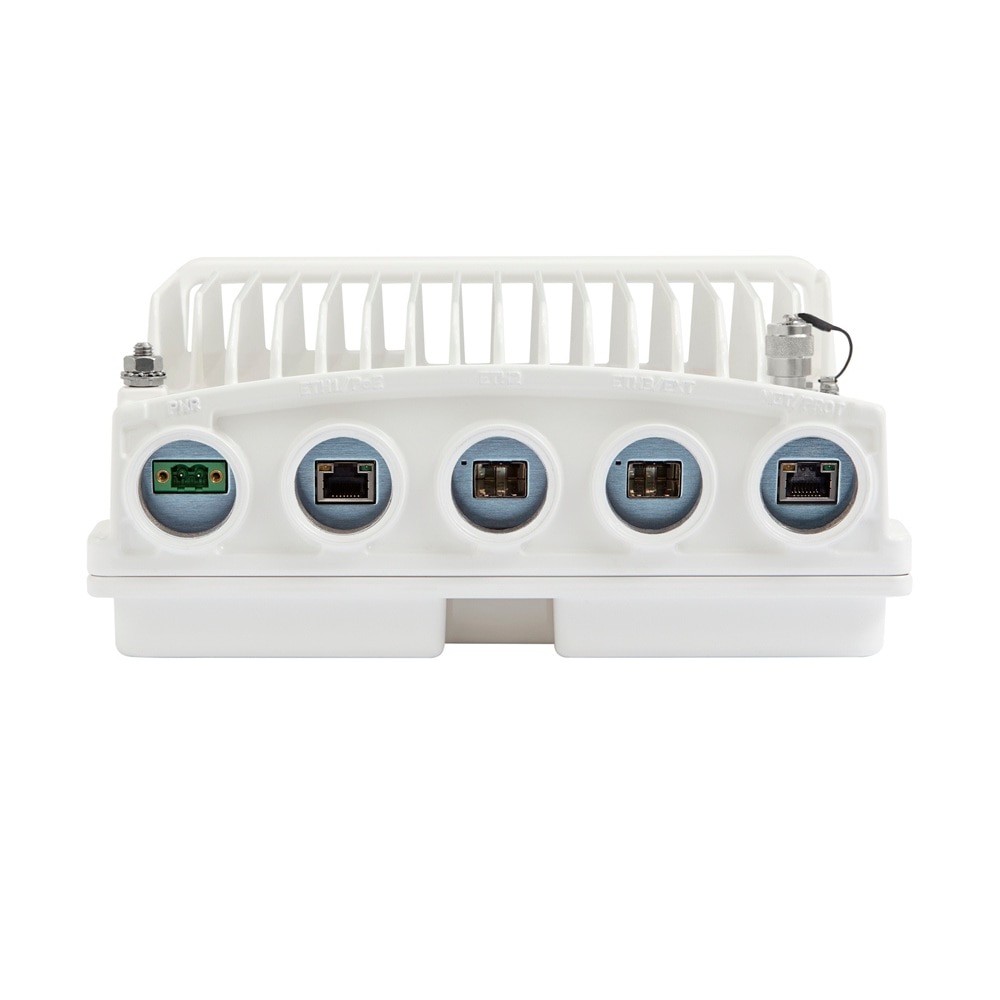

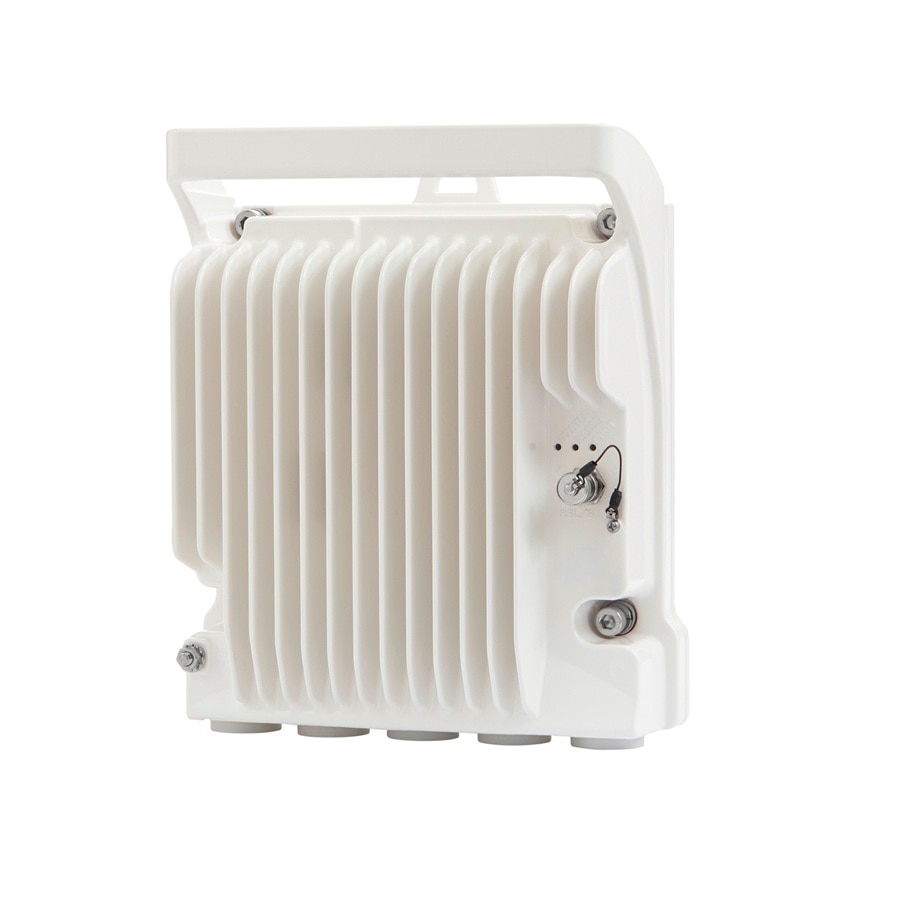

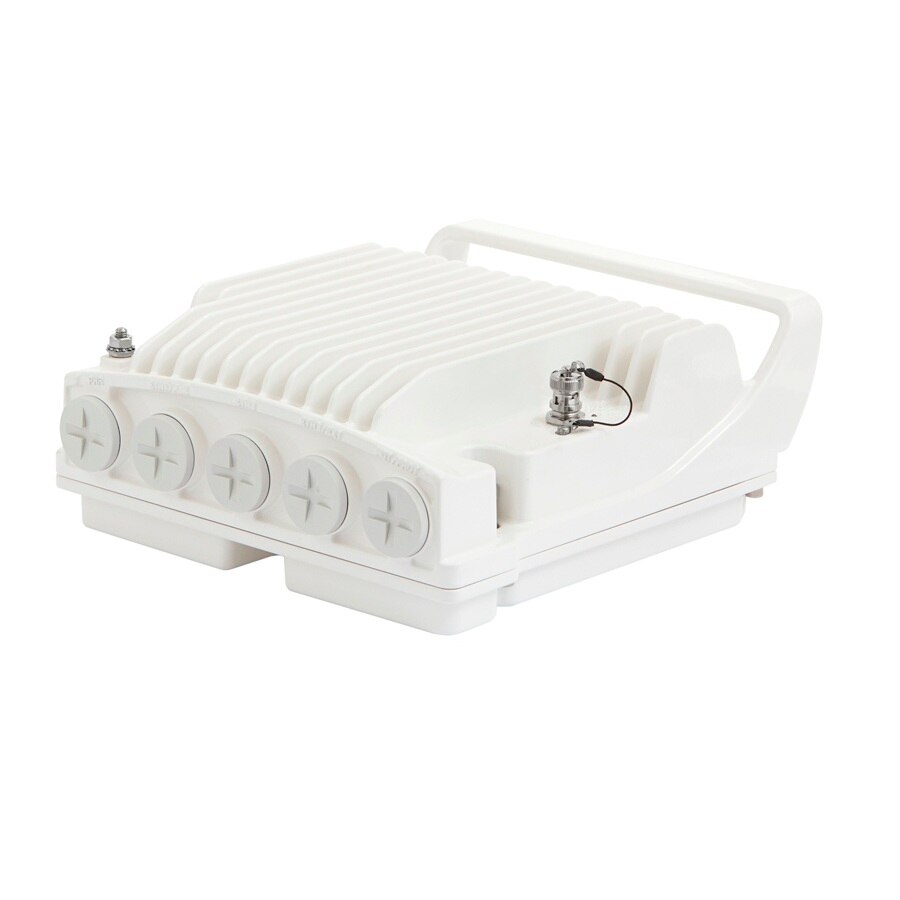

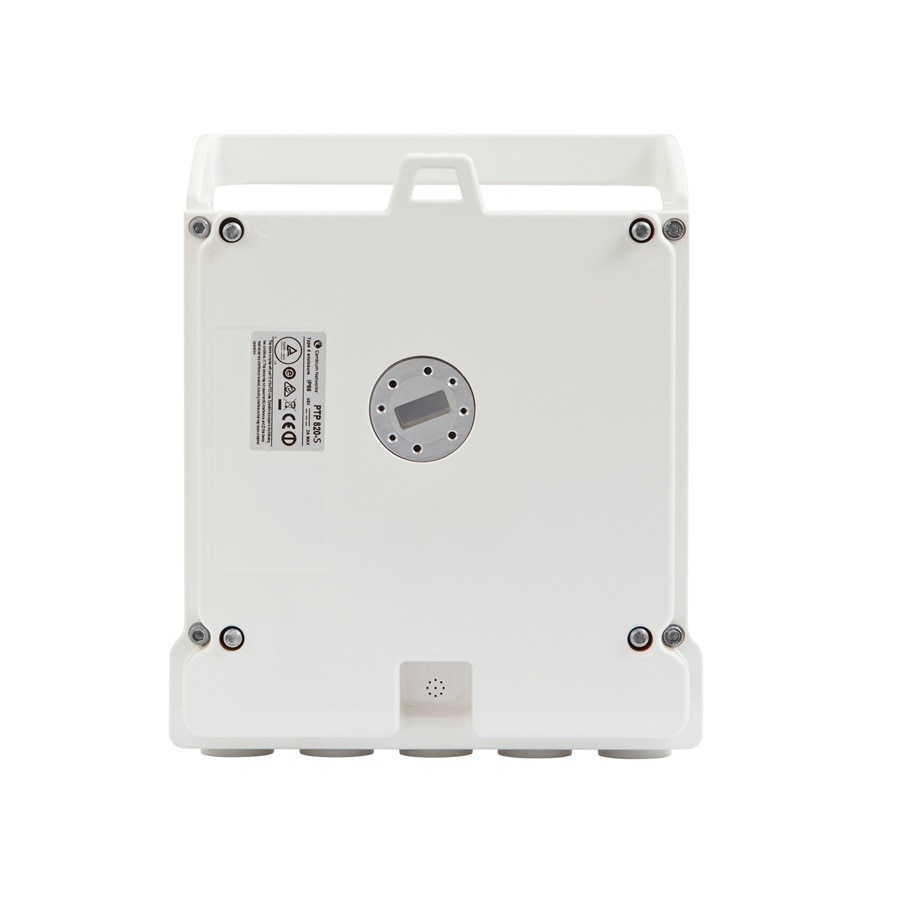

PTP 820S Radio 18WGHz, TR1560, ChAll, Hi, 19260-19710MHz
PTP 820 is a point-to-point licensed microwave backhaul platform that integrates leading networking functionality with the industry’s most advanced microwave technologies creating a superior microwave transport solution.
Supporting licensed frequency bands ranging from 6 to 42 GHz, the PTP 820 series delivers a wide range of configurations to offer a tailored solution for any deployment scenario.
Composed of high-density multi-technology nodes and integrated radio units, the PTP 820 series offers flexibility in choosing all-indoor, split-mount and all-outdoor configuration options. Exploiting unique Line of Sight (LOS) Multiple Input Multiple Output (MIMO) technology, modulation up to 2048QAM and wider channel bandwidths, ensures Industry leading throughput and spectral efficiency.
Shipping Information:
| Dimensions (W x H x L) | 11.61cm X 7.28cm X 14.76cm |
| Weight | 11.68 lbs |
Specifications C180082B011A
| Frequency Range | Wide 18GHz |
| Configurations | 1+0, 1+1 HSB |
| Radio Features | Protection: 1+1 HSB, High spectral utilization: QPSK to 2048 QAM w/ACM |
| Transport Technology | All packet |
| TDM Interface | None |
| Modulation | QPSK to 2048 QAM w/ACM |
| L2 Capacity | 605Mbps |
| Capacity with Multi-Layer Compression | 833Mbps |
| Configuration | 1+0, 1+1 HSB |
| LOS MiMO | No |
| XPIC | No |
| Management Interface | 1 x 10/100 Base-T |
| External Alarm | None |
| Environment | -27.4 to 131deg F (-33 to 55deg C) |
| Power Input | -48VDC |
| PoE Injector Power Input | -48VDC or +24VDC |
| Power Consumption | 32W |
