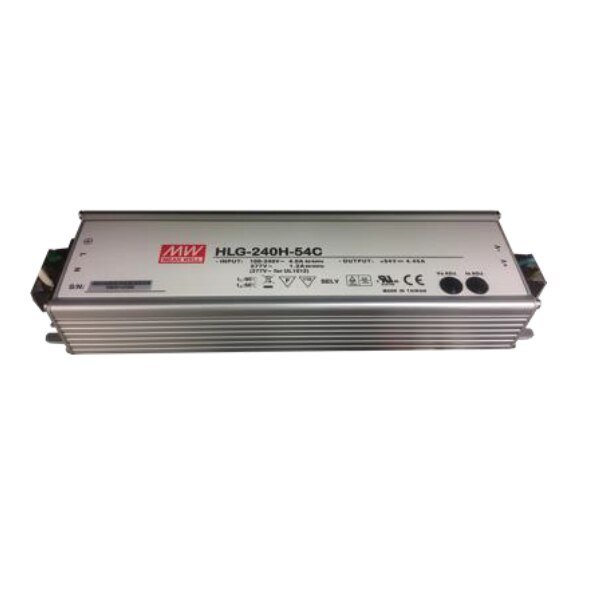

Cambium Power Supply, Single Output Switching, 30V, 240W, HLG-240H
- SKU: N000000L055A
$234.36
+ $8.44 Tariff
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks N000000L055A
Power Supply, Single Output Switching, 30V, 240W, HLG-240H
The Cambium CMM Power Supply is for 30 VDC, 240W Power Supply (no cables or cords). And features Cambium's Single Output Switching, HLG-240H.
Specifications
Specifications N000000L055A
| Output | |
| DC Voltage | 30V |
| Constant Current Region1 | 15 ~ 30V |
| Rated Current | 8A |
| Rated Power | 240W |
| Input | |
| Voltage Range2 | 90 ~ 305VAC 127 ~ 431VDC |
| Frequency Range | 47 ~ 63Hz |
| Efficiency | 92.5% |
| AC Current | 4A / 115VAC 2A / 230VAC 1.2A / 277VAC |
| Protection | |
| Over Current3 | 95 ~ 108% Protection type: Constant current limiting, recovers automatically after fault condition is removed |
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed |
| Over Voltage | 33 ~ 39V Protection type: Shut down and latch off o/p voltage, re-power on to recover |
| Over Temperature | Shut down o/p voltage, recovers automatically after temperature goes down |
| Environment | |
| Working Temp. | -40 ~ +70°C |
| Working Humidity | 20 ~ 95% RH non-condensing |
| Other | |
| MTBF | 207.9K hours min. MIL-HDBK-217F (25°C) |
| Dimension | 251 x 68 x 38.8 mm (L x W x H) |
