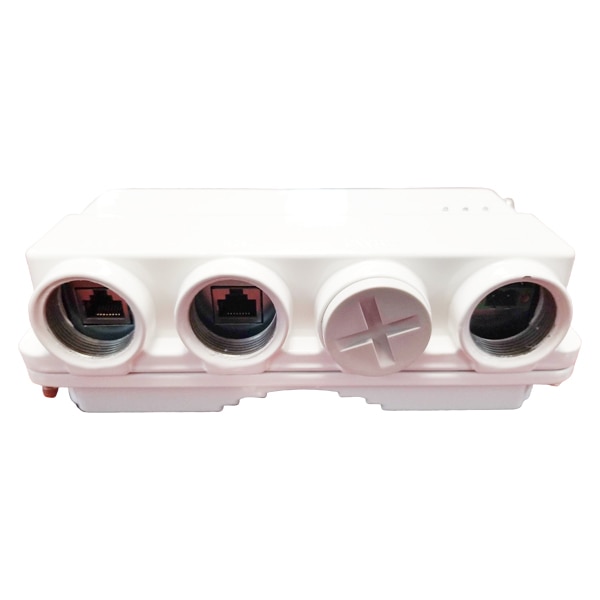

Cambium PoE Injector All Outdoor Redundant DC
- SKU: N000082L022A
- Manufacturer: Cambium Networks
- Spec Sheet:Download
Product Information
Cambium Networks N000082L022A
PoE Injector all outdoor redundant DC
PTP 820 is a point-to-point licensed microwave backhaul platform that integrates leading networking functionality with the industry’s most advanced microwave technologies creating a superior microwave transport solution. Supporting licensed frequency bands ranging from 6 to 42 GHz, the PTP 820 series delivers a wide range of configurations to offer a tailored solution for any deployment scenario. Composed of high-density multi-technology nodes and integrated radio units, the PTP 820 series offers flexibility in choosing all-indoor, split-mount and all-outdoor configuration options. Exploiting unique Line of Sight (LOS) Multiple Input Multiple Output (MIMO) technology, modulation up to 2048QAM and wider channel bandwidths, ensures Industry leading throughput and spectral efficiency.
Specifications
Specifications N000082L022A
| AC Input Voltage | 110 V |
| Nominal DC Output Voltage | 24 V |
| Maximum Continuous Amperage | .33 A |
| Dimensions(mm) | 190x134x62 |
| Data Connectors | Two x RJ-45 (Data In; Data+Power Out) |
| DC Power Input Connection | Two Wire DC input |
| DC Power Input | -(18-60)V |
| DC Output voltage | 57V |
| Efficiency | ~90% |
| Output Power | 90W |
| Operating Temperature | -45°C to +60°C |
| Humidity | 5%RH to 100%RH (IEC529 IP66) |
| Waterproofing | IP66 |
| Regulatory | EMC: EN 301 489-1, EN 301 489-4, Class A (Europe) FCC 47 CFR, part 15, class B (US) ICES-003, Class B (Canada) TEC/EMI/TEL-001/01, Class A (India) Safety: EN 60950-1 IEC 60950-1 UL 60950-1 CSA-C22.2 No.60950-1 EN 60950-22 UL 60950-22 CSA C22.2.60950-22 |
