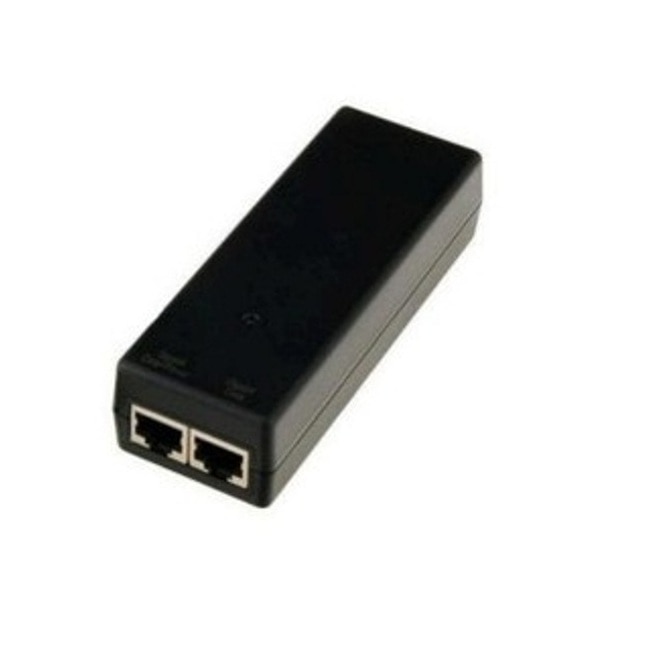

Cambium PTP 820C Indoor AC Poe Injector, 90W

(0)No Reviews yet
  • SKU: N000082L164A
  • Manufacturer: Cambium Networks
  • Spec Sheet: Download

Out of Stock

Call for Availability

Product Information

Cambium Networks N000082L164A

PTP 820C Indoor AC Poe Injector, 90W

PoE Injector Interfaces

DC Power Port 1 ±(18-60)V or ±(40-60)V DC Power Port 2 ±(18-60)V (Optional) GbE Data Port supporting 10/100/1000Base-T Power-Over-Ethernet (PoE) Port Grounding screw



  • Dimensions – 134mm(H), 190mm(W),62mm(D), 1 kg
  • 33°C to +55°C (-45°C to +60°C extended)
  • Standard Input: -48 or +24 VDC • DC Input range: ±(18/40.5 to 60) VDC
  • (+18VDC extended range is supported as part of the nominal +24VDC support)


Specifications N000082L164A

Data ConnectorsTwo x RJ-45 (Data In; Data+Power Out)
AC Power Input ConnectionIEC320 C14
AC Power Input90 to 264 VAC | 47 to 63 Hz
DC Output voltage+57-54VDC (+56V Nominal)
EfficiencyEnergy Level VI
Output Power90W maximum
Hold-up Time10mS Min @ 120VAC 60Hz & Max Load
Operating Temperature-10° C to 40° C
Humidity5% to 90%
WaterproofingIndoor Use
RegulatoryRoHS compliant ESD: EN61000-4-2 Line Surge: EN61000-4-5 Safety: UL 60950-1
