Cambium 1G SFP MMF SX Transceiver, 850nm. -40C to 85C
- SKU: SFP-1G-SX
$38.82
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information

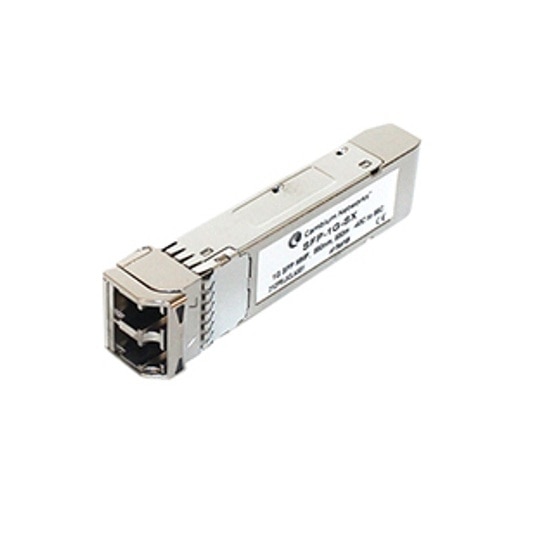

Cambium Networks SFP-1G-SX
1G SFP MMF SX Transceiver, 850nm. -40C to 85C
This SFP transceiver is a high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF.
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features:
- Data-rate of 1.25Gbps operation
- 850nm VCSEL laser and PIN photodetector
- Digital Diagnostic Monitoring
- 550m transmission with 50/125µm MMF
- 300m transmission with 62.5/125µm MMF
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- +3.3V single power supply
- Industrial operating case temperature: -40 to +85°C
- RoHS6 compliant (lead free)
Applications:
- Gigabit Ethernet
- Switch to Switch interface
- Other optical transmission systems
Specifications
Specifications SFP-1G-SX
| Distance | 550m |
| Mode | MM |
| Wavelength | 850nm |
| Connector | Dual LC |
| Format | SFP |
| Compatibility | cnMatrix Switches |
