Product Information

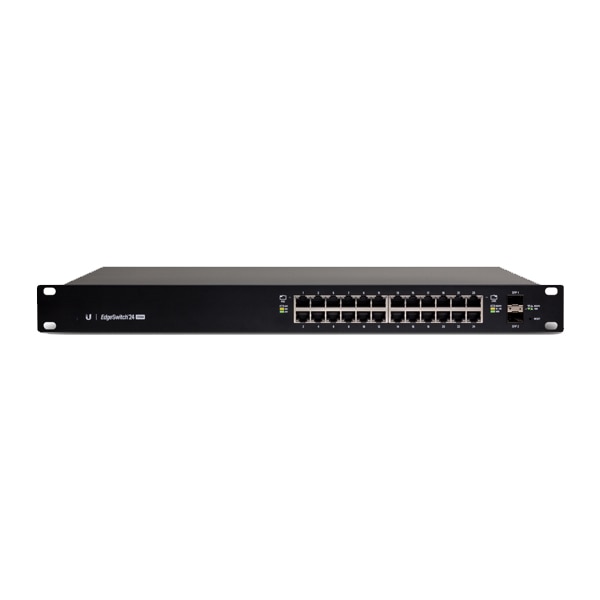

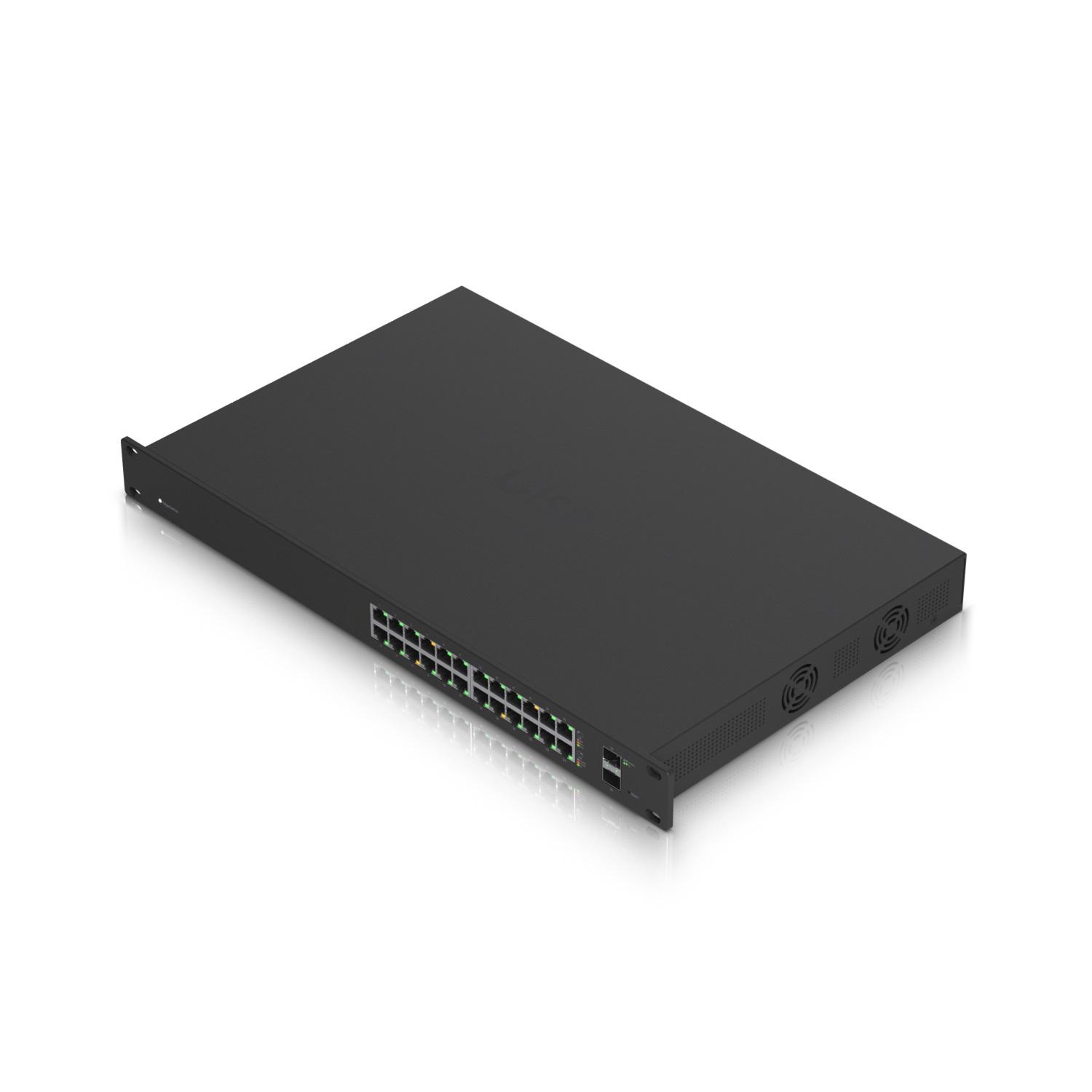

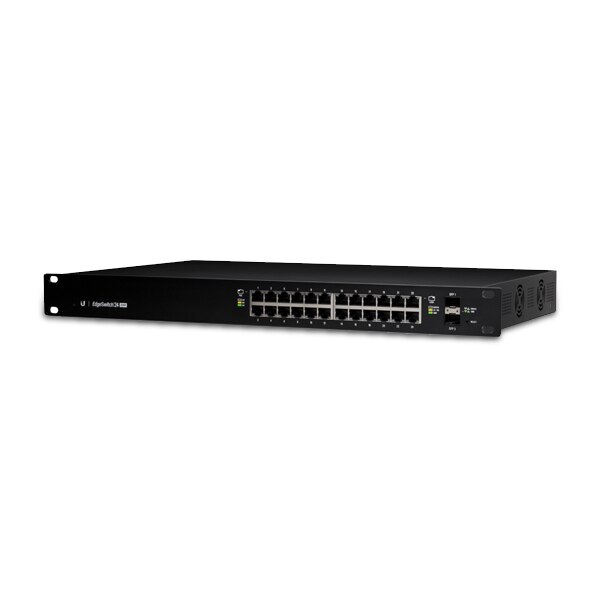

Ubiquiti Networks EdgeSwitch ES-24-250W
Managed PoE+ Gigabit Switches With SFP
Layer 2/3, PoE switch with (24) Gigabit RJ45 ports, (2) SFP ports, and a 250W power supply.
- (24) GbE RJ45 ports
- (2) SFP ports
- 250W total PoE availability
- Rack-mountable, 1U
Build and expand your network with Ubiquiti Networks® EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.
Powerful Enterprise Switch Models
The EdgeSwitch™ delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.
Enterprise-Class Features
The EdgeSwitch™ supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Convenient PoE+ Support
The EdgeSwitch™ features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Specifications
Specifications ES-24-250W
| Dimensions | 485 x 43.7 x 285.4 mm (19.1 x 1.7 x 11.2") |
| Weight | 4.7 kg (10.4 lb) |
| Hardware | |
| Management interface | (1) RJ45 serial port, Ethernet In/Out-Band |
| Networking interface | (24) GbE RJ45 ports (2) 1G SFP ports |
| PoE interface | (24) PoE/PoE+ 2-pair (Pins 1, 2+; 3, 6-) (24) 24V DC passive PoE 2-pair (Pins 4, 5+; 7, 8-) |
| Total non-blocking throughput | 26 Gbps |
| Switching capacity | 52 Gbps |
| Forwarding rate | 38.69 Mpps |
| Power method | 100-240V AC, universal input, 50/60 Hz |
| Power supply | AC/DC, internal, 250W |
| Max. power consumption | 30W (Excludes PoE output) |
| Total PoE available | 250W |
| Max. PoE wattage per portby PSE | PoE+: 34.2W Passive PoE: 17W |
| Voltage range PoE mode | PoE+: 50–57V Passive PoE: 20–27V |
| ESD/EMP protection | Air/contact: ±24 kV |
| LEDs | Ethernet ports: PoE, speed/link/activity SFP ports: speed/link/activity |
| Button | Factory reset |
| Rackmount | Yes, 1U |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
