Green Packet Indoor CAT6 LTE Modem - B41
- SKU: D2K-4051
$140.00
+ $21.25 Tariff
- Manufacturer: Green Packet
- Data Sheet: Download
Product Information
Green Packet D2K-4051 (B41)
Indoor CAT6 LTE Modem (Band 41, DL 4x4MIMO or 2x2 CA, UL CA&64QAM, 1GE+1FW+1LINE(VoIP)+802.11ac)
A high-performance yet cost effective LTE Indoor CPE, D2K provides users with wireless and fixed broadband connectivity.
Specifications
Specifications D2K-4051
| Supported bands | R9, TDD Mode |
| 3GPP Release Version | Release 10/11 |
| UE Category | CAT. 5, CAT. 6, CAT.7 Compliant |
| Host | GCT GDM7243QT |
| Wi-Fi | 2.4GHz 5GHz 11ac optional, with extra cost |

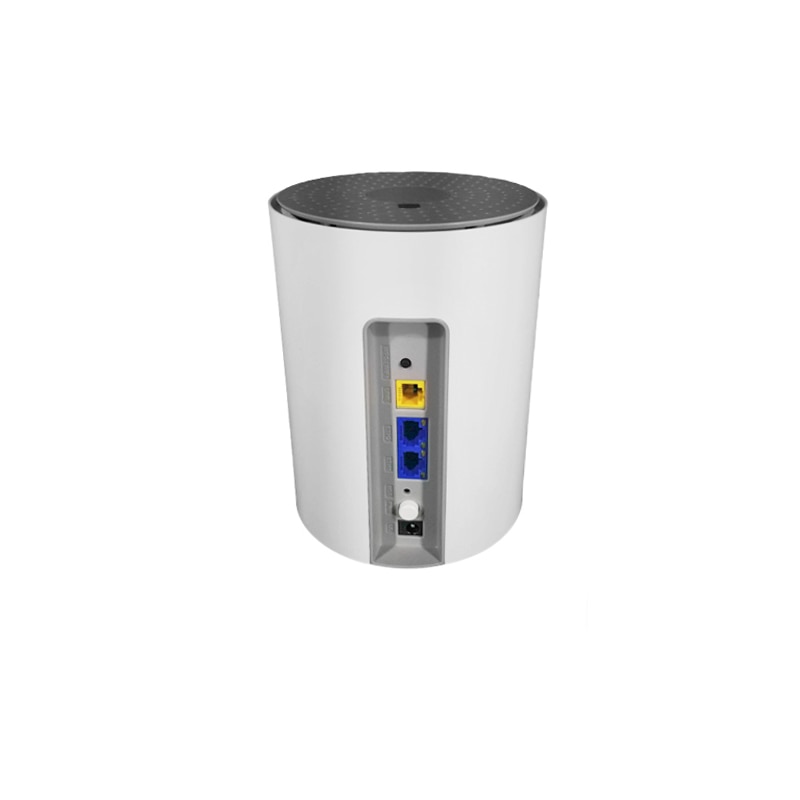

| Ethernet LAN port | RJ-45 giga port x 1. 10/100/1000 RJ-45 FE port x 1. 10/100 Optional. |
| RJ-11 port | RJ-11 port x 1, one line |

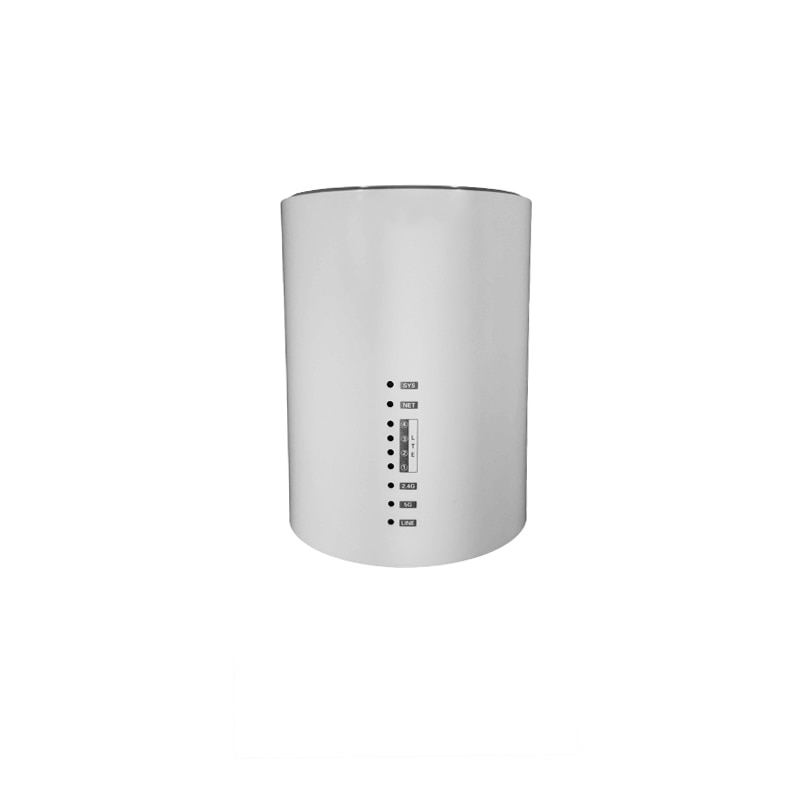

| LED Indicators | SYS, NET, LTE, SIM, 2.4G Wi-Fi, 5G Wi-Fi, ETH1, ETH2, LINE |
| Reset/Reboot button | Tact switch |
| USIM | 1.8V/ 3.0V 2FF USIM |
| LTE Antenna | Built-in 4x4 |

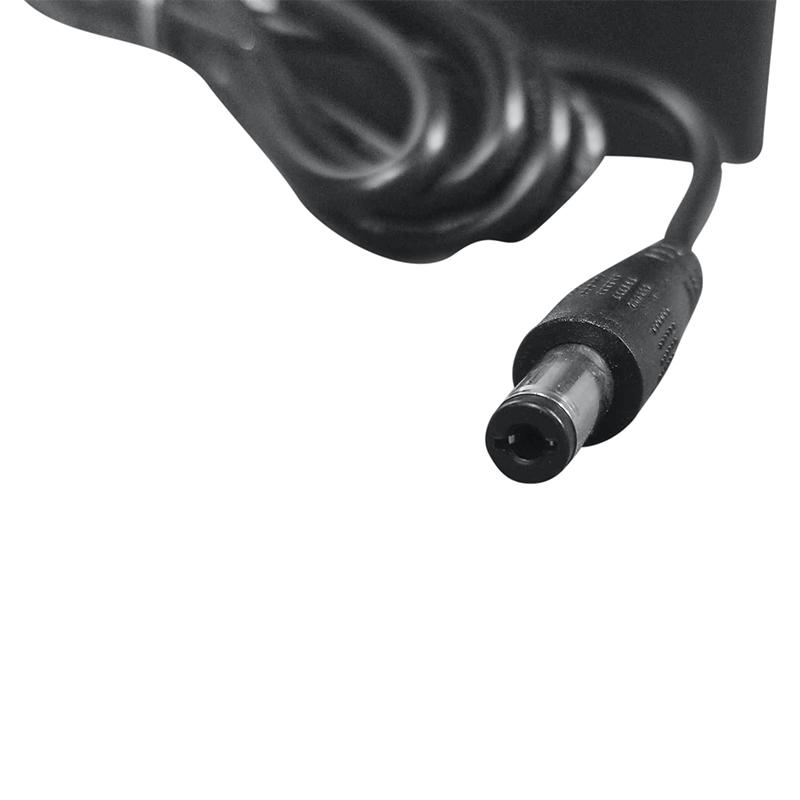

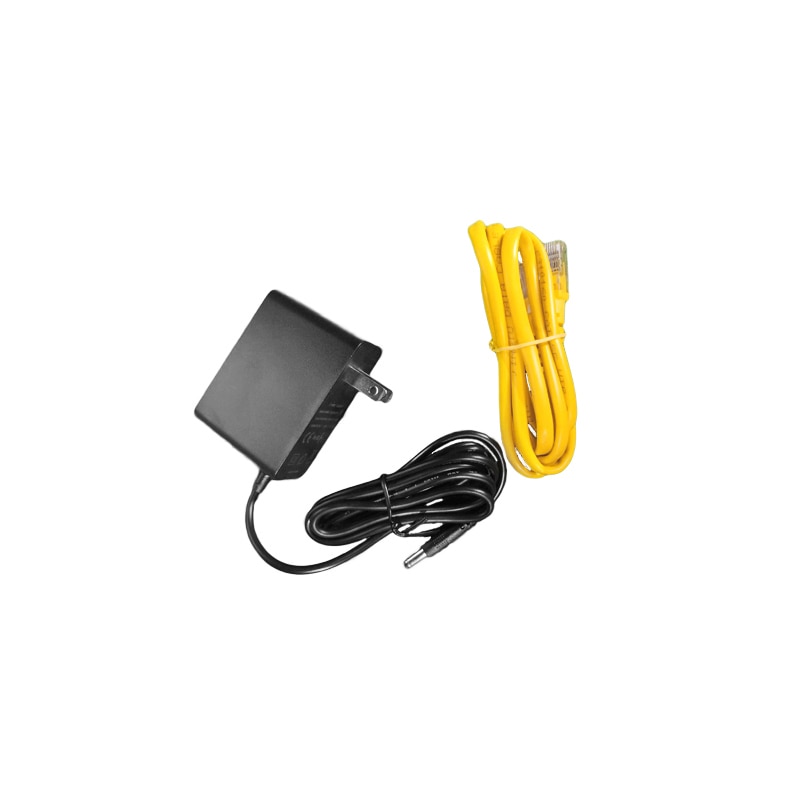

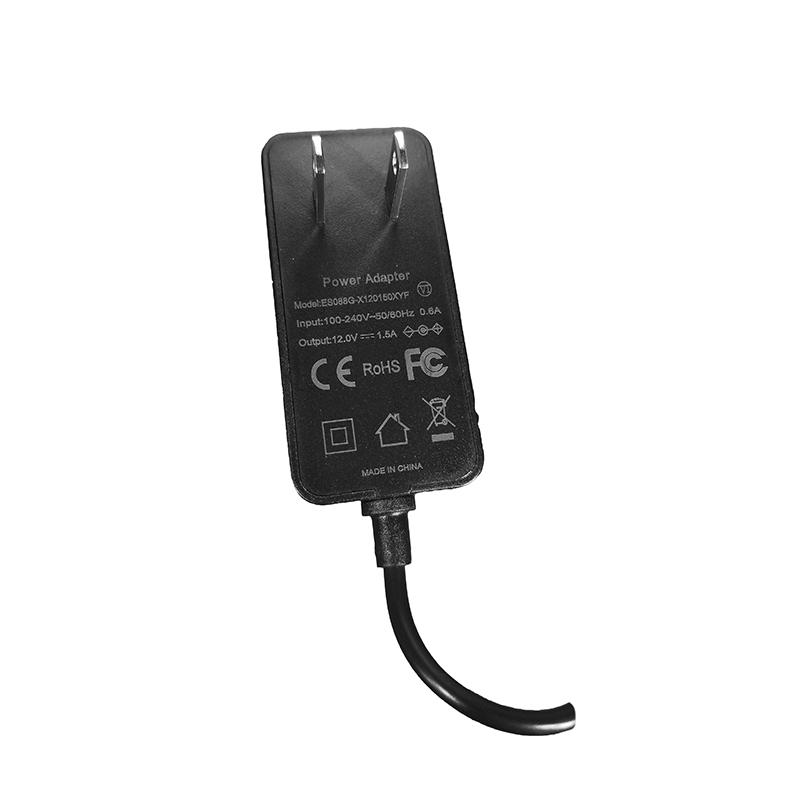

| Power supply | Input: Universal range 100~240VAC Output: 12V/1.5A DC |
| Dimension | 122mm x 122mm x 162mm |
| Color | White |
| Weight | <600g (1.32 lbs) |
| RF Specifications | |
| LTE Supported Bands TD | B1/3/7/8/20/38/40/41, or B1/3/5/7/28B/38/40/41, or B2/4/7/28/40/42, or B42/43/48, or B3-7-20-40-41 |
| LTE Channel Band Width | 10/20 MHz |
| Carrier Aggregation Band width | 20/30/40 MHz |
| Carrier Aggregation | Inter-Band 2CA Intra-Band 2CA |
| DL MIMO | DL MIMO 4 x 4 |
| LTE Output Power @ 25 oC | 23 dBm |
| Standard | Comply with 3GPP Release 11 |
| LTE Antenna Support Frequency | 700 3800 MHz |
| LTE Antenna Gain | 2-5 dBi (B1/2/3/4/5/7/8/20/28B/38/40/41) 5-6 dBi (B42/43/48) |
| Wi-Fi | 802.11b/g/n/ac with Independent AP processor |
| Wi-Fi Users | 32 users |
| Wi-Fi Antenna Gain | 4-5 dBi |
| Wi-Fi Antenna | 2 x 2 MIMO |
| Environment | |
| Operating temperature | 45 oC |
| Storage temperature | -20 60 oC |
| Operating humidity | 90% |
| Storage humidity | 90% |
