IlSintech Swift KF4AV All in One Active Clad Arc Fusion Splicer
US$6,100.00
- SKU: KF4AV
- Manufacturer: ILSINTECH
- Data Sheet: Download
Product Information
IlSintech KF4AV

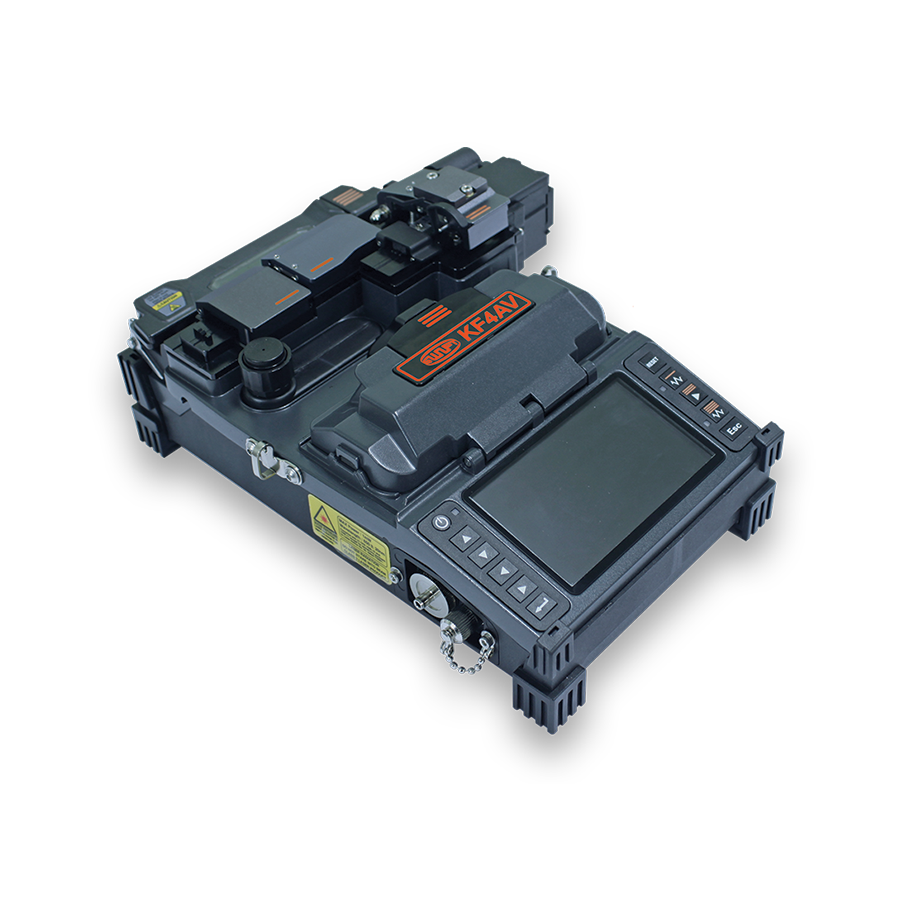

Swift KF4AV All in One Active Clad Arc Fusion Splicer
The Swift All-in-One KF4AV is a top-tier fusion splicer with precise alignment capabilities and the addition of a VFL and InGaAs power meter. The KF4AV systematically performing five major functions including stripping, cleaning, cleaving, splicing and sleeving, this device ensures optimum optical functionality and eliminates the extra time and expenses used to correct errors.
Features:
- Remote maintenance via Internet Integrated 5 function in one unit (stripping, cleaning, cleaving, splicing, protecting)
- Internally-installed Visual Fault Locator (VFL) utilizes a 650nm red laser to locate and visibly display any failure points throughout the cable such as fiber breaks, flawed splices or connectors, and other issues
- Internally-installed InGaAs (indium, gallium, arsenide) power meter can detect the amount of power that is lost during transmission, helping potential errors to be corrected before the cable goes into use
- The All-In-One system provides the most efficient use of space in any work environment compared to traditional stand alone and mechanical splicing solutions
- State of the art thermal stripper saves time and eliminates fiber scratching and damage when compared to traditional hand stripping
- Typical stripping time is 1.5 seconds Single-action cleaver incorporates an efficient self-rotating blade and a built-in fiber chip collector to prevent skin penetration
- One-touch alcohol cleaning pump with easy access for refilling
- High degree of reliability and stable performance even in harsh environments
- Compatible with a full offer of Fusion Splice-On Connectors (FSOC) manufactured to comply to the most up-to-date industry standards
- Ideal for Enterprise, Data Center, Broadband and FTTH network application
Specifications
Specifications KF4AV
| Fiber alignment | IPAAS Clad to Clad Alignment |
| Applicable type of fibers | 0.25mm; 0.9mm; 2.0mm; 3.0mm Indoor cable |
| Fiber count | Single fiber |
| Applicable fiber dimensions | Cladding diameter: 125㎛; Coating diameter: 150㎛~3mm |
| Fiber setting and cleaved length | 0.20in to 0.63in |
| Splicing modes | Splice mode: 300; Heat mode: 100 |
| Typical splice Loss | SM: 0.02dB; MM: 0.01dB; DS:0.04dB; NZDS: 0.04dB |
| Return loss | > 60dB |
| Splicing time | Typical 7sec. with SM |
| Splice loss estimate | Available |
| Sleeve heating time | Typical 13sec. with IS-60 mode, IS-60 sleeve |
| Applicable protection sleeve | 40mm (2.4in); 60mm (1.5in) micro sleeves |
| Storage of splice result | Data: up to 5,000ea; Image: up to 5,000ea |
| Tension test | 1.96N to 2.25N |
| Operating condition | Altitude: 0~5,000m above sea level; Temperature: -10˚C~50˚C (-14˚F~122˚F); Humidity: 0~95%; Wind: 15m/s; non-condensing, dust proof, water proof, shock proof |
| Storage condition | Temperature: -40˚C~80˚C (40˚F~176˚F); Humidity: 0~95% |
| Dimension | 132(W) x 212(L) x 73(H)mm (without rubber protector) |
| Weight | 1.5kg (Including battery) |
| Viewing method and display | 2 AXIS Two CMOS cameras with 109mm (4.3in) color LCD monitor |
| Fiber view and magnification | X/Y: 110X; Max:220X |
| Power supply | Li-ion battery (DC 14.8V, 3400mAh); 100 ~ 240V AC Charger |
| No. of splice cycles with battery | Typical 200 cycles |
| Electrode life | Up to 38,000 splices |
| Blade life | Up to 75,000 fibers |
| Terminals | USB |
