KP Performance 3 GHz 120° ±45 Degrees Slant 14.5dBi (Designed for LTE)
US$349.59 US$367.99
- SKU: KP-3DP120S-45
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information

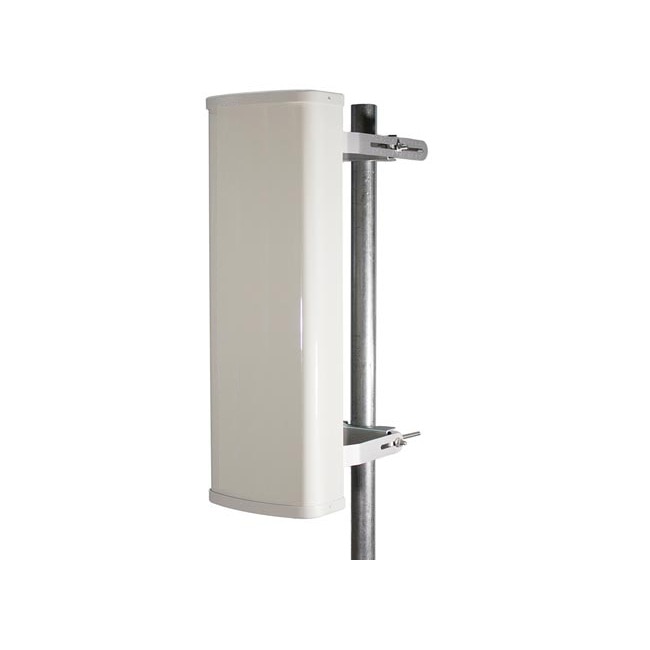

KP Performance KP-3DP120S-45
3GHz 120°±45°Slant 14.5dBi/Designed for LTE
The KP-3DP120S-45 is a 2-port 15.5 dBi sector antenna designed for use in 3 GHz WISP and LTE networks. The unique design of these 3 GHz sector antennas minimizes interference by utilizing a 120-degree gain pattern and ±45-degree slant dual polarization scheme.
The KP-3DP120S-45 sector antenna is designed to provide high-gain and maximum coverage and feature improved front-to-back and pattern roll off that allows for higher spectral efficiency. This sector antennas operates in the popular LTE frequency range of 3.3 GHz to 3.8 GHz and delivers VSWR of 1.7:1 depending on frequency.
Features:
- 2-port sector antenna, 3300-3800 MHz, 120° HPBW
- High gain and slant dual polarization
- Simultaneously maximize coverage and minimize interference
- Ideal for 2-sector frequency-reuse one with LTE equipment
Specifications
Specifications KP-3DP120S-45
| Frequency Range | 3.3 GHz to 3.8 GHz | |
| Polarization Type | 45 Deg. Slant | |
| Gain | 15.5 dBi | |
| Vertical Beamwidth | 7° | |
| Horizontal Beamwidth | 120° | |
| Electrical Downtilt | 3.5° | |
| F/B Ratio | 30 dB | |
| VSWR | 1.7 | 1 |
| Cross Polar Ratio | 25 dB | |
| Port Isolation | 25 dB | |
| Connector Type | 2 x Type N Female |
