KP Performance Ubiquiti® PS-5AC, IS-5AC, IS-M5 Quick Connect Adapter for 5GHz ProLine Parabolic and Horn Antennas

US$‎35.00 US$‎36.84
  • SKU: KP-5PDA-UIS5
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Installation Guide: Download
  • Availability: 823 In Stock    (updated live)
    17 In stock at College Station
    806 In stock at Lewisville TX
US$‎35.00 US$‎36.84

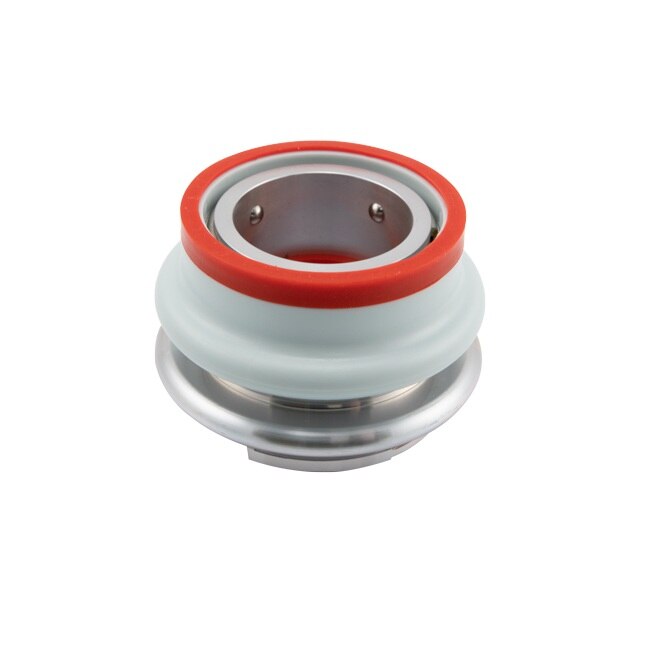

KP Performance KP-5PDA-UIS5

Ubiquiti® PS-5AC, IS-5AC, IS-M5 Quick Connect Adapter for 5GHz ProLine Parabolic and Horn Antennas

The KP-5PDA-UIS5 is a quick-connect adapter for use with KP ProLine 5 GHz Parabolic and Horn Antenna that is designed specifically for the Ubiquiti® PrismStationTM 5AC, IsoStationTM 5AC, and IsoStationTM M5 radios.

The KP-5PDA-UIS5 is a push-in adapter that features simplified installation with patented, quick-connect waveguide technology to the antenna and a twist-snap fit for the radio without any additional cables or taping. The weatherproof adapter is built to withstand challenging environments subject to intense UV, rain, snow, and ice and is highly reliable over a longer product lifetime.

The adapter and radios can be used in point-to-point applications with KP’s 5 GHz ProLine Parabolics or in point-to-multipoint applications with KP’s 5 GHz ProLine Horns. In both applications the antennas will improve link strength and reduce interference, allowing the radio to reach its highest modulation and throughput.

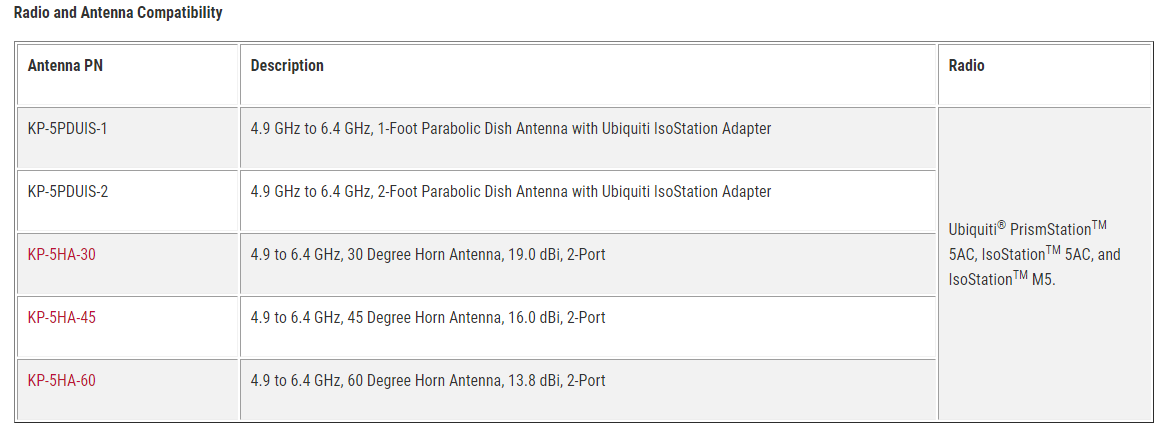

The KP-5PDA-UIS5 is also available as a packaged with ProLine 1 ft. and 2 ft. parabolic antennas.


Features:

  • RF Connection: Quick-Connect Waveguide
  • Compatible Radios: Ubiquiti®: PrismStation™ 5AC | IsoStation™ 5AC | IsoStation™ M5
  • Compatible Antennas: 1 and 2 ft. 5 GHz ProLine Parabolics

Specifications KP-5PDA-UIS5

Compatible Radios Ubiquiti®: PrismStationTM 5AC IsoStationTM 5AC IsoStationTM M5
Compatible Antennas KP®: 1ft and 2ft 5 GHz ProLine Parabolics
Materials Aluminium Alloy, Rubber
Wind Velocity, Survival 201 km/h | 125 mph
Temperature Range -40° to +60° C | -40° to +140° F
Dimension 3.5 in L x 3.5 in W x 2.75 in H
Weight 0.6 lbs
