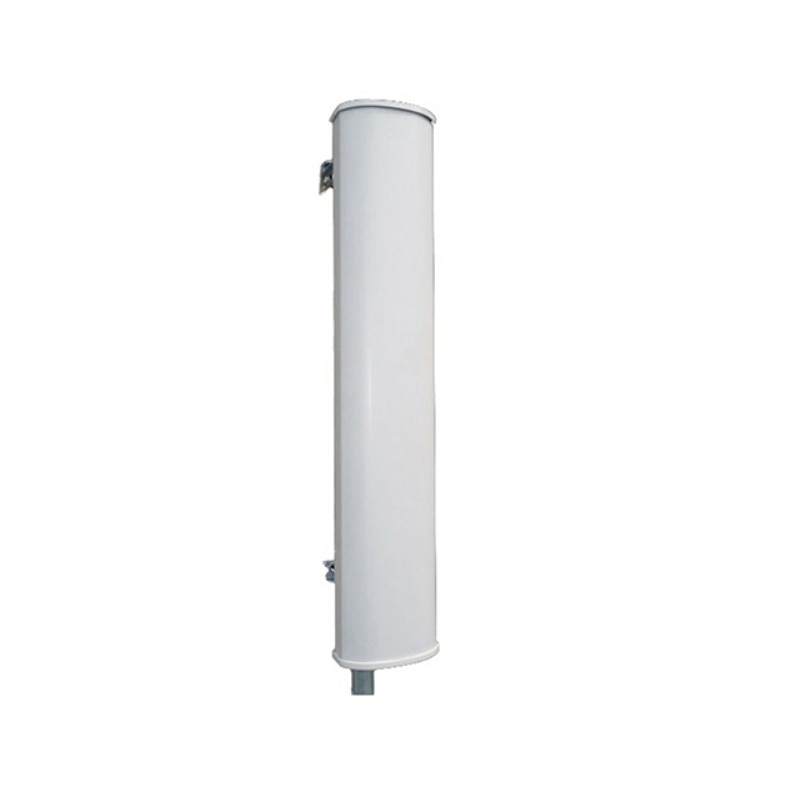

KP Performance 900 MHz, 12.5 dBi, Dual Pol, ±45º Slant 120º Sector Antenna
- SKU: KP-900DP120S-45
$445.60 $495.11
+ $95.31 Tariff
Product Information
KP Performance KP-900DP120S-45
900 MHz, 12.5 dBi, Dual Pol, ±45º Slant 120º Sector Antenna
The KP Performance KP-900DP120S-45 is a 900 MHz Dual Pol 120-degree sector antenna designed for NLOS applications. The 120 degree beamwidth covers a large service area with the capability of propagating through dense trees and foliage. The KP-900DP120S-45 features 12.5 dBi of gain and operates from 902 MHz to 928 MHz. This antenna also features 2 ports and ±45° slant polarization.
Features:
- 902 MHz to 928 MHz dual polarized sector antenna
- 12.5 dBi gain, 120 degree beamwidth
- 2x Type N female integrated connectors
- Heavy duty mounting brackets & small footprint
Specifications
Specifications KP-900DP120S-45
| Frequency Range | 902 MHz to 928 MHz |
| Polarization Type | 45 Deg. Slant |
| Gain | 12.5 dBi |
| Vertical Beamwidth | 13.5° |
| Horizontal Beamwidth | 120° |
| Electrical Downtilt | 1° |
| F/B Ratio | 15 dB |
| VSWR | 1.5:1 |
| Cross Polar Ratio | 13 dB |
| Port Isolation | 25 dB |
| Connector Type | 2 x Type N Female |
| Dimension | 52 in L x 14 in W x 10 in H |
| Weight | 30 lbs |
