KP Performance 2.3-2.7GHz + 3.5-4.2GHz 2-in-1 4-Port Dual Band Sector Antenna

(0)No Reviews yet
  • SKU: KPP-2S3SX4-65
US$‎474.53 US$‎499.50

Out of Stock

57 in stock
University Park Illinois
57 In stock

Product Information

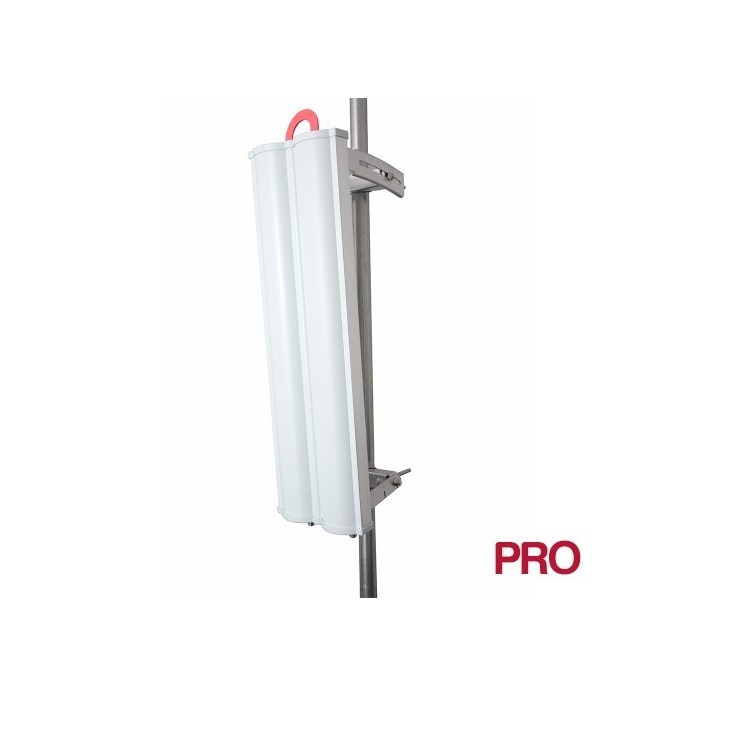

KP Performance KPP-2S3SX4-65

2.3 GHz to 2.7 GHz, 65 Degree + 3.5 GHz to 4.2 GHz, 65 Degree Dual Band Sector Antenna, 4-Port, ±45 Slant (Two Sectors in One Shell)

This ProLine Dual Band Sector Antenna is engineered to deliver high, stable gain over wide bandwidths and suppress side-lobes and back-lobes for mitigating inter-sector interference. These dual frequency sectors combine two individual radiating systems within a single rugged radome. This unique arrangement allows complete dual-spectrum coverage while reducing leased space on the tower and installation costs.

The KPP-2S3SX4-65 is a 65 Degree dual band sector antenna operating from 2.3 GHz to 2.7 GHz and 3.5 GHz to 4.2 GHz. This antenna features gain performance of 17 dBi and 16.8 dBi respectively, 4 ports and ±45° slant polarization with excellent front-to-back of 33 dB and 35 dB.


  • Stable performance over wide bandwidths with flat gain
  • Superior port isolation, cross polarization discrimination, gain, VSWR, and front-to-back
  • Ultra-wide bandwidths for world-wide markets
  • Upper side lobe suppression reduces inter-cell interference
  • Null fill improves coverage near the tower
  • Side-lobe mitigation and improved front-to-back performance help reject interference
  • Integrated hoisting hook for added safety and convenient installation
  • Heavy-duty aluminum brackets with powder coated steel hardware
  • Universal radio bracket with quick-release slot/clip design is compatible with many AP radios
  • Mounts to any size mast from 0.75" to 4.5"


Specifications KPP-2S3SX4-65

Frequency Range2.3 GHz to 2.7 GHz / 3.5 GHz to 4.2 GHz
Polarization Type45 Deg. Slant
Gain17 dBi / 16.8 dBi
Vertical Beamwidth8° / 8°
Horizontal Beamwidth65° / 65°
Electrical Downtilt4° / 4°
F/B Ratio33 dB / 35 dB
Connector Type4 x Type N Female
Dimension 36 in L x 13 in W x 9 in H
Weight 19 lbs
