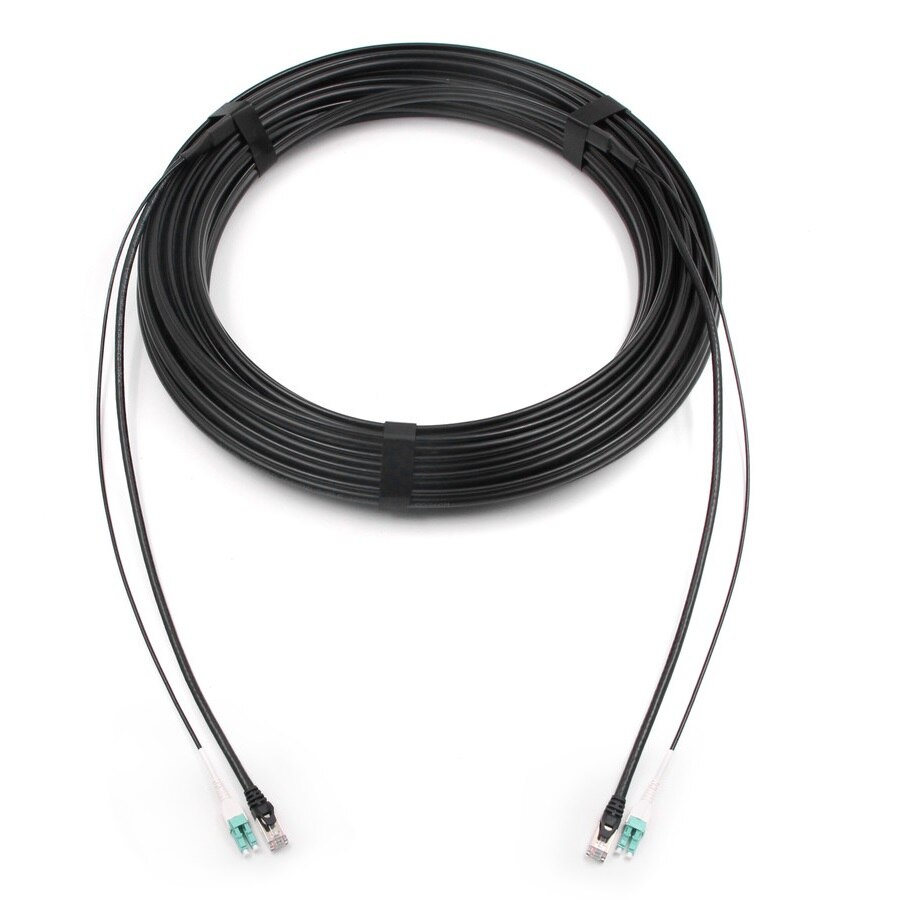

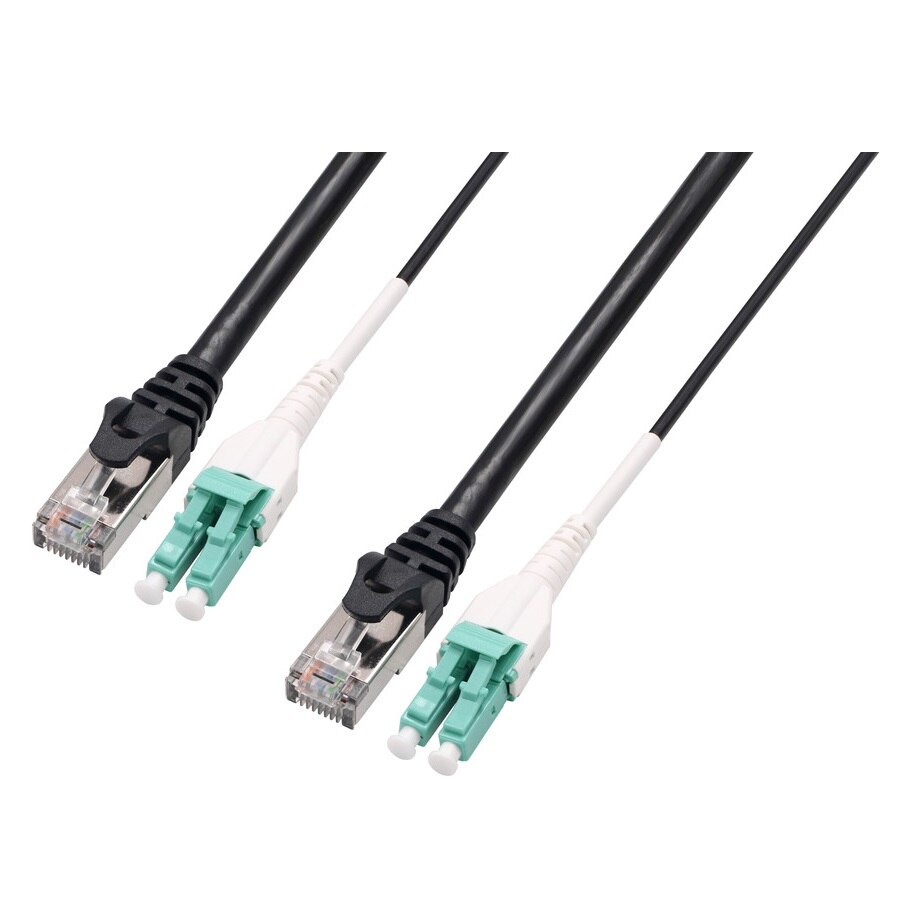

Ethernet + Fiber Hybrid Cable, w/CAT6 SFTP Cable and LC Uniboot OM4 2F Armored Cable, UV-resistance, Black PVC Jacket
- SKU: LSO-ODA-CAT6/OM24-LC2F
$11.42 to $340.78Select options
- Manufacturer: LightSaber Optics
- Data Sheet: Download
Product Information
Ethernet + Fiber Hybrid Cable, w/CAT6 SFTP Cable and LC Uniboot OM4 (Multimode) 2F Armored Cable, UV-resistance, Black PVC Jacket
Specifications
Specifications LSO-ODA-CAT6/OM24-LC2F
| Fiber Cable | |
| Connector: | LC Duplex Uniboot |
| Cable | Armored OM4 3.0mm, 2F, Black (Multimode) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥35dB |
| Min Bending Radius | 10D(Static); 20D(Dynamic) |
| Operating Temperature | -40 TO +70°C |
| Standard | ANSI / TIA / EIA 568 - C.3 |
| Powering | |
| Connector | CAT6 Shielded RJ45 |
| Molded | PVC Molded Boot |
| Cable Type | CAT6A S/FTP |
| Conductor | 26AWG(7/0.16BC) |
| Jacket | PVC UV-Resistant |
| Diameter | φ6.2±0.2mm |
| Standard | ANSI/TIA-568.2-D |
