  • LightSaber Optics 1U Cantilever Fixed Shelf,14 inch Deep, suited for the Wall mount/pole mount outdoor cabinet

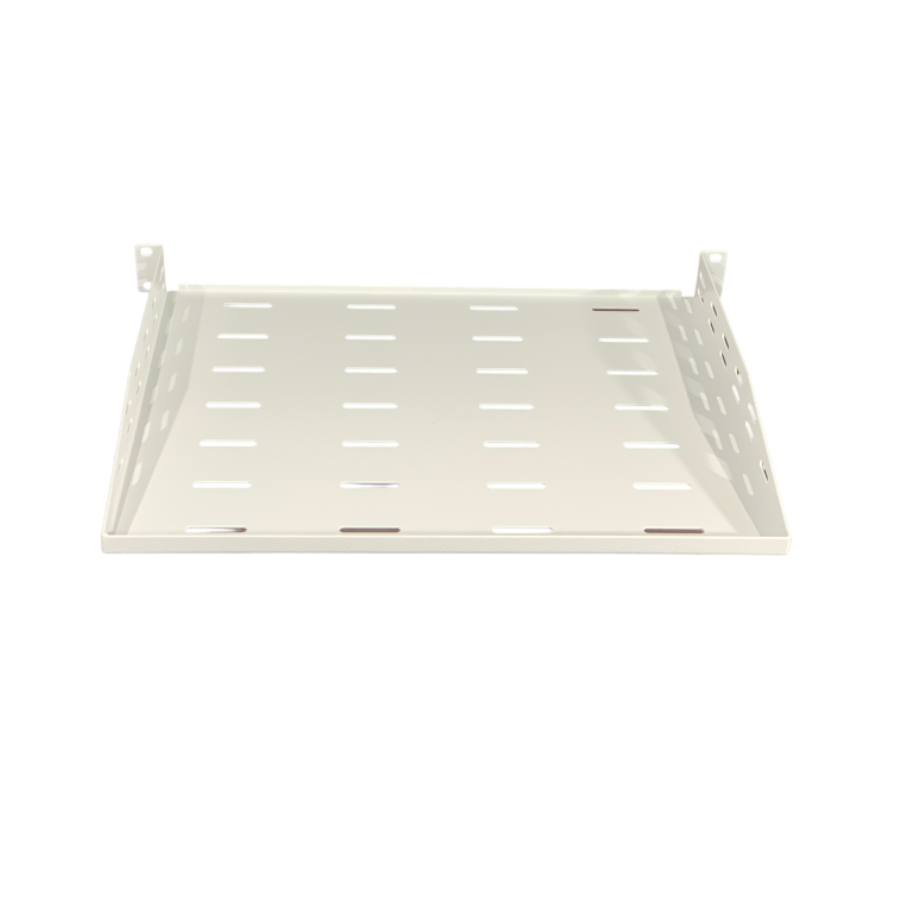

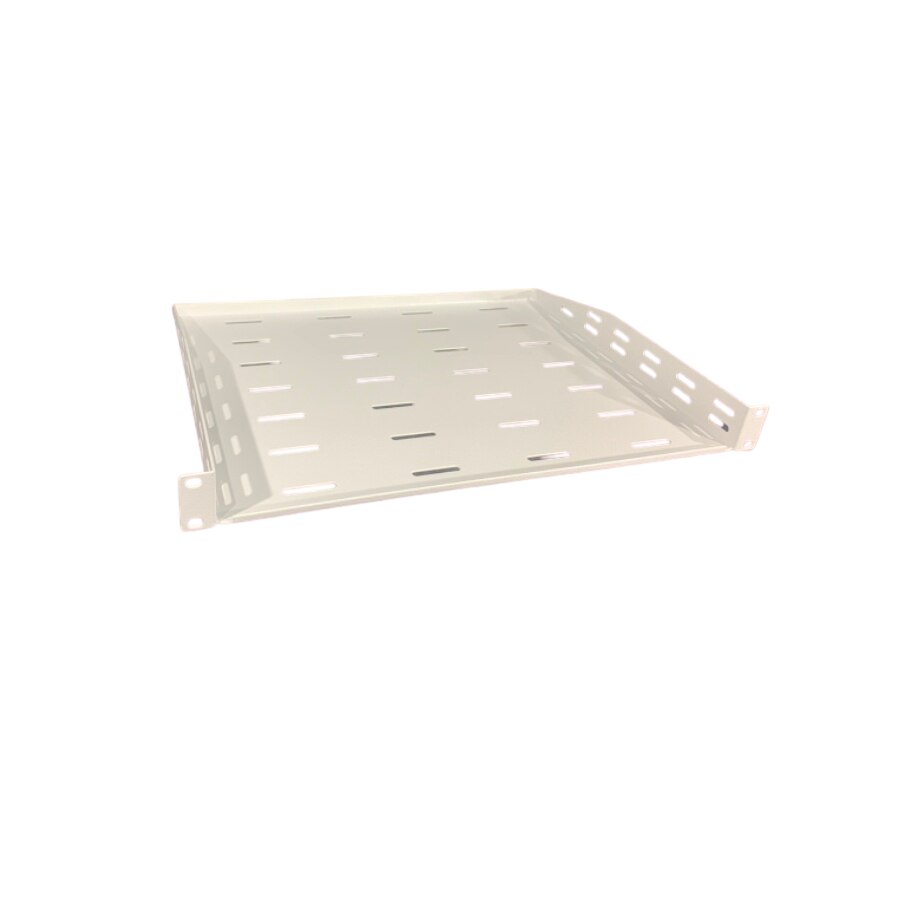

LightSaber Optics 1U Cantilever Fixed Shelf,14 inch Deep, suited for the Wall mount/pole mount outdoor cabinet

  • SKU: LSO-1U-14-SHELF
  • Manufacturer: LightSaber
  • Availability: 11 In Stock    (updated live)
$‎17.49

Specifications LSO-1U-14-SHELF

Physical
Model name LSO-1U-14-SHELF
Protection Glass IP20
Rack Mount Size 1U, 19-inch
Color Grey RAL7035
Material Cold-rolled Steel
Unit Dimension(WxDxH) 19 x 13.78x 1.75 inches
Unit Weight(lbs.) 7.6
Shipping Dimension(WxDxH) 19.49 x 14.37 x 2.17 inches
Shipping Weight(lbs.) 8.8
Certifications
Safety CE
Approvals DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS
Warranty
Product Warranty1 Year

LightSaber Optics LSO-1U-14-SHELF

1U Cantilever Fixed Shelf, 14 inch Deep, Suited for the Wall mount/pole mount outdoor cabinet

1U 14-INCH cantilever/server rack shelf lets you add 10 inches of flat storage space to any EIA-310 compliant server rack or cabinet. The shelf is vented to improve air flow and help lower temperatures in your rack.

LSO-1U-14-SHELF is a 1U cantilever mount fixed shelf. Cantilever shelf supports monitors and other equipment with a 40lb capacity. Shelf is compatible with 2 or 4 post rack enclosure cabinets. The LSO-1U-14-SHELFis 14 inches in depth but can use two shelves back to back to create a deep fixed shelf in 2-Post Open Frame Racks.

Ensure Your Equipment Is Secure

This durable fixed-rack shelf can hold up to 44 lbs (20 kg) of equipment and is constructed using SPCC commercial-grade cold-rolled steel, perfect for audio video equipment.

Make The Most Of Your Space

This 1U cantilever shelf / tray lets you optimize your working space by giving you the ability to mount equipment to your rack instead of taking up desk or floor space. It's perfect for your SOHO (small office, home office) environment, server room or any other location with limited space available.

Customize Your Setup

You can install the 1U vented rack shelf in your rack at any height, giving you a stable surface for placing equipment that's un-mountable or storing your tools. It is the perfect solution for all your server/network, AV and home theater applications.


Features:

  • 1U Cantilever mount,Mounts from the front (Mounting hardware included)
  • 14inch shelf depth
  • Cantilever shelf supports monitors and other equipment
  • Can be used for indoor/outdoor rack cabinet or open frame racks

Also comes with:

  • 4 x M6 cagenuts
