LightSaber Optics 2U Vertical Wall Mount Rack Enclosure - 20 Inch Switch Depth
- SKU: LSO-2UID-20-VRTSW
- Manufacturer: LightSaber Optics
- Drawing Sheet: Download
Product Information
LightSaber Optics LSO-2UID-20-VRTSW
2U Vertical Wall Mount Rack Enclosure - 20 Inch Switch Depth

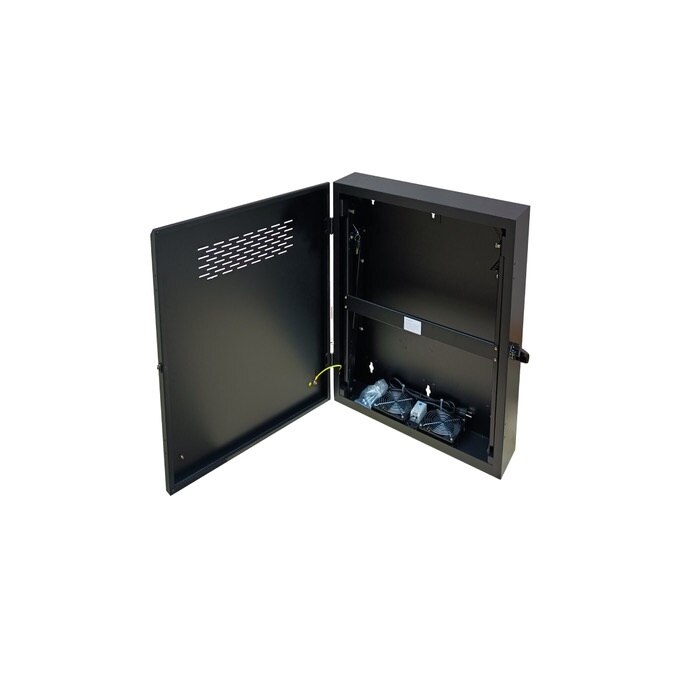

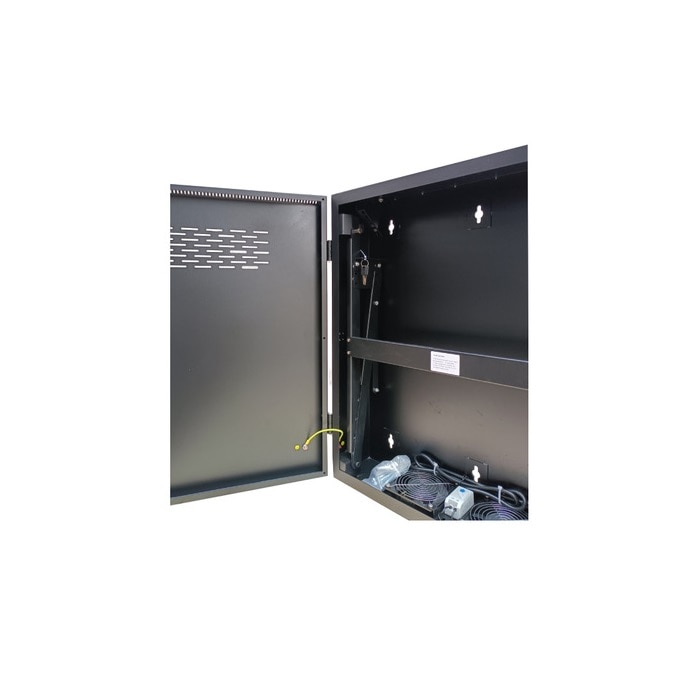

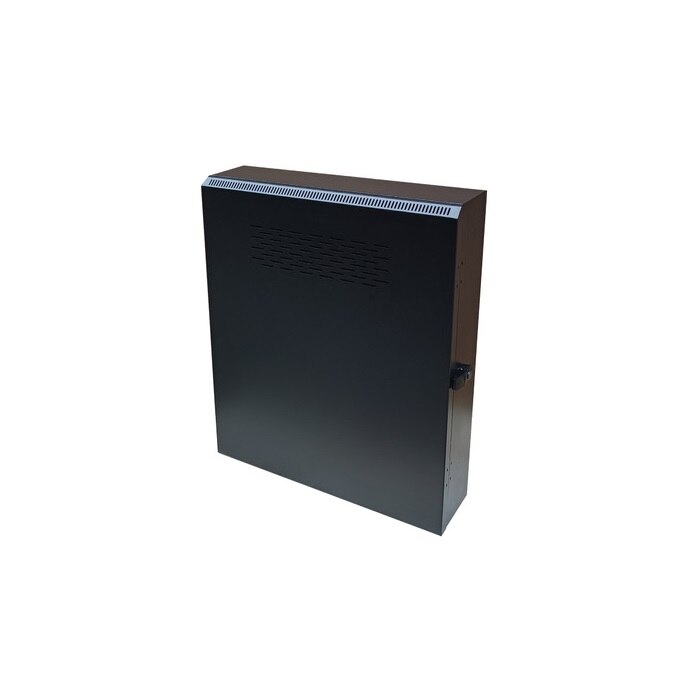

LightSaber Optics 2U Vertical Wall Mount Rack Enclosure is designed to secure and organize your EIA 19" standard rack-mounted servers and networking equipment in accessible but space-challenged locations like a back office, closet, or retail location. By mounting vertically, the low-profile cabinet extends 11.8 inches from the wall while housing equipment up to 20 inches deep, including network switches and patch panels. In addition to 2U of rack space in the primary mounting area, it also includes a 2U mounting bracket at the top of the enclosure for patch panels.
This network enclosure ships fully assembled and sets up easily in a variety of locations. These low-profile enclosures deliver anti-theft locks for security, cable management punchouts for trouble-free maintenance, ventilation to keep equipment from overheating, and a dedicated location for mounting a patch panel. This slide out 2U wall mount rack enclosure has a dual fan kit pre-installed on the bottom for cooling.
Features:
- Fully assembled
- Vertical Wall mounting helps you conserve valuable floor space

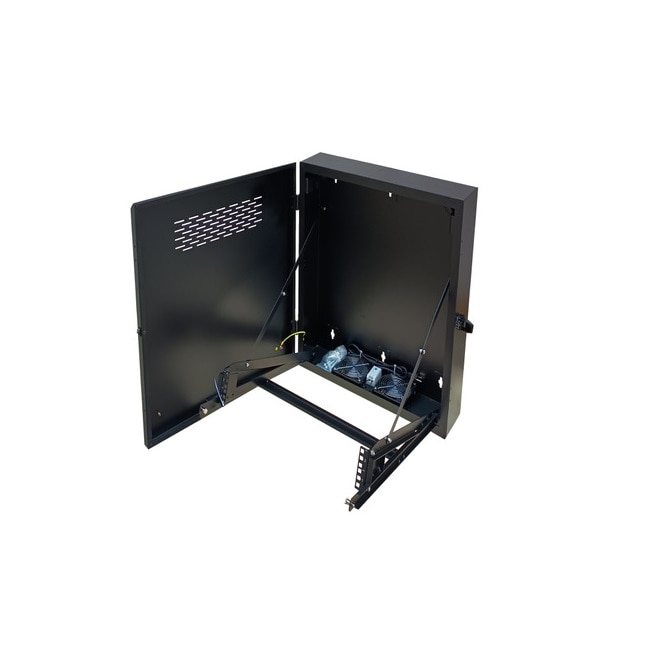

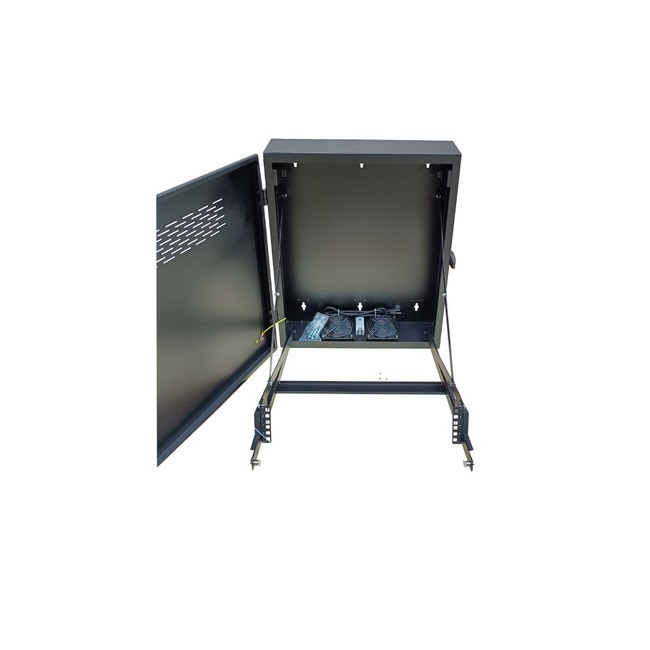

- Slide-out 19inch 2U equipment rails and 2U space for patch panels
- Secures 2U of 19 in. rack equipment up to 20 in. deep.
- AC110V 60Hz Cooling Fan Unit (2pcs) on the bottom(with temperature controller)
- Grounding wires
- Knockout cable entry holes on the top and bottom
It also comes with the following:
- 6 x Exposure Bolts
- 10 x M6 cage nuts
- 2 x Keys
Specifications
Specifications
Protection Class | IP20 |
Cabinet Type | Wall-Mount |
Color | Black RAL9005 |
Material | Cold-rolled Steel |
Unit Dimension(WxDxH) | 23.62x 6.57 x 28.74 inches |
Unit Weight(lbs.) | 44.08 |
Internal Depth (Rail to bottom) | 20.7 inches |
Rail to Rail Depth | N/A |
Shipping Dimension(WxDxH) | 27.96 x 8.66 x 31.89 inches |
Shipping Weight(lbs.) | 53.56 |
Electrical | |
Cooling | AC110V Cooling Fans x 2 (with tem. controller) |
Certifications | |
Safety | CE |
Approvals | DIN41491, DIN41494, EIA/ECA-310-E, RoHS |
Warranty | |
Product Warranty | 1 Year |
