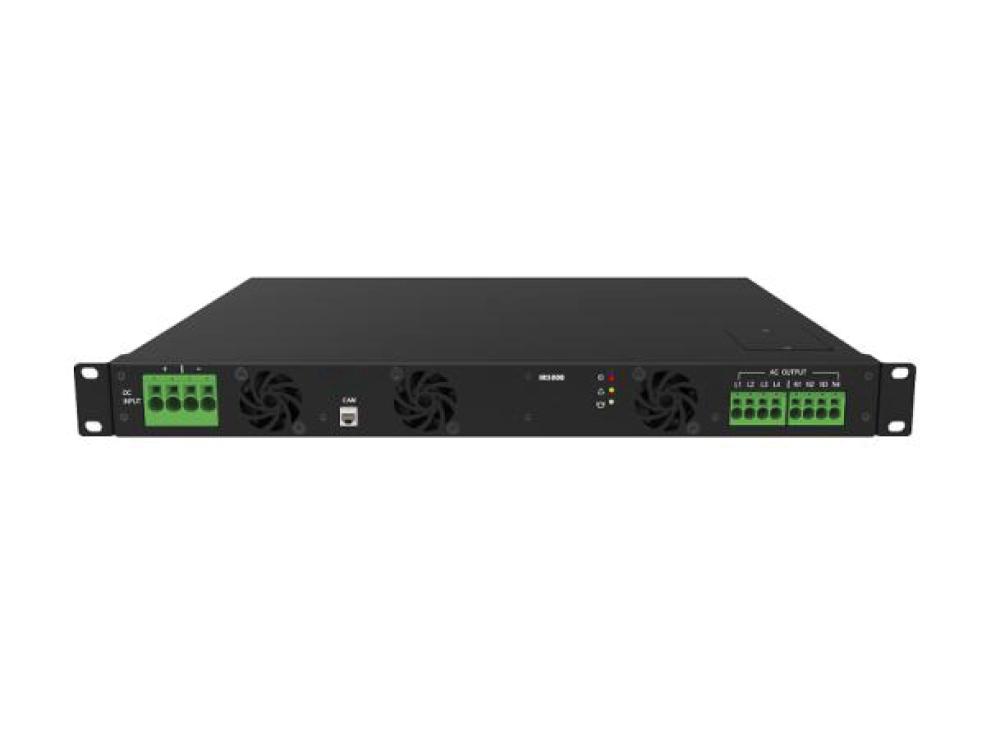

LightSaber Optics 3000VA Inverter
- SKU: LSO-3000VI-EU
$1,215.59
Product Information
LightSaber Optics LSO-3000VI-EU
LightSaber 3000VA Inverter Europen 50Hz
The LSO-3000VI combines advanced switching technology with digital control. The utilization of this technology results in a very high power density and low weight. With a state-of-the-art control solution it provides an excellent functionality and several protection features.
Features:
- Excellent overall efficiency and high regulation speed.
- Hot-Plug-in” Design with backplane connection.
- Perfect fault alarm and protection functions.
- High power density.
- 485-BUS Interface
- Temperature-controlled fan cooling.
- Excellent sinusoidal output.
Specifications
Specifications
| Working temperature | -40°C~+60°C |
| Storage temperature | -40°C~ +75°C |
| Humidity RH | ≤95% RH |
| Input Data | |
| Nominal input voltage | 48Vdc |
| Nominal input current | 47ADC@48VDC |
| Input voltage range | 44~ 60VDC; 40~ 44VDC (output power 1500W) |
| Output Data | |
| Output frequency | 60±1%Hz (50 Hz optional) |
| Synchronization range | 58 to 62 Hz/48 to 52 Hz |
| Typical efficiency | 90% |
| Nominal output voltage | 115VAC -5%, adjustment range: 108 to 132 VAC |
| THD | ≤3% at linear load |
| Overload capability | 120% for 10 sec |
| Nominal output power | 2000W |
| Inverter other Specifications | |
| Protective function | Input over-voltage, under-voltage； overload, short circuit； over-temperature |
| LED signalling | Operation (green), Vo OK (green), Alarm (red) |
| Isolation | 1.5kVac-input to output 1.5kVac-input to earth 1.5kVac- output to earth |
| Cooling-down method | Speed air cooling |
| Communications interface | 485-Bus, proprietary protocol |
| Max. installation altitude | 1500 m |
| Dimensions mm （W×D×H） | 17.32" x 12.99" x 1.73" (440×330×44) |
| Weight（kg） | 9.3 Lbs (4.2kg) |
