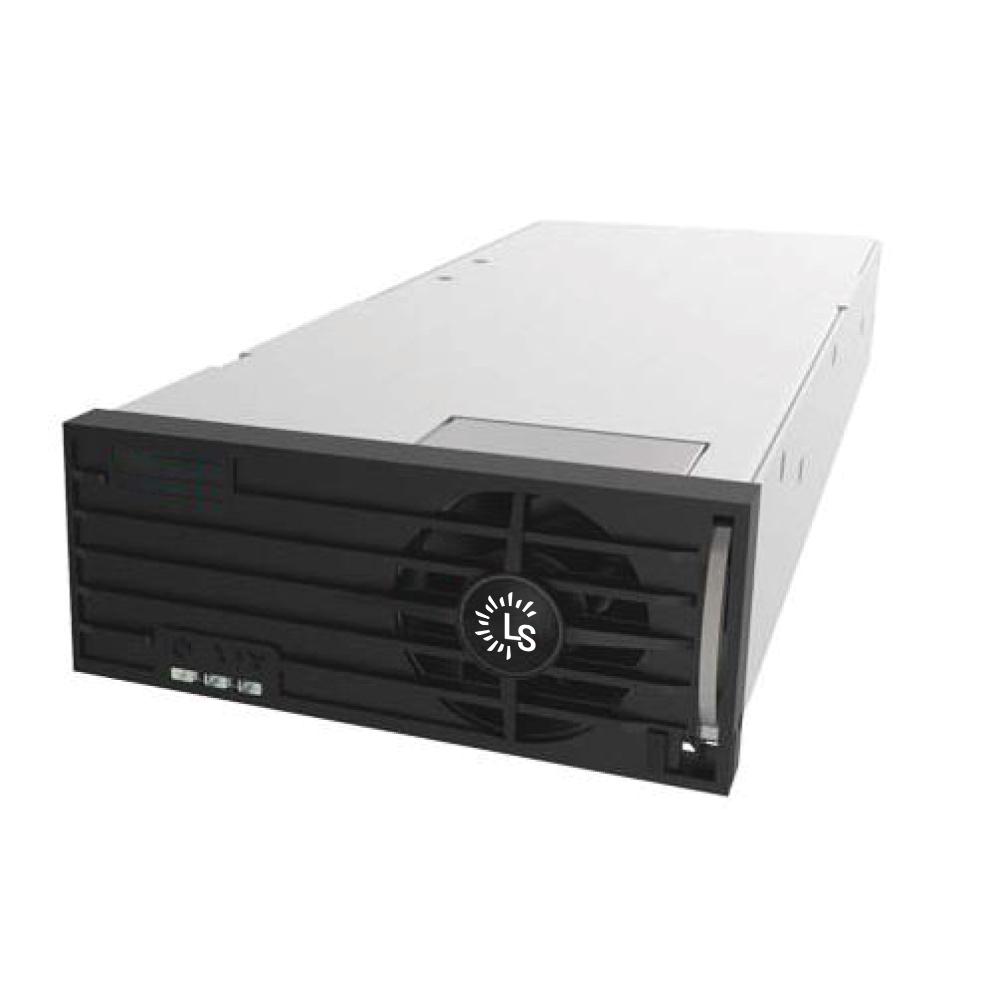

LightSaber Optics 48V 3000W Rectifier
- SKU: LSO-48R3000
$102.54 $299.00
Product Information
LightSaber Optics LSO-48R3000
48V 3000W Rectifier R483000 Series
SNMP MIB Download
Features:
- Nominal AC input: 85Vac～300Vac.
- Wide Working Temperature range：-40°C～+85°C.
- Active power factor correction：PF≥0.99.
- Fan speed control design.
- Output terminal with hot plug connector.
Specifications
Specifications
| Environmental Requirements | |
| Working temperature | -40°C~+85°C |
| Storage temperature | -40°C~ +80°C |
| Humidity RH | ≤95% RH |
| AC input | |
| Voltage（V） | 85Vac ~ 300Vac（*） |
| Current（A） | ≤18A |
| Frequency | 45Hz ~66Hz |
| Power factor | ≥0.99 |
| DC output | |
| Efficiency | >96% Peak |
| Voltage range | -42.0V to -58.0VDC |
| Rated Power | 3000W |
| Load regulation | ≤±0.5% |
| Voltage regulation factor | ≤±0.1% |
| Noise voltage (mV） | ≤2（Balance weight）, ≤200（Peak-peak）, ≤50 （3.4~150kHZ） ≤20 (0.15~30MHZ) |
| Error in load sharing | ≤±5% |
| Precision of voltage regulation | ≤±0.6% |
| Reliability | |
| MTBF | >500,000hours |
| Lightening protection | YD 5098-2005 5KA |
| Protective function | Input overvoltage, under-voltage, output overvoltage, overload, short circuit, over-temperature and fan failure |
| Cooling-down method | Speed air cooling |
| Dimensions mm（W×D×H） | 106×286×42.5 4.17"x11.25"x1.67" |
| Weight（kg） | 1.9kg (4.18 lbs) |
