Product Information
LightSaber Optics LSO-AC300W-110V
AC110V MINI-Type 300W Air Conditioner Unit, fit for 12U Outdoor Enclosure (w/o Heat Function)
This Air Conditioner Cooling Solution can be widely used in enclosed area for climate control, such as wireless communication cabinet, battery cabinet,industry control cabinet etc. AZE's air conditioners are designed to cool your electronic and electrical controls, instruments, computer terminals, printers, telecommunications equipment, surveillance devices, cameras, laser and optical equipment and many other electronics in variety of environments. Our electronic cabinet cooling systems are designed for use with a wide range of enclosures and transit cases. Models are available for both indoor and outdoor use in AC power configurations. Coolers feature corrosion-resistant stainless steel construction.
This AC air conditioner is actively cooling with compressor, which will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet, avoiding problems from using fan. The inside cabinet can be maintained at an ideal temperature for electrical components which effectively guarantees the stability of the electronic equipment and improves the reliability of the whole system.
Features:
- AC110-120V power supplied
- Compact structure design,easy maintenance
- Widely used for outdoor telecom cabinets, battery cabinets,electric cabinets and industry control cabinets,etc
- NEMA 4X Rated

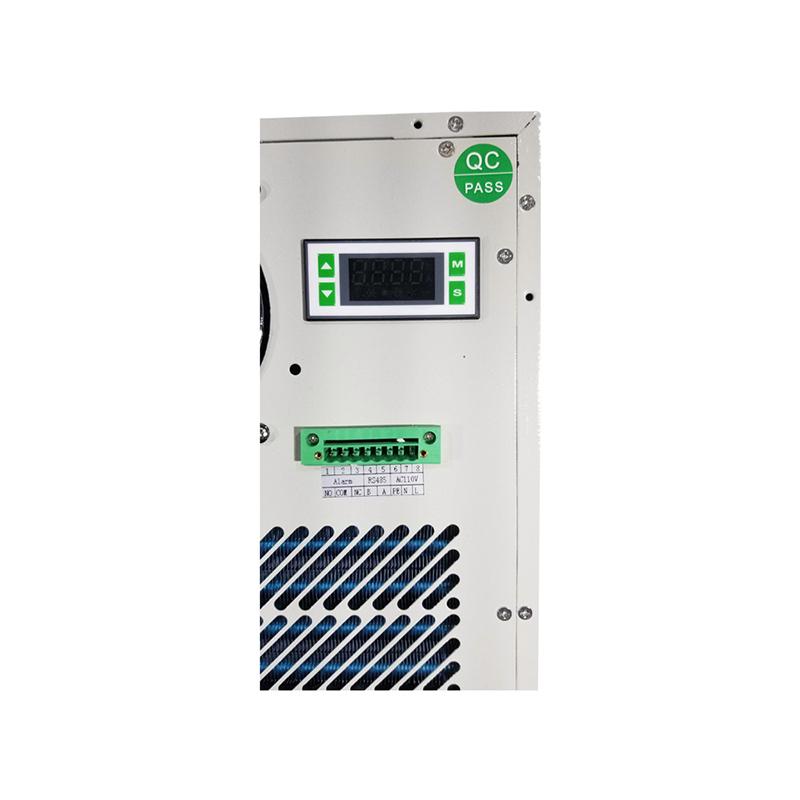

- Multiple self-protection design & visible monitoring interface, RS485 communication port (MODBUS-RTU protocol);
- LED display, all the settings can changed at the field
- Anti-theft design, without the cowling.
- Digital temperature controller and high precision of temperature control
Also comes with:
- 3 Meter gasket
- 1 bottle silicone sealant
- 1.5meter waterpipe,joint and collar
- 1x Power cord with US plug
- 10 x M4*8 screws and nut
- 1 x manual
Specifications
Specifications LSO-AC300W-110V
Model | LSO-AC300W-110V |
Mounting Method | Side Mounted |
Power Supply | 110~120VAC±15% 60Hz |
Cooling Capacity(@L35/L35) | 300W (1023 BTU/h) |
Rated Power(@L35/L35) | 220W |
Refrigerant | R134a |
Working Temperature Range | -5℃~+55℃ |
Noise Level(dB(A)) | 56 |
IP Grade | NEMA 4X |
Surface Treatment | Outdoor type powder coating Standard color:RAL7035 |
Heater | Optional |

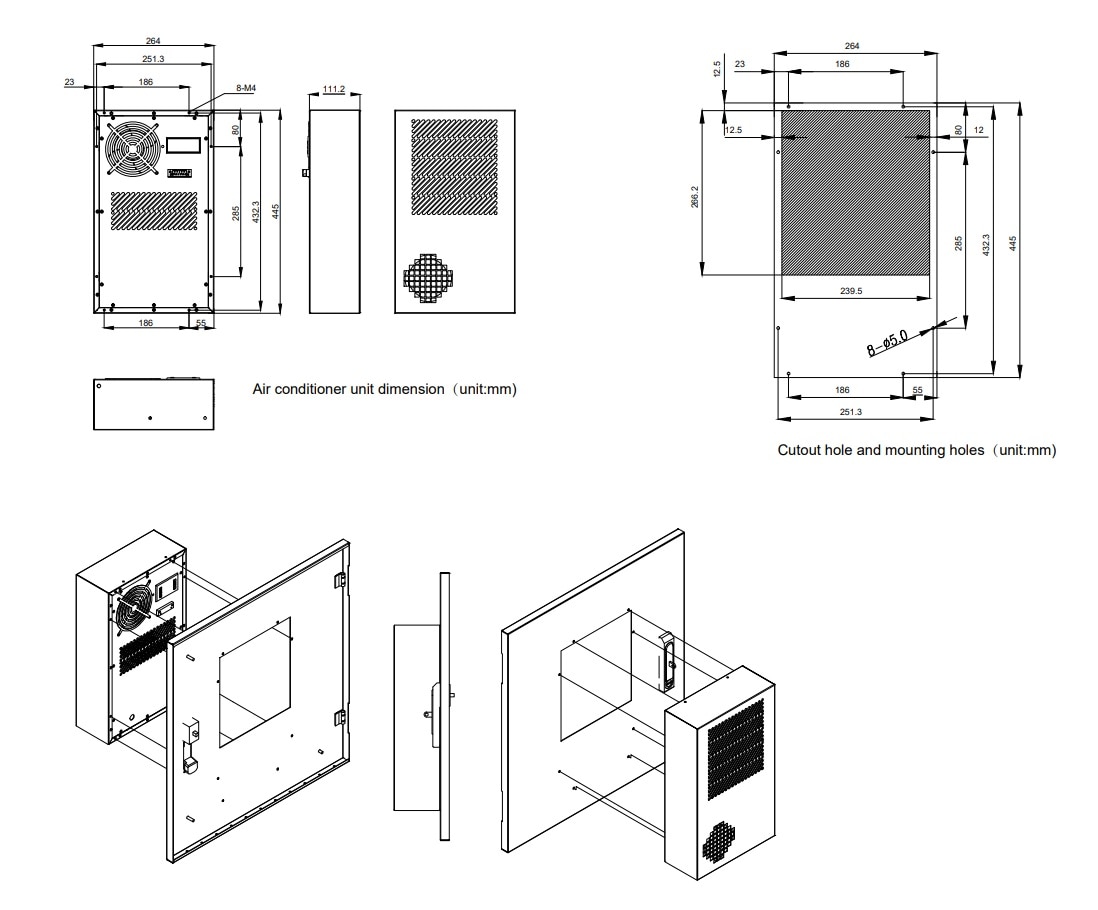

Unit Dimension(WxDxH) | 10.39 x 4.38 x 17.52 inches |
Unit Weight(lbs.) | 26.45 |
Shipping Dimension(WxDxH) | 12.60 x 7.28 x 20.47 inches |
Shipping Weight(lbs.) | 33.06 |
