LightSaber Optics 1U Fixed Battery Shelf, Compatible with 23.6“ Deep Outdoor Enclosure, Grey Color
- SKU: LSO-BATSHELF
$28.00 $42.00
- Manufacturer: LightSaber Optics
- Data Sheet: Download
Product Information
LightSaber Optics LSO-BATSHELF

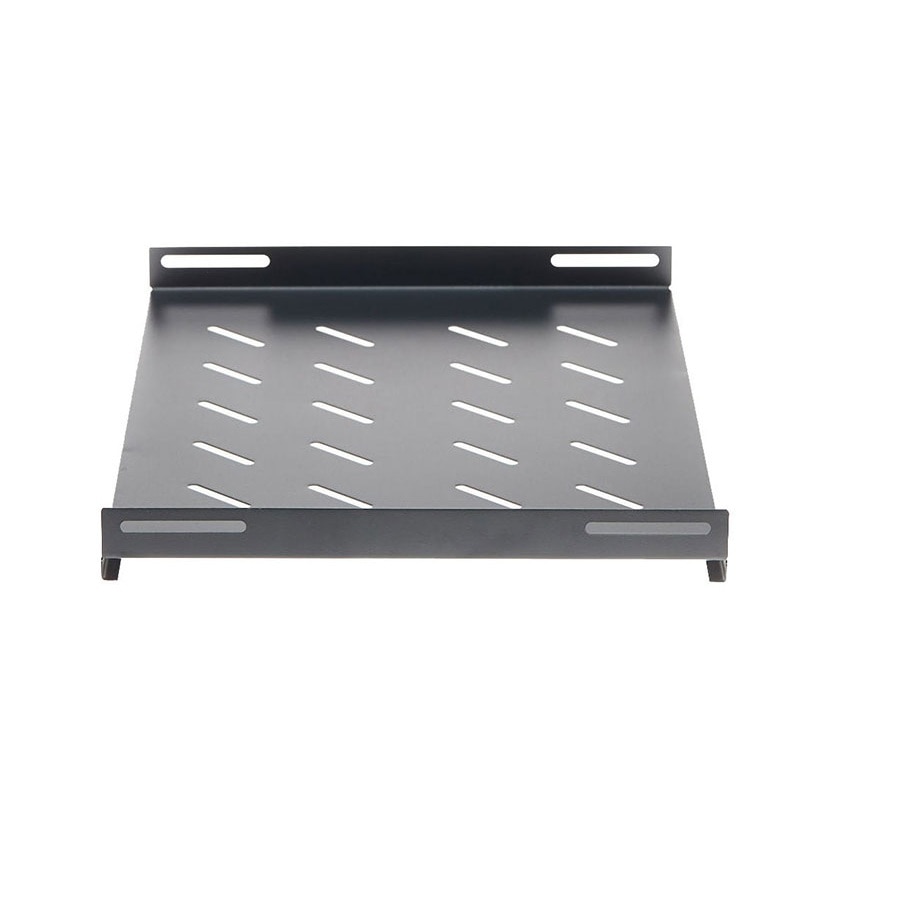

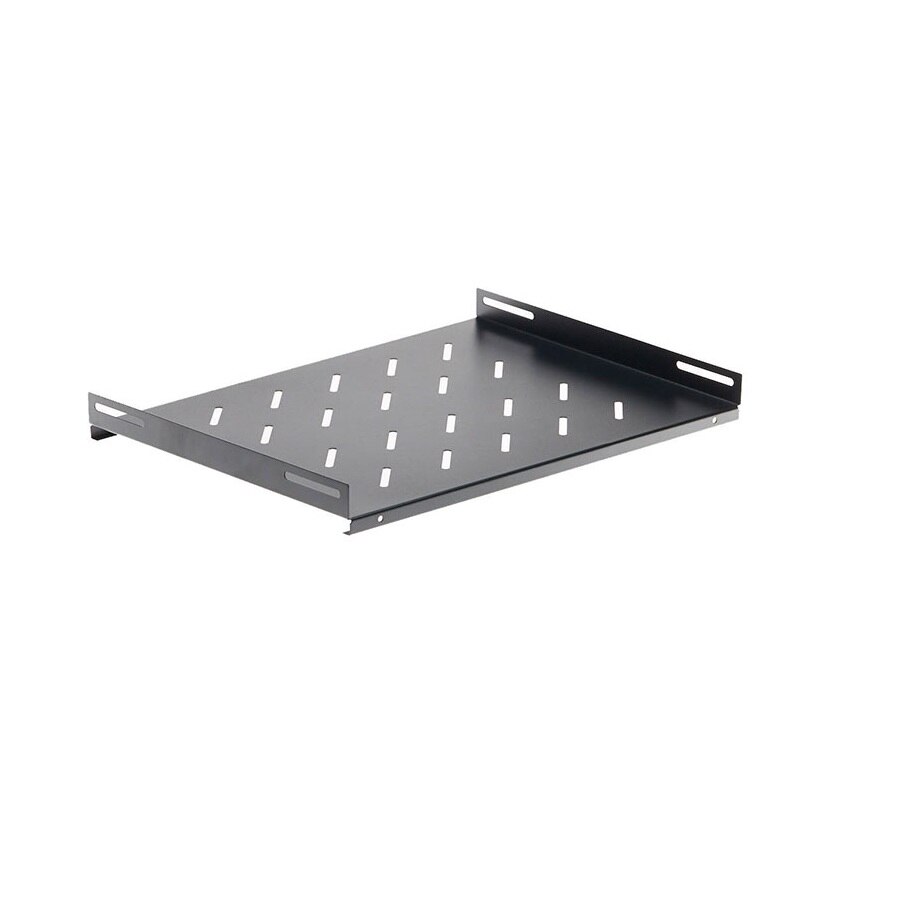

1U Fixed Battery Shelf, Compatible with 23.6“ Deep Outdoor Enclosure, Grey Color
This is 1U 18-INCH 4Point Rack-Mount Fixed Shelf are perfect for storing and organizing your non-rack mountable equipment on your rack. It has slotted venting to improve air flow and to help prevent overheating of your equipment.
Features:
- 1U fixed battery shelf, side-mount option (Mounting hardware included)
- 18 inch shelf depth
- Can be used for indoor/outdoor rack cabinet
Also comes with:
- 4 x M6 cagenut
Compatible Cabinets:
- LSO-12UOD-600600-DHPM
- LSO-12UOD-600600BAT15
- LSO-12UOD-600600PM
- LSO-12UOD-600600PM-ALU
- LSO-12UOD-650600PM-AC300W-H
- LSO-14UOD-650-600PM-HE40W-ALU
- LSO-18UOD-650600-AC400W-H
- LSO-6UOD-600600PM
Specifications
Specifications LSO-BATSHELF
| Physical | |
| Model name | LSO-BATSHELF-18U |
| Protection Glass | IP20 |
| Rack Mount Size | 1U,side mount |
| Loading Capacity(lbs.) | 110 |
| Color | Grey RAL7035 |
| Material | Cold-rolled Steel |
| Unit Dimension(WxDxH) | 18.74 x 17.71 x 1.72 inches |
| Unit Weight(lbs.) | 5.29 |
| Shipping Dimension(WxDxH) | 19.53 x 18.5 x 2.17 inches |
| Shipping Weight(lbs.) | 5.73 |
| Certifications | |
| Safety | CE |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS |
| Warranty | |
| Product Warranty | 1 Year |
